When investing in a metal roofing system, one of the most critical decisions a homeowner or contractor must make is selecting the right panel profile. Standing seam metal roofs are prized for their durability, sleek appearance, and energy efficiency. However, choosing the correct profile is not a one-size-fits-all process. Climate plays a pivotal role in determining which standing seam profile is most appropriate for a building’s location.

Understanding Standing Seam Profiles

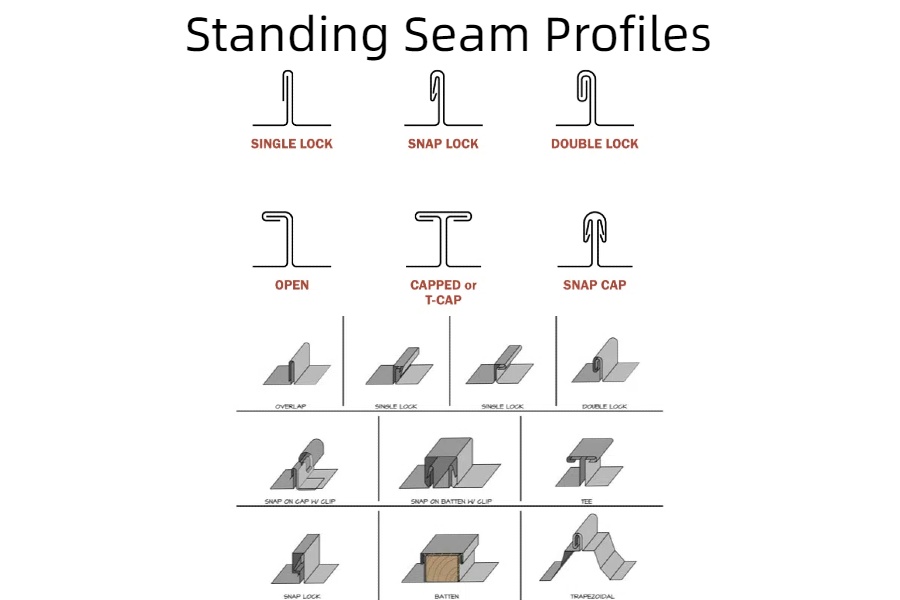

Standing seam panels feature raised vertical seams that interlock or snap together. These profiles can be mechanically seamed or snap-locked, and they come in a variety of widths and seam heights. Common profiles include:

• Snap-lock systems

• Mechanical seam systems (single or double lock)

• Batten seam

• Nail strip/pan-formed systems

Each of these profiles offers distinct benefits and is better suited to certain weather conditions.

Snowy and Cold Climates

In areas prone to heavy snowfall and freezing temperatures, such as northern Europe, Canada, or the northern United States, double-lock mechanical seam panels are the gold standard. These panels are mechanically seamed together, creating an exceptionally watertight bond that resists ice damming and water infiltration caused by melting snow. The double-lock system also handles snow loads effectively and maintains performance during freeze-thaw cycles.

Seam height is another consideration. Higher seam heights, such as 1.5 inches, provide greater water protection and structural stability under snow loads. Additionally, snow retention systems should be easily attachable to the profile without compromising the roof’s integrity.

Hot and Humid Climates

In tropical and humid climates, such as Florida, Southeast Asia, or coastal regions, corrosion resistance becomes a priority. While the metal material is crucial (e.g., aluminum or galvalume), the panel profile also affects long-term durability. Snap-lock profiles with hidden fasteners are ideal because they reduce the number of exposed areas vulnerable to rust.

These profiles also allow for thermal movement, which is important in high-temperature areas where metal expansion and contraction are significant. Using a floating clip system with snap-lock panels allows the metal to move freely, reducing stress and extending roof life.

High Wind and Hurricane-Prone Regions

Areas prone to hurricanes or strong wind events, such as the Gulf Coast or Caribbean islands, require profiles that can withstand uplift forces. Mechanically seamed panels again take the lead here. Once locked in place, these seams resist uplift far better than snap-lock versions.

For additional security, continuous clips can be used with standing seam panels to increase wind uplift resistance. Engineering tests and certifications like UL 580 and ASTM E1592 are often used to determine a panel’s wind performance—homeowners in these zones should insist on compliant systems.

Dry and Arid Climates

In desert areas where rainfall is minimal but temperatures fluctuate drastically between day and night, a standing seam system that accommodates expansion and contraction is crucial. Snap-lock or batten seam panels are a good choice, as they allow for flexible installation while maintaining a clean, elegant look.

Ventilation is also essential in hot climates. Panel profiles that allow for integrated venting can help reduce attic temperatures, increasing overall energy efficiency and reducing cooling costs.

Aesthetic and Architectural Considerations

Beyond climate, architectural design and personal preference also influence panel choice. Some profiles offer more traditional or modern looks. For example, batten seam panels have a classic appearance, often used in historical restorations, while narrow snap-lock panels give a streamlined, contemporary finish.

Standing seam roofs can also be curved or tapered, which may affect which profile can be used. Not all panels are compatible with radius or complex shapes, so choosing the correct profile for architectural compatibility is important.

Conclusion

Selecting the right standing seam profile goes beyond appearance—it’s a decision that impacts performance, longevity, and safety. By considering climate factors such as snow, wind, humidity, and heat, property owners and contractors can choose a roofing system that offers maximum protection and value. Consulting with a metal roofing specialist who understands regional conditions is highly recommended to ensure optimal results.
