What's Lamina R101 y R72

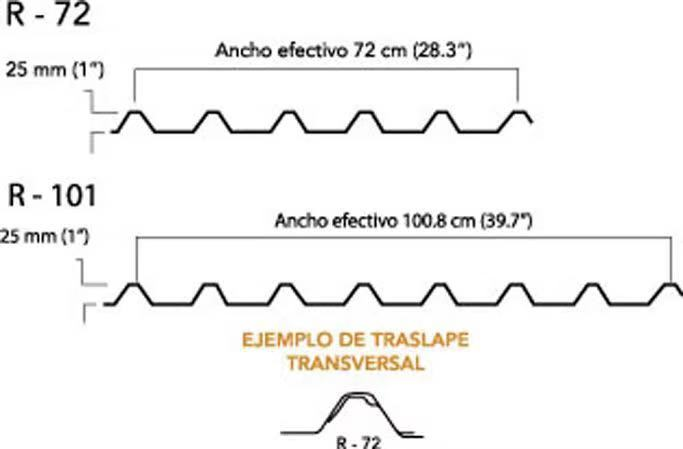

The R-101 and R-72 profiles are both trapezoidal metal roofing sheets, but they differernt in width, structural strength, and applications. Here’s a detailed comparison:

Key Differences: R-101 vs. R-72 Roofing Profiles

Which One Should You Choose?

• Choose R-101 if you need stronger roofing for large industrial buildings, warehouses, or commercial structures.
• Choose R-72 if you need a lighter, easy-to-install sheet for smaller roofs, fences, or walls.

How to make R-101 y R72?

Steps of an R-101 y R72 Roll Forming Machine

1.Material Input:

• Handles galvanized steel, aluminum, or pre-painted steel coils.
• Thickness range: 0.3 mm to 0.8 mm (varies by model).
• When do you R101 y R72, just put different coil width, there is handle wheel in the two sides, you can adjust it manually

2.Roll Forming Process:

• Ensures precise and consistent sheet dimensions.
• There is total 24 roller stations ro produce R-101 y R72 profile.
• Speed: 15m/min, also can do high speed 30m/min if you have high demand capacity requirements.

3. Hydraulic Cutting System:

• Includes a hydraulic or mechanical cutting system to cut sheets at the required length.
• Can be programmed for custom lengths, it is cutting automatically.

4.Control System:

• Operated using a PLC with a touchscreen interface, Siemens brand
• Setting different lengths and quantities production.
• Language can be set English and Spanish.
• Operation table is hanging over to sace space

Applications of R-101 y R-72

• Industrial and commercial roofing.
• Residential roofing (where a modern metal look is preferred).
• Warehouse and factory walls.
