info@suhangmachine.com1.Technical parameter
Thickness
|
0.4-1.2 galvanized coils
|
Forming speed
|
10-15M/min,30m/min (EXCLUDING CUTTING STOP TIME)
|
Forming roller
|
about 20 stations
|
Main motor power
|
7.5KW or 11kW
|
Hydraulic cutting pressure
|
10-12Mpa
|
Cutting method
|
fly saw cutting
|
Electrical system
|
PLC control
|
Cut to length tolerance
|
≤2mm
|
Main shaft material
|
45# steel
|
Roller material
|
45# forged steel
|
2.Machine List
Serial No.
|
Commodity & Description
|
Quantity
|
1
|

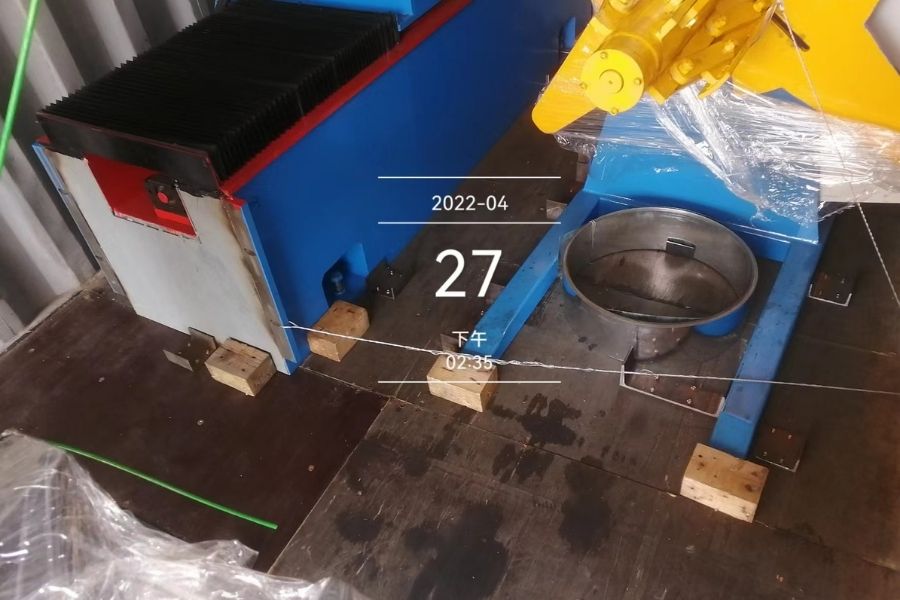

3T manual uncoiler
|
1 set
|
2
|
feeding guiding
|
1 set
|
3
|
Main roll forming machine
|
1 set
|
4
|
Output table
|
1 set
|
5
|
Main drive
|
1 set
|
6
|
Fly saw cutting
|
1 set
|
7
|
Controlling system (including cabinet)
|
1 set
|
8
|

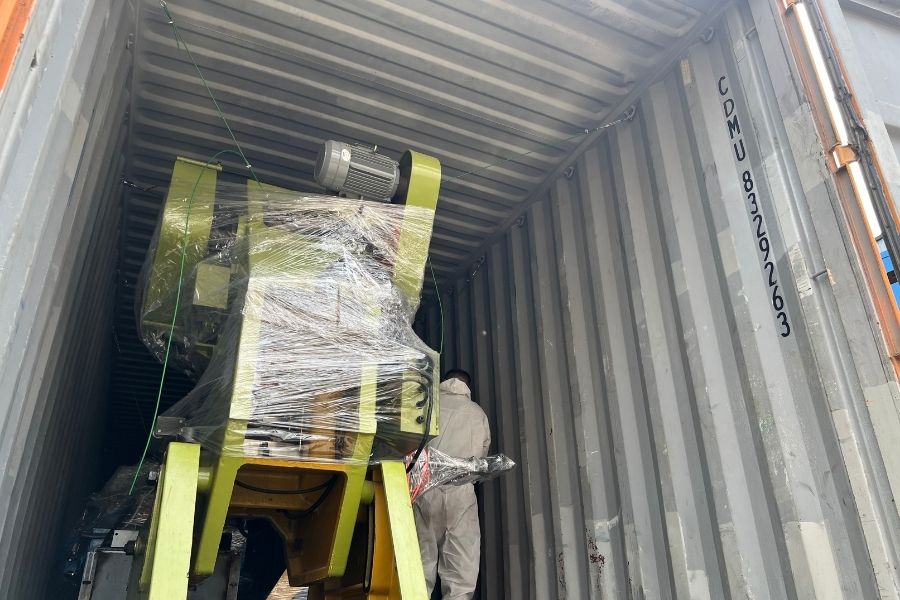

Punching press machine
|
1 set
|
8
|
Water cooling system
|
1 set
|
3.Technical process
Decoiler → Feeding →roll forming →cutting →Output tables
Our display screen is touch screen, not text touch screen.
Sussman roll forming system: We will make the hand wheels at the feeding device to adjust feeding width, and we also make the wheels with the numbers then you know how to adjust right and left sides, also we made the rulers on the bedding, you can adjust the profile height and width according to the rulers.
Screw with numbers is to adjust material thickness easily, also with protecting cap also add laminating film device and felt to make the board flatter and smoother without scratches.
The machine is equipped with a detection switch device, in case of emergency, emergency alarm, stop operation.
