8" Flat Pan Patio Cover Roll Forming Machine

description1
Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Description
Specification

The Flat pan roofs are popular in America, which are economical roof systems. The pans are boxed on one end to help prevent water from blowing into the wall header. They attach easily to any structure, and allow easy conversion to a patio enclosure. We sold this machine to USA in 2024. This customer bought the W pan roll forming machine in 2023.

Technical Data:

Item NO



Description

Unit\Type

RF-RP

1

Material Thickness

mm

Gauge 24

2

Forming Speed

m/min

0-10

3

Roller stands

stands

18-20

4

Roller Material



45# steel, coated with chrome, fire treated, HRC 58-62

5

Shaft diameter and materail



Ф70, 45# steel, fire treated, HRC 58-62

6

Cutting device



Hydraulic cutting

7

Main Motor Power

Kw

7.5

8

Hydraulic cutting Power

Kw

4

9

Hydraulic pressure

Mpa

12

10

Power Supply



According to client’s requiry

11

Tolerance

mm

1.5

12

Material of cutting



Cr12

13

Control system



PLC with touch screen

14

Main machine weight

T

6-7 Ton

15

Outer specification

m

7*0.8*1.2

16

Transmission Type



1 inch chain drive

Machine List:

3 ton passive de-coiler

1 set

Main roll forming machine

1 set

Hydraulic Cutting

1 set

PLC Control box

1 unit

Hydraulic station

1 unit

4 meters passive output table

1 unit

Spare part

1 package

Profile Drawing:

Sample pictures:

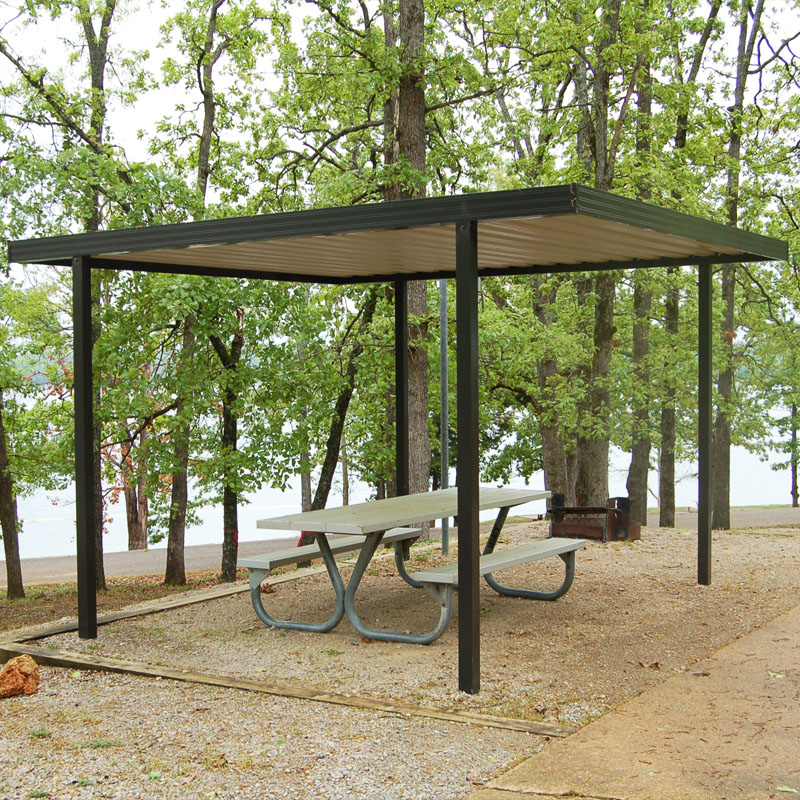

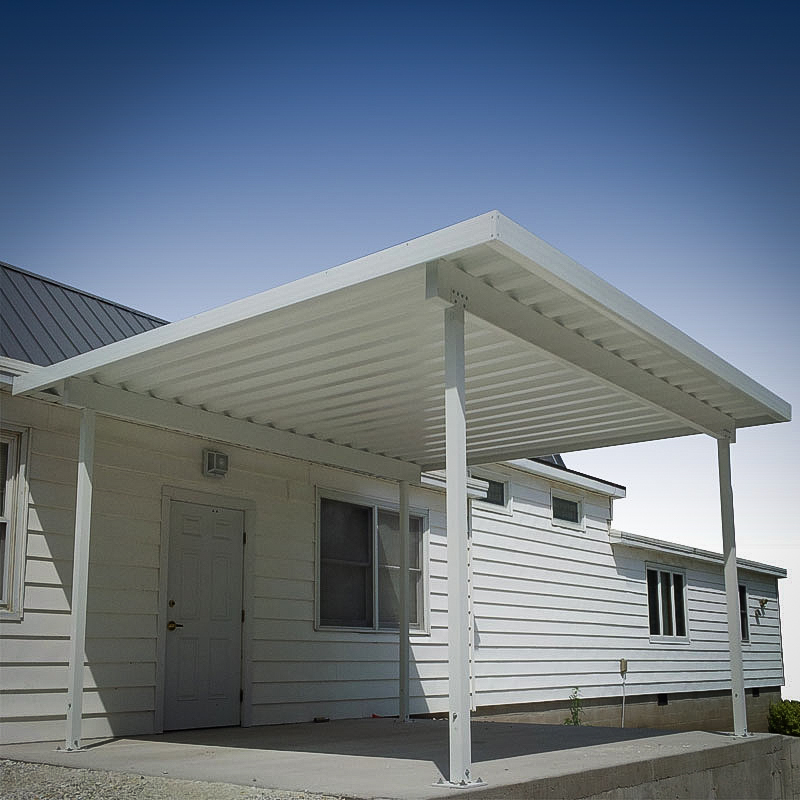

Application:
