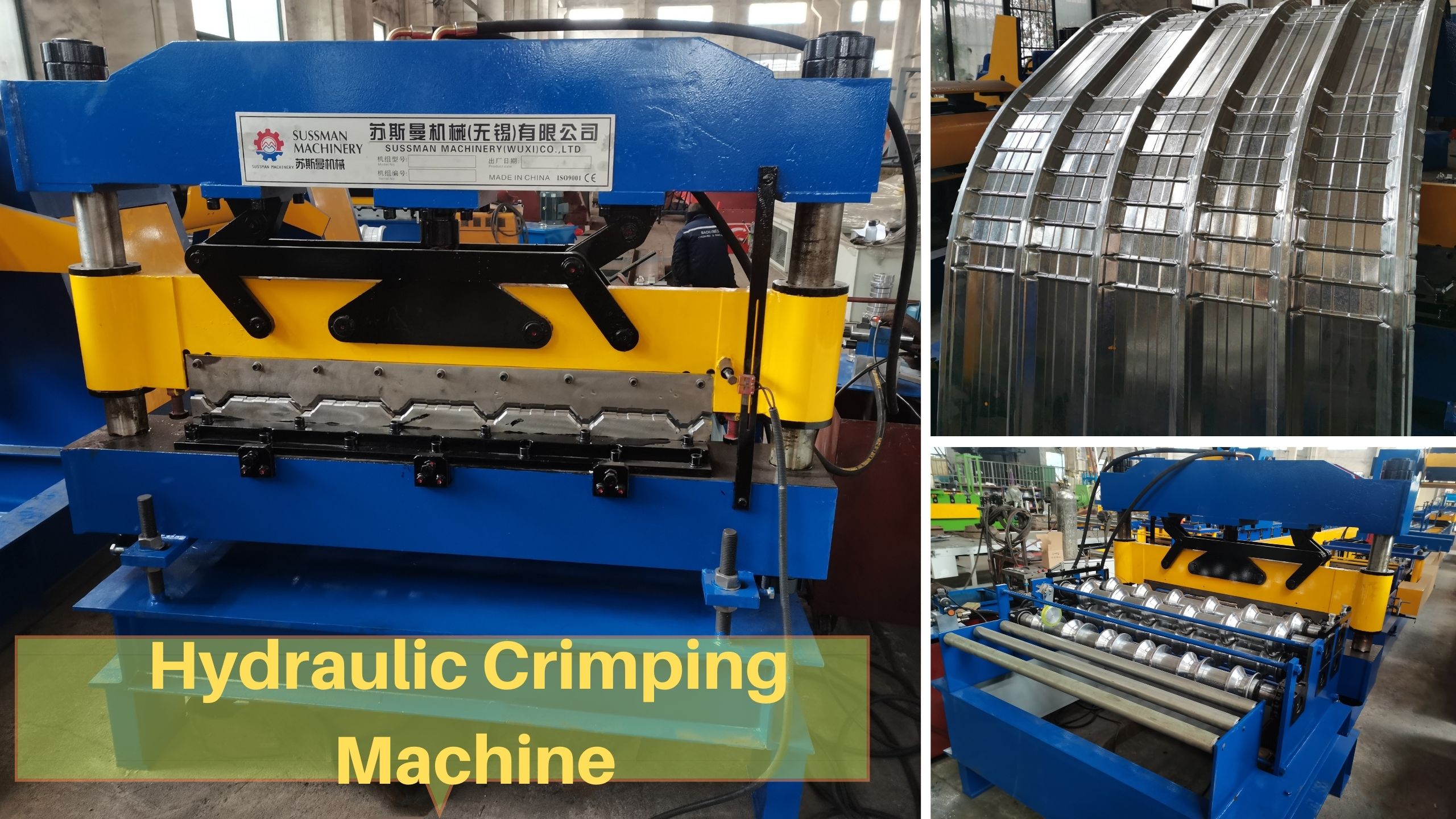

Arch Roof Panel Hydraulic Crimping Curving Roll Forming Machine

description1
Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Arch Roof Panel Hydraulic Crimping Curving Roll Forming Machine
Specification

Description:

1.The cranking machine is used widely in the field of roll forming industries by which it can process the forming roof tiles or wall panels to crank different arches
2. The operator can set the arches and step distance on the touch screen, then the machine can work automatically
3. It is easy to operate and convenient to use it



Specification:

1. Forming speed: 0—10m/min
2. Material thickness: 0.4—0.8 mm/ galvanized steel,pre-painted steel coil
3. Curving mould materials: 40Cr
4. Heat treatment hardness: HB220-280
5. Nitridation processment on the surface of the moulds
6. Control system: PLC control, Panasonic made in Japan
7. Way of feeding: supporting rollers to feed
8. Motor power: 2.2 KW
9. Hydraulic motor: 11 KW
10. Way of control: PLC Control
11. Max curving degree: 1200
12. Vertical and horizontal type or horizontal type as option

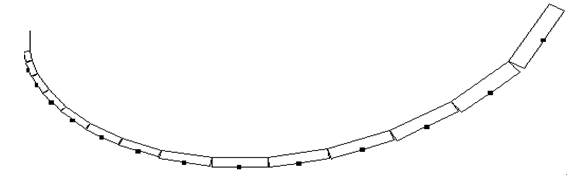

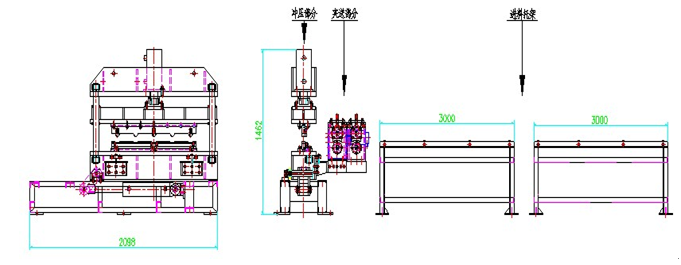

Profile Drawing:

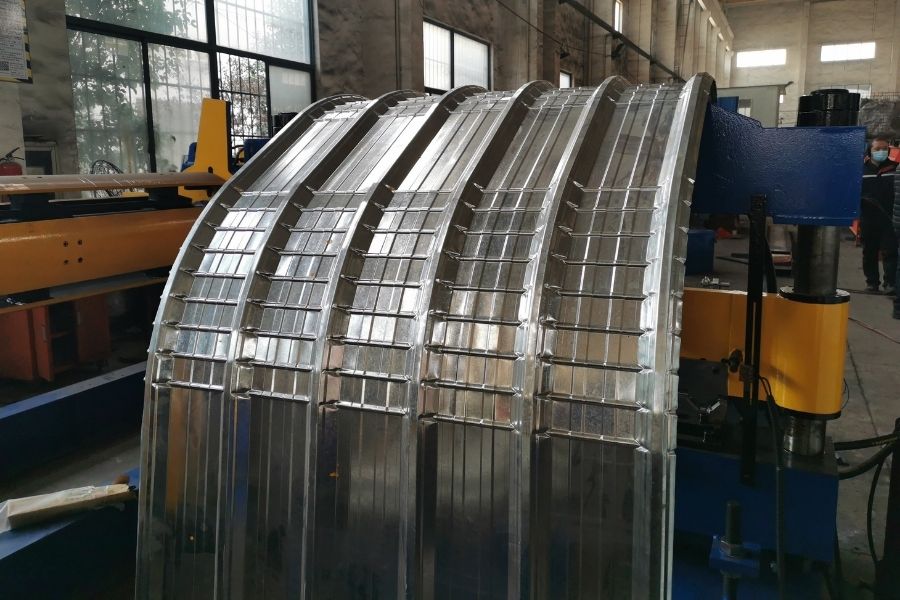

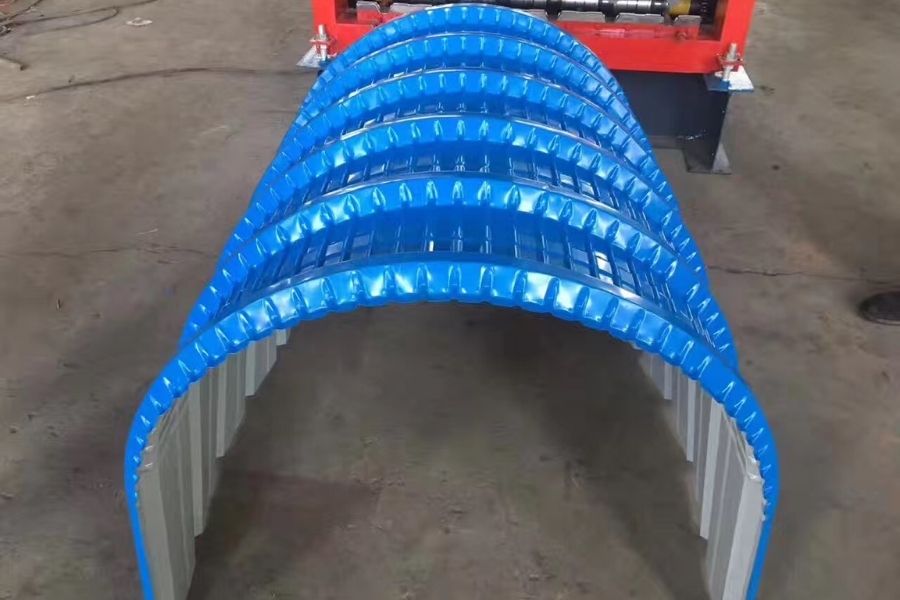

Samples:

Optional Configuration For Your Choice
  • Decolier
    Double Heads Decoiler
    A type decoiler
    Manual Decoiler
    Hydraulic Decoiler


  • Structure
    Wall panel
    Torri Structure
    Cast Iron

  • Drive
    Chain
    Gear
    Gearbox
    Couplings Gearbox


  • Cooling
    Water cooling
    Fan cooling

  • Punching
    Hydraulic punching
    Hydraulic press
    Punching press

  • Cutting
    Hydraulic stop cutting
    Servo Following Cutting
    Stop Saw cutting
    Fly saw cutting


  • Out table
    Manual table
    Simple pneumatic table
    Automatic stacker
    Magnetic stacker





  • Other
    Cassette
    Plastic film
    Fleece devce
    Pre-cutting



What's Sussman Machine Different From Other Suppliers?

The price of Sussman's roll forming machines is a little higher than other suppliers'. Let me explain about our machines difference:
Sussman machine design: it is unit one, which means the control box and the hydraulic station are all put under the machine frame, when you get the machine, no need to assemble and connect the complicate cable of the machine, you only need to connect one main cable, then the machine is working. it saves more time and space.

Our display screen is touch screen, not text touch screen.

Sussman Machinery



Other Suppliers

Sussman Processing technology: Sussman rollers is through grinding, quenched, chroming,finish machining,polishing,coated with chrome 0.05mm, all rollers are shiny, stronger and avoid rust.etc to make stronger, the roll forming machine is more robust and easier to use.  The metal sheet produced by our machine is always flat and perfect profiles., because in the design and during the machining process, we always control the force for the metal sheet, it does not damage the sheet surface and comes out perfect profile. And we use the German application COPRA, to imitate the situation in 3D and ensure the perfect profile.
Sussman Machinery

Other Suppliers

Sussman Roll Forming System

Sussman roll forming system: We will make the hand wheels at the feeding device to adjust feeding width, and we also make the wheels with the numbers then you know how to adjust right and left sides, also we made the rulers on the bedding, you can adjust the profile height and width according to the rulers.

Screw with numbers is to adjust material thickness easily, also with protecting cap also add laminating film device and felt to make the board flatter and smoother without scratches.

The  machine is equipped with a detection switch device, in case of emergency, emergency alarm, stop operation.




Sussman Machinery's Safety Cover
The whole equipment is in accordance with the requirements of CE standards, and the entire body and transmission parts are covered to protect the safety of workers.
Sussman Machinery
Other suppliers

Roof Tile Box
Sussman Machinery
Other suppliers

Hydraulic Cutting
Sussman Machinery
Other suppliers
