Technical parameter:
1、Running material: Galvanized steel 1.0mm ~1.2mm
2、Forming speed: 10m/min
3、Forming stands: 24
4、Roller material: GCr15、HRC60℃. diameter φ140、Maximal roller diameter:φ200
5、Material of shaft: #45 steel, China standard
6、Chain transmission system
7、Motor power: 7.5 KW; 380V; 50HZ/60HZ

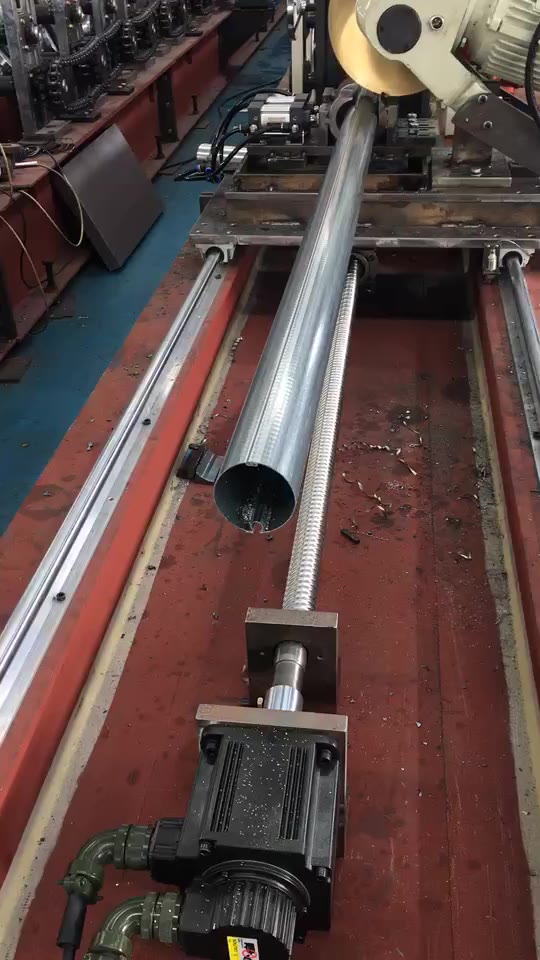

8、Cut-off system: Flying saw no stop cutting. Automatic cutting
9、Fly saw cutting motor power : 4 KW
10、Control system: Brand of Delta; Touch screen is brand of Delta;Encoder is Omron brand; teh Inverter is teh Delta brand; others low voltage electric components are Schneider Germany
11、Overall Dimension: 13000mmX1000mmX900mm
12、Total weight: 11 ton approximately
Flow Chart
Uncoiling – feed Guiding–Roll forming –fly saw cutting –Run-out table
Machine List
Serial No. |
Commodity & Description |
Quantity |
1 |
3T manual un-coiler |
1 set |
2 |
feeding guiding |
1 set |
3 |
Main roll forming machine |
1 set |
4 |
Output table |
1 set |
5 |
Main drive |
1 set |
6 |
Fly saw cutting |
1 set |
7 |
Controlling system (including cabinet) |
1 set |
8 |
Water cooling system |
1 set |
What's Sussman's machine different from other suppliers?
The price of Sussman's roll forming machines is a little higher than other suppliers'. Let me explain about our machines difference:
Our display screen is touch screen, not text touch screen.
Sussman roll forming system: We will make the hand wheels at the feeding device to adjust feeding width, and we also make the wheels with the numbers then you know how to adjust right and left sides, also we made the rulers on the bedding, you can adjust the profile height and width according to the rulers.
Screw with numbers is to adjust material thickness easily, also with protecting cap also add laminating film device and felt to make the board flatter and smoother without scratches.
The machine is equipped with a detection switch device, in case of emergency, emergency alarm, stop operation.
