C89 C140 C200 Light Steel Framing Machine LGS LGSF Building Structure Framing Machine
description1
Zipper closure
1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in
place during workout
Description
Specification

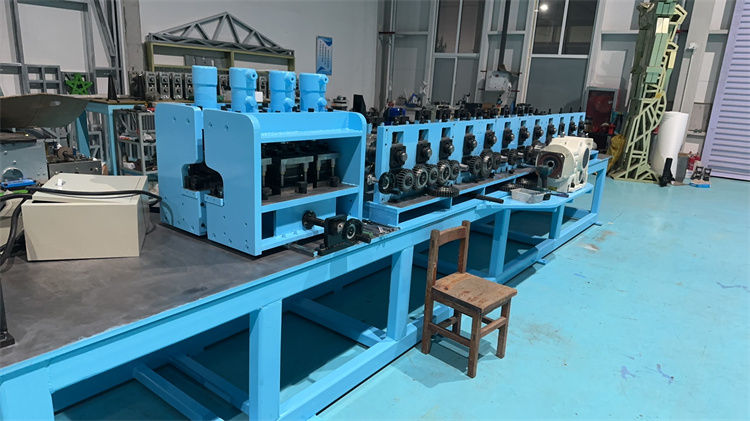

Light steel frame machine is an advanced manufacturing tool used to construct lightweight steel structures efficiently.
With the designing software and control software, the machine can automatic running and saving lots of time in drawing,material reporting, data entry, manufacturing, production record, and correcting all the errors.
Applications: Wall system, floor system and roof system for residential, transportable units, modular house, and light commercial construction. Clear span of the roof trusses up to 15 m and can be either factory-based or transportable in a mobile factory.
Applications: Wall system, floor system and roof system for residential, transportable units, modular house, and light commercial construction. Clear span of the roof trusses up to 15 m and can be either factory-based or transportable in a mobile factory.
Technical Data:
|
Size
|
C89
|
|
Thickness
|
0.8-1.6mm（Galvanzied coils and Aluzinc ）
|
|
Standard Producing speed
|
300-700m/h
|
|
Max producing speed
|
1500m/h
|
|
Main motor
|
7.5kw Servo motor
|
|
Power supplier
|
415V 50Hz 3phases according to your request
|
|
Hydraulic station
|
7.5kw Motor
|
|
Hydraulic tank capacity
|
100L
|
|
Hydraulic cooling
|
Fan cooling with Accumulator
|
|
Hydraulic pressure
|
Manually set
|
|
Host cordless remote control
|
Standard
|
|
Frame and punching dies
|
Web Notch(1 set),Screw hole(1 set), chamfer(1 set), flange cut(1 set), Service Hole(1 set), suspension, cutting blade(1 set)
|
|
Product accuracy+-
|
0.5mm
|
|
CNC inkjet-printer
|
HP inkjet printer
|
|
Size
|
4700*950*1200mm
|
|
Weight
|
3000kg
|
|
Color
|
According to your request
|
|

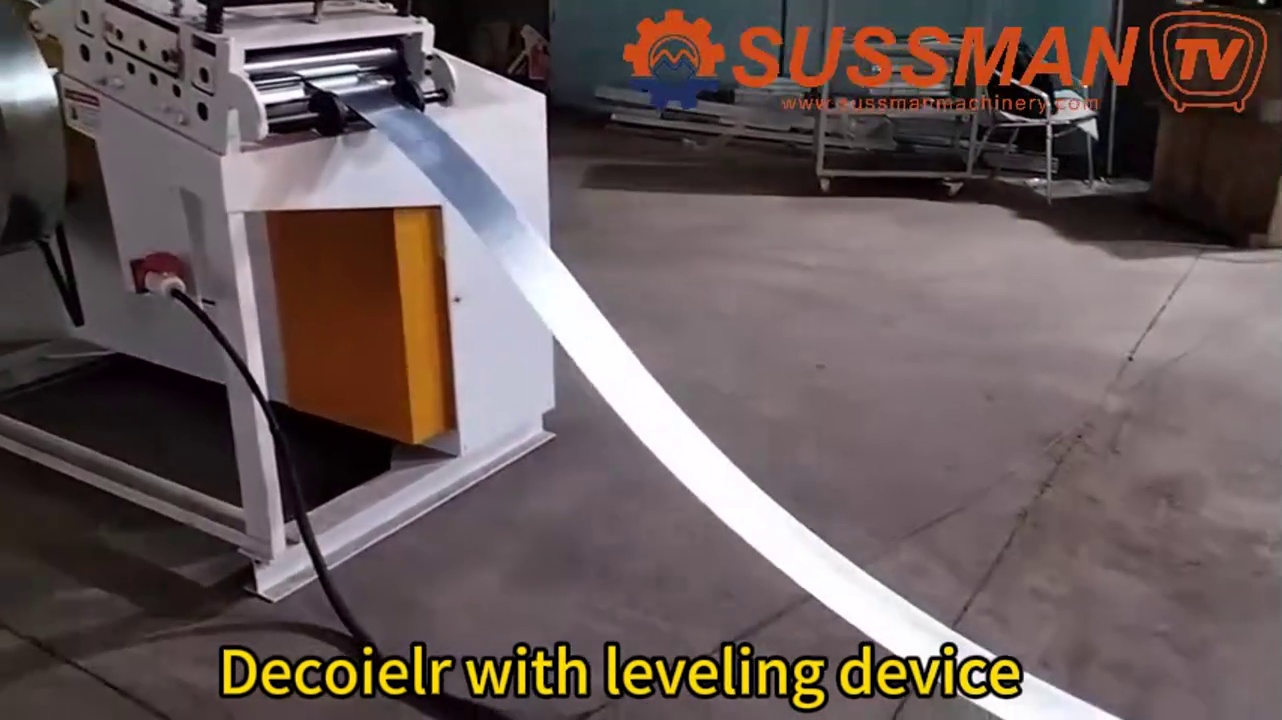

De-colier
|
2 Tons electric decoiler with leveling device
|

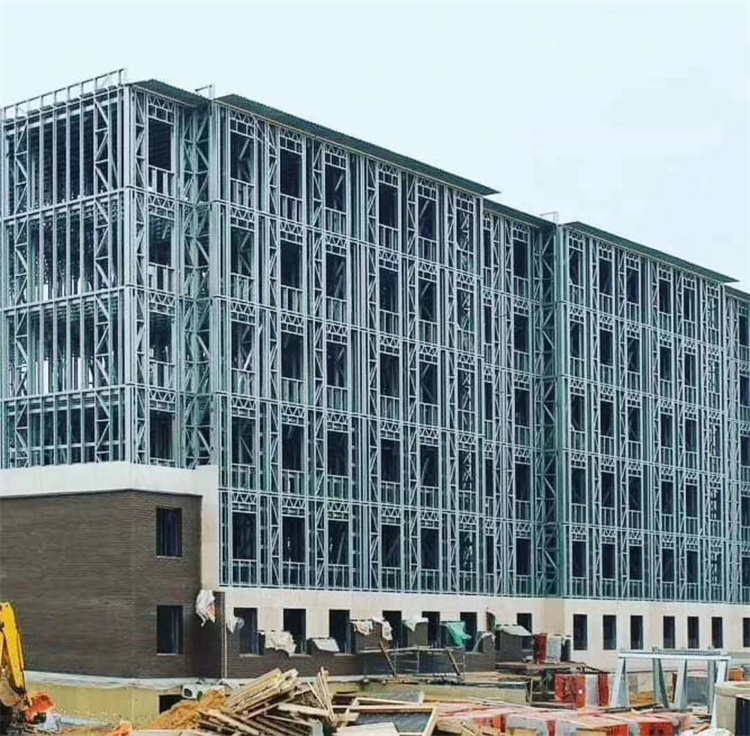

Building Structure:
.png?x-oss-process=image/resize,w_100/quality,q_100)

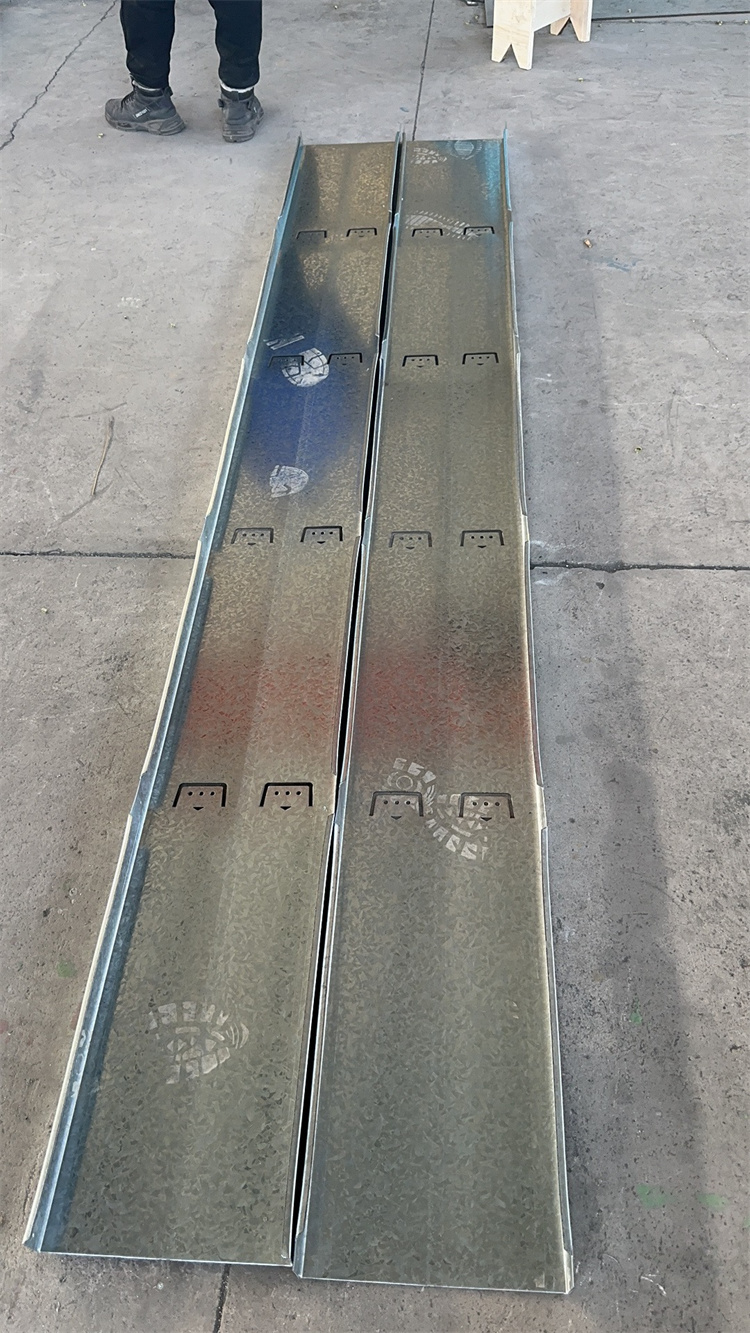

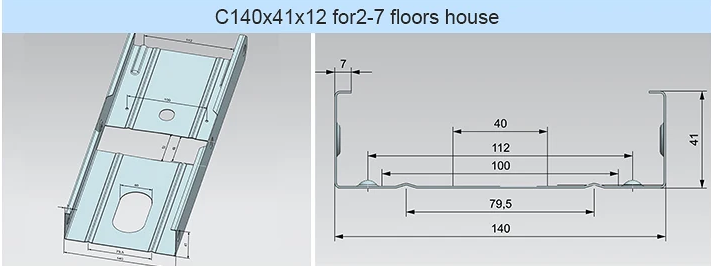

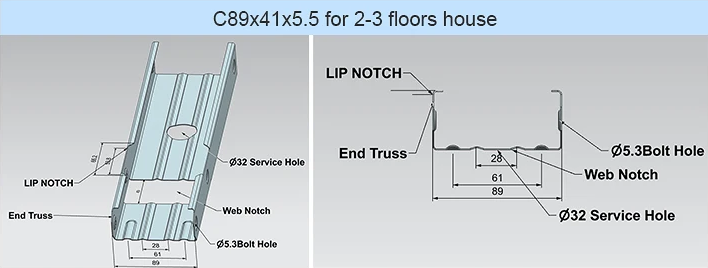

Profile Drawing:

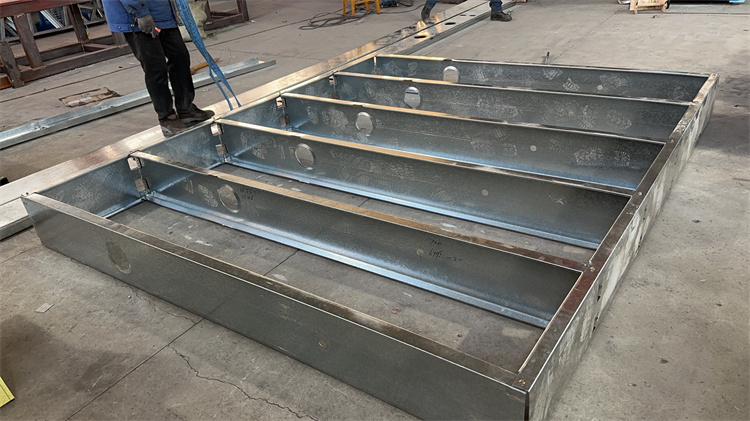

Floor joint system
Software:

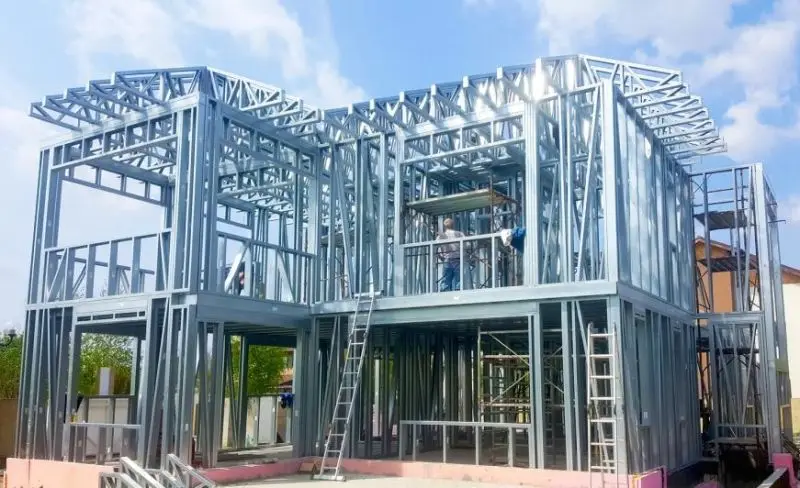

Application:
.jpg?x-oss-process=image/resize,w_100/quality,q_100)
.jpg)
