Introduction

A cable tray system, is "a unit or assembly of units or sections and associated fittings forming a rigid structural system used to securely fasten or support cables and raceways." Cable trays are used to hold up and distribute cables. Cable tray roll forming machine is special designed for its production.

Description

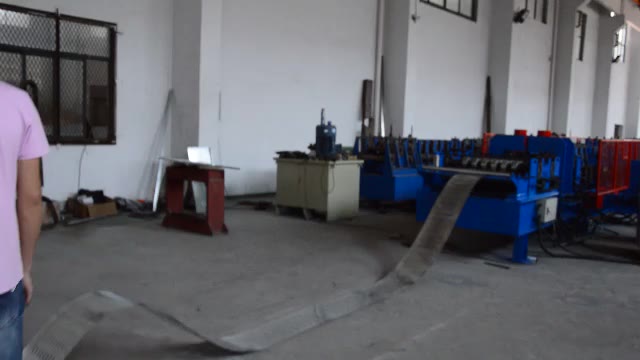

Cable tray roll forming machine consists of decoiler (uncoiler), leveling machine (flattener), servo feeding device, punching system, front cutting device, guiding device, roll former, rear straightening device and run-out table. With full and special experience, we can customize cable tray roll forming machines or cable tray roll forming production lines according to customers’ profile drawings and specifications.

Features
1. Strict Quality Control
2. Competitive Price
3. Excellent Appearance

Specification
Suitable Material:                   Thickness: 0.8-2.0mm, width as the design
Decoiler:                                3T/5T/8T decoiler
Forming Station:                    20 stations up to the profile
Forming Speed:                     Max 20 m/min
Panel Run Out:                      Run Out Table
Total Power:                          About 50 KW up to final design
Total Installation Size:            45 X 5 m up to final design
