Item NO |
Description |
Unit\Type |
RF-DF |
1 |
Steel Thickness |
mm |
0.8mm-1.2mm |
2 |
Forming Speed |
m/min |
0-12 |
3 |
Roller stands |
stand |
28 |
4 |
Roller Material |
|
high-grade 45# steel |
5 |
Shaft diameter |
|
Ф90 |
6 |
Main Motor Power |
Kw |
18.5kw |
7 |
Hydraulic cutting Power |
Kw |
7.5 |
8 |
Hydraulic pressure |
Mpa |
12 |
9 |
Power Supply |
|
380V, 50HZ,3 phase |
10 |
Tolerance |
mm |
1.5 |
11 |
Material of cutting |
|
Cr12mov |
12 |
Control system |
|
PLC with touch screen |
13 |
DRIVE system |
Chain |
1.2 inches
|
Working Flow:
Uncoiling—Feeding&Leveling ---Roll forming—Cutting—Products collecting
Profile design

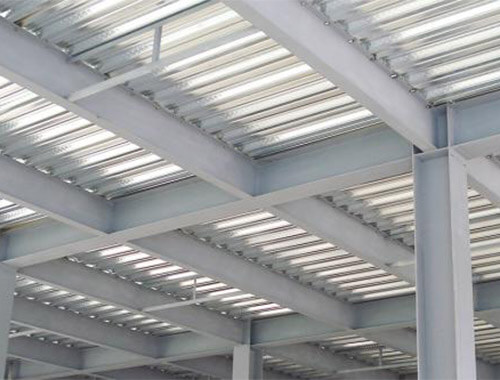

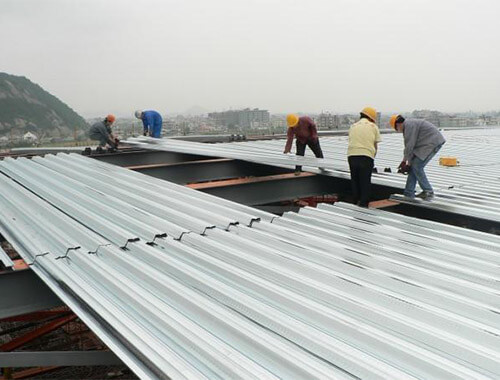

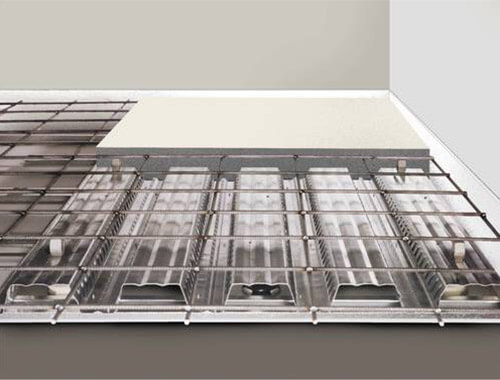

The metal deck is a steel structure building material produced by cold roll forming, which is used for supporting floor concrete in the construction industry. It is also called a metal floor deck. Steel decking products are the preferred method of floor construction for multi-story structural steel framed buildings. Floor deck offers structural engineers and contractors a versatile and cost-effective composite steel flooring solution. The advantages of the metal deck roll forming machines are a high wave, high strength, high automation and low cost.

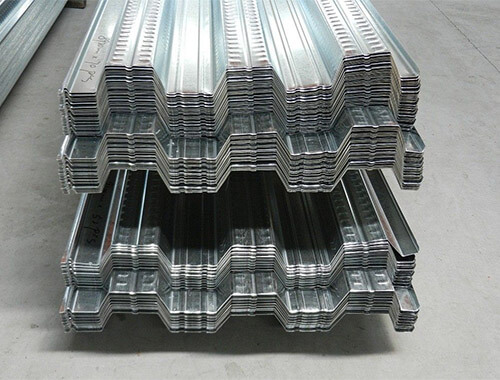

* 2″ Composite Deck in 22, 20, 18, and 16 gauge. Typically 2″ Composite Deck is used for applications in outdoor flooring
* The most common deck profile in the industry and by far the most widely used
* Comes in 36” coverage
*3″ Composite Metal Deck is a sturdy and easy to install choice for your metal floor decking.
Our display screen is touch screen, not text touch screen.
Sussman roll forming system: We will make the hand wheels at the feeding device to adjust feeding width, and we also make the wheels with the numbers then you know how to adjust right and left sides, also we made the rulers on the bedding, you can adjust the profile height and width according to the rulers.
Screw with numbers is to adjust material thickness easily, also with protecting cap also add laminating film device and felt to make the board flatter and smoother without scratches.
The machine is equipped with a detection switch device, in case of emergency, emergency alarm, stop operation.
