Economic Light Steel Framing C U Stud and Track Roll Forming Machine

Email: info@suhangmachine.com

Tel: 008613606193016

Whatsapp: 8613606193016

description1

Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Description

Main specifications

Machine list

Machine list	3 ton automatic de-coiler	1 set
	Main roll forming machine	1 set
	Punching device	1 set
	Punching moulds	5 sets
	Cutting device	2 sets
	PLC Control box	1 unit
	Hydraulic station	1 unit
	Out table	2 units
	Safety cover	1 unit

Parameter

	Items	Specifications	Remarks
Material of coil	Thickness	0.8-1.2mm galvanized steel
De-coiler	Weight	3 ton automatic
Forming system	Rolling Speed	0-10m/min
	Roller Stations	About 14 stations forming
	Roller Material	Cr40 Steel with quenching
	Shaft Material	45# Steel Diameter 60mm shaft
	Motor Power	7.5 kw
	Hydraulic cutting Power	4 kw
Cutting system	Material of cutting	CR12 with quench treatment
	Hardness	HRC58-62
	Tolerance	+-1.5mm
	Cutting blade	2 sets of cutting blade
Electrical control system	Electric Source	380V, 60HZ,3 phase
Electrical control system	Control System	PLC
	Weight	About 3 tons
	Way Of Drive	1 inch single chain
	Size of machine	Length 5500mm* Width 800mm* Height 1000m

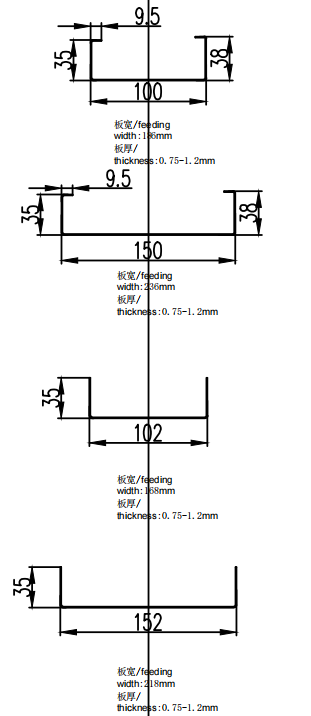

Profile design

Finished products

Why Sussman Different

WHAT'S SUSSMAN'S MACHINE DIFFERENT FROM OTHER SUPPLIERS'

The price of Sussman's roll forming machines is a little higher than other suppliers'. Let me explain about our machines difference:

Sussman machine design: it is unit one, which means the control box and the hydraulic station are all put under the machine frame, when you get the machine, no need to assemble and connect the complicate cable of the machine, you only need to connect one main cable, then the machine is working. it saves more time and space.

Our display screen is touch screen, not text touch screen.

Sussman Machinery

Other suppliers

Sussman Processing technology: Sussman rollers is through grinding, quenched, chroming,finish machining,polishing,coated with chrome 0.05mm, all rollers are shiny, stronger and avoid rust.etc to make stronger, the roll forming machine is more robust and easier to use. The metal sheet produced by our machine is always flat and perfect profiles., because in the design and during the machining process, we always control the force for the metal sheet, it does not damage the sheet surface and comes out perfect profile. And we use the German application COPRA, to imitate the situation in 3D and ensure the perfect profile.

Sussman Machinery

Other suppliers

Sussman roll forming system

Sussman roll forming system: We will make the hand wheels at the feeding device to adjust feeding width, and we also make the wheels with the numbers then you know how to adjust right and left sides, also we made the rulers on the bedding, you can adjust the profile height and width according to the rulers.

Screw with numbers is to adjust material thickness easily, also with protecting cap also add laminating film device and felt to make the board flatter and smoother without scratches.

The machine is equipped with a detection switch device, in case of emergency, emergency alarm, stop operation.

Sussman Machinery's safety cover

The whole equipment is in accordance with the requirements of CE standards, and the entire body and transmission parts are covered to protect the safety of workers.
