Electric Type Lamina Kr18 roofing roll forming machine

description1
Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Specification

KR-18 refers to a profile of metal panel that has a standing seam with a 1.5-inch (approx. 38 mm) rib height and a seam that is mechanically locked or snap-locked. The "18" in KR-18 typically refers to its width in inches (approx. 457 mm).

This machine is to make KR18 panel

Profile is for reference

Working flow

Uncoiling—Feeding with guide—Roll forming—Hydraulic cutting—Products collecting

Technical Data

Item NO



Description

Unit\Type

RF-RP

1

Material Thickness

mm

0.4-0.8mm for color coated steel

2

Forming Speed

m/min

0-15m/min

3

Roller stands

stand

About 9 stations

4

Material of Rollers

/

45# Steel, quenched HRC 58-62

5

Material of Shafts

/

45# Steel, quenched HRC 58-62

6

Power Device



Electric

7

Material of cutting

/

Cr12Mov

8

Main machine weight

T

About 2 Tons

9

Outer specification

m

About 4.8*0.9*1.2m



Machine list

Name

Quantity

Use

5 Tons manual Uncoiler

1

To feed steel coils

Electric Seaming Machine

1

To seam the steel sheets

Super Pliers

1

To clamp the steel sheets

Chain

3m

To drive the gears

Whole Chain Link

3

Parts

Half Chain Link

5

Parts

5 tons manual decoiler

Kr18 roll forming machine

Embossing roller optional

Hydraulic cutting to cut any length you want to make

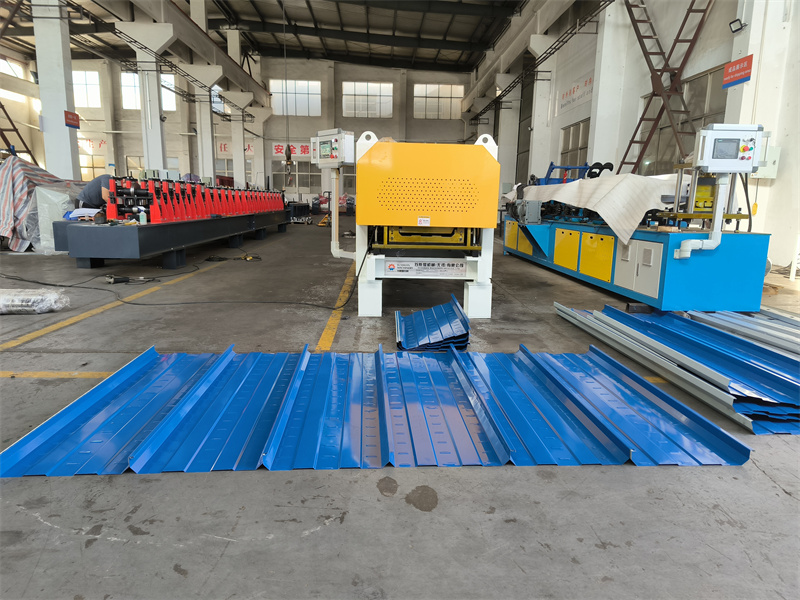

Finished products

Seaming and clamping

Advantages of an Electric KR18 Roll Former:

  • Precision control: Digital input for exact measurements.

  • Fast and consistent: Higher production rate vs. manual methods.

  • Low maintenance: No hydraulic system to maintain.

  • Cleaner operation: Quieter and more energy-efficient than hydraulic models.
