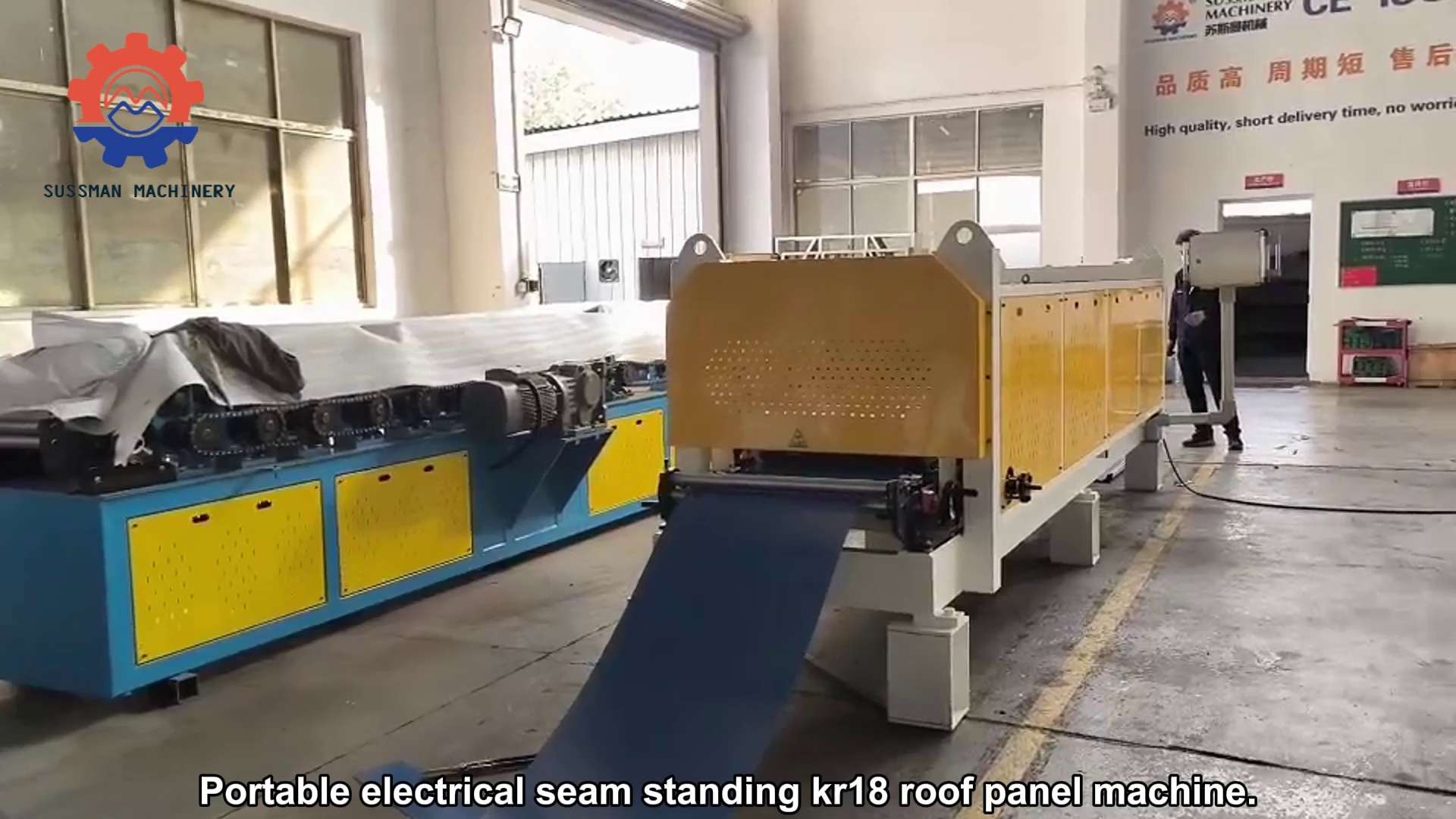

Electrical KR18 Metal Standing Seam Roll Forming Machine

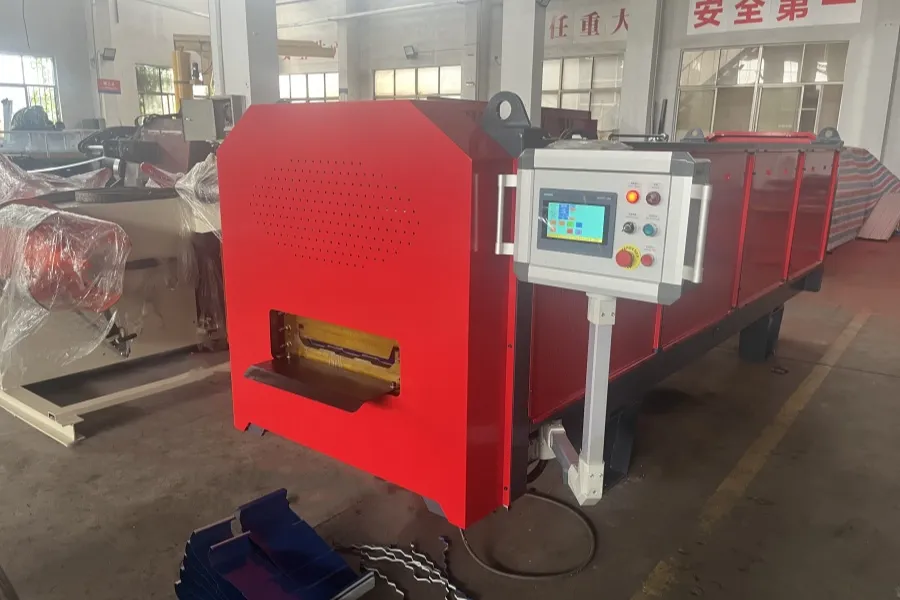

This machine is for our client from Costa Rica. It has a 3 ton passive decoiler, main roll forming machine, 3 passive output tables, control system(PLC+touch screen), safety cover and tool box. To assemble the panels, you need to use the seam machine. Usually 5-roll seaming machine is available.

description1
Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Specification

The KR18 profile is a type of standing seam metal roofing panel with a rib height of 18 inches. It uses a clip-lock or seaming system instead of exposed screws, making the roof more watertight and durable. KR18 panels are usually made from galvanized steel, galvalume, or aluminum, with thicknesses ranging from 0.4 mm to 0.8 mm.

They are widely applied in factories, warehouses, commercial buildings, and modern houses, offering a clean appearance, strong weather resistance, and long service life. KR18 is especially popular because it allows fast installation, thermal expansion flexibility, and low maintenance compared to screw-fastened roofing.

Profile

Working flow

Uncoiling—Feeding with guide—Roll forming—Hydraulic cutting—Products collecting

Technical Data

Item NO



Description

Unit\Type

RF-RP

1

Material Thickness

mm

0.4-0.8mm for color coated steel

2

Forming Speed

m/min

0-15m/min

3

Roller stands

stand

About 8 stations

4

Material of Rollers

/

45# Steel, quenched HRC 58-62

5

Material of Shafts

/

45# Steel, quenched HRC 58-62

6

Power



5.5kw

7

Material of cutting

/

Cr12Mov

8

Main machine weight

T

About 3 Tons

9

Outer specification

m

About 4.9*1.2*1.6m

3 tons manual decoiler

Seaming and clamping
