EPS Sandwich Panel Production Line

Email: info@suhangmachine.com

Tel: 008613606193016

Whatsapp: 8613606193016

description1

Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Description

Specification

Machine List:

NO.	Name	Components	Quantity	Remark
1	Roof panel roll forming machine	Manual Decoiler	1 set	5 tons
		Steel cutting device	1 set	Electric
		Single layer roll forming machine	1 set
2	Feeding Machine	Steel uncoiler	2 Sets	Upper/Lower each 1 set
		Ribs forming set	2 Sets	Upper/Lower each 1 set
		Electrical cutting sheet set	2 Sets
		Core material conveying device	1 Set
3	Main sandwich panel part	Glue pump	1 Set	4 glue pumps, 2 motors, 2 inverters
		Pneumatic glue device	3 Sets	Upper/Middle/Lower each 1 set
		Sandwich main part and transmission	1 Set
		Infrared heating device	6 Sets
		Electrical edge joint forming set	1 Set
4	PLC computer control		1 Set
5	Cutting set		1 Set	Automatic cutting
6	Receive stacking		1 Set	6 meters

Profile Drawing:

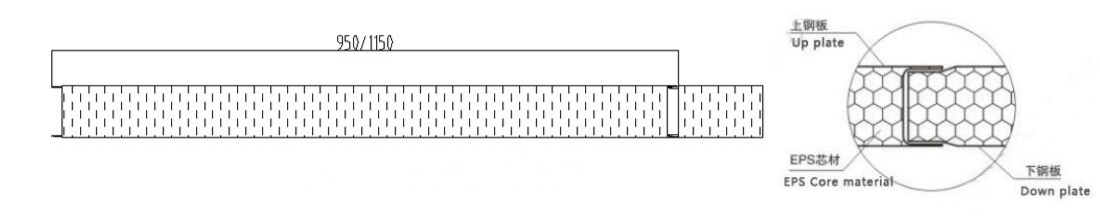

1, Socket type wall panel

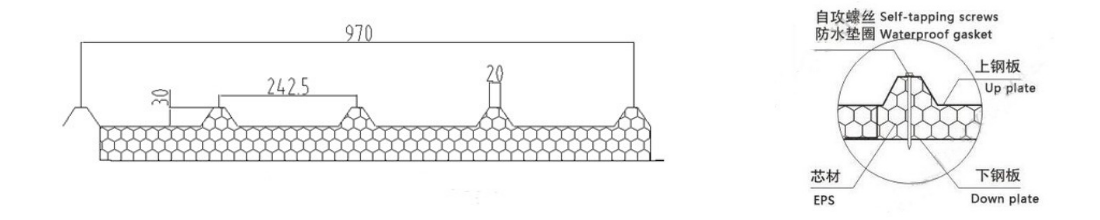

2, Lapped type roof panel

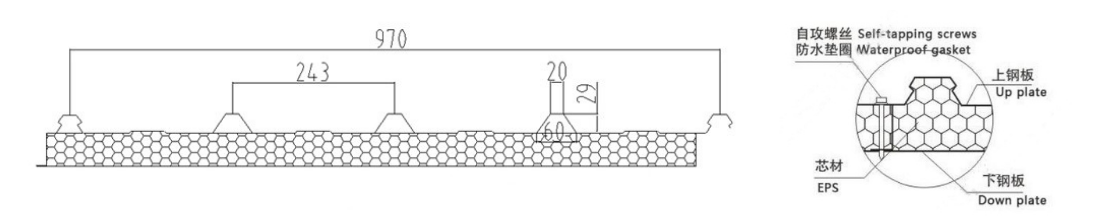

3, Self-locking roof panel

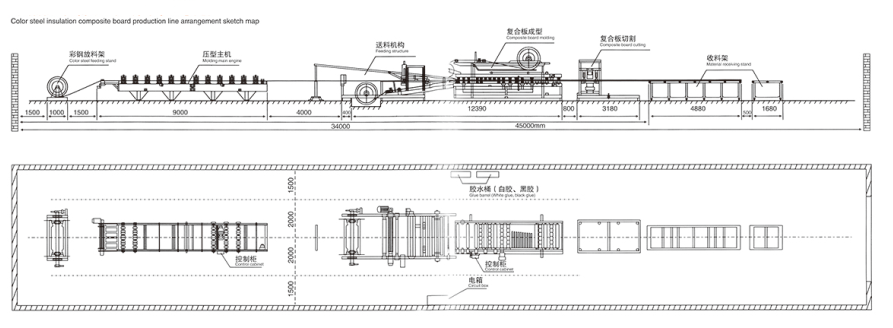

Working Flow:

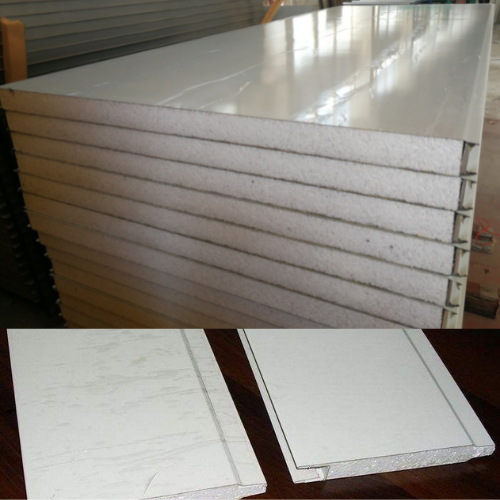

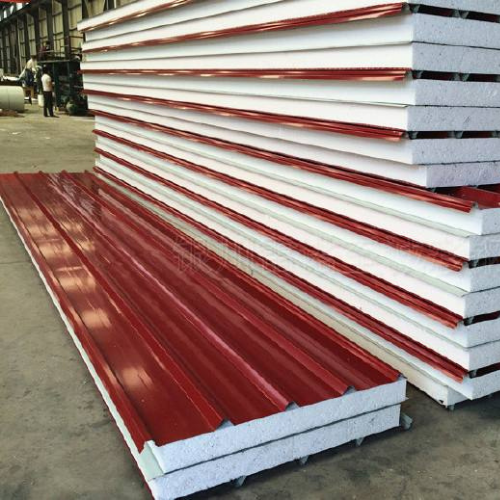

Finished Products:

Optional Configuration For Your Choice

Decolier

Double Heads Decoiler

A type decoiler

Manual Decoiler

Hydraulic Decoiler

Structure

Wall panel

Torri Structure

Cast Iron

Drive

Chain

Gear

Gearbox

Couplings Gearbox

Cooling

Water cooling

Fan cooling

Punching

Hydraulic punching

Hydraulic press

Punching press

Cutting

Hydraulic stop cutting

Servo Following Cutting

Stop Saw cutting

Fly saw cutting

Out table

Manual table

Simple pneumatic table

Automatic stacker

Magnetic stacker

Other

Cassette

Plastic film

Fleece devce

Pre-cutting

What's Sussman's machine different from other suppliers

The price of Sussman's roll forming machines is a little higher than other suppliers'. Let me explain about our machines difference:

Sussman machine design: it is unit one, which means the control box and the hydraulic station are all put under the machine frame, when you get the machine, no need to assemble and connect the complicate cable of the machine, you only need to connect one main cable, then the machine is working. it saves more time and space.

Our display screen is touch screen, not text touch screen.

Sussman Machinery

Other suppliers

Sussman Processing technology: Sussman rollers is through grinding, quenched, chroming,finish machining,polishing,coated with chrome 0.05mm, all rollers are shiny, stronger and avoid rust.etc to make stronger, the roll forming machine is more robust and easier to use. The metal sheet produced by our machine is always flat and perfect profiles., because in the design and during the machining process, we always control the force for the metal sheet, it does not damage the sheet surface and comes out perfect profile. And we use the German application COPRA, to imitate the situation in 3D and ensure the perfect profile.

Sussman Machinery

Other suppliers

Sussman roll forming system

Sussman roll forming system: We will make the hand wheels at the feeding device to adjust feeding width, and we also make the wheels with the numbers then you know how to adjust right and left sides, also we made the rulers on the bedding, you can adjust the profile height and width according to the rulers.

Screw with numbers is to adjust material thickness easily, also with protecting cap also add laminating film device and felt to make the board flatter and smoother without scratches.

The machine is equipped with a detection switch device, in case of emergency, emergency alarm, stop operation.

Sussman Machinery's safety cover

The whole equipment is in accordance with the requirements of CE standards, and the entire body and transmission parts are covered to protect the safety of workers.

Sussman Machinery

Other suppliers

Roof tile box

Sussman Machinery

Other suppliers

Hydraulic cutting

Sussman Machinery

Other suppliers
