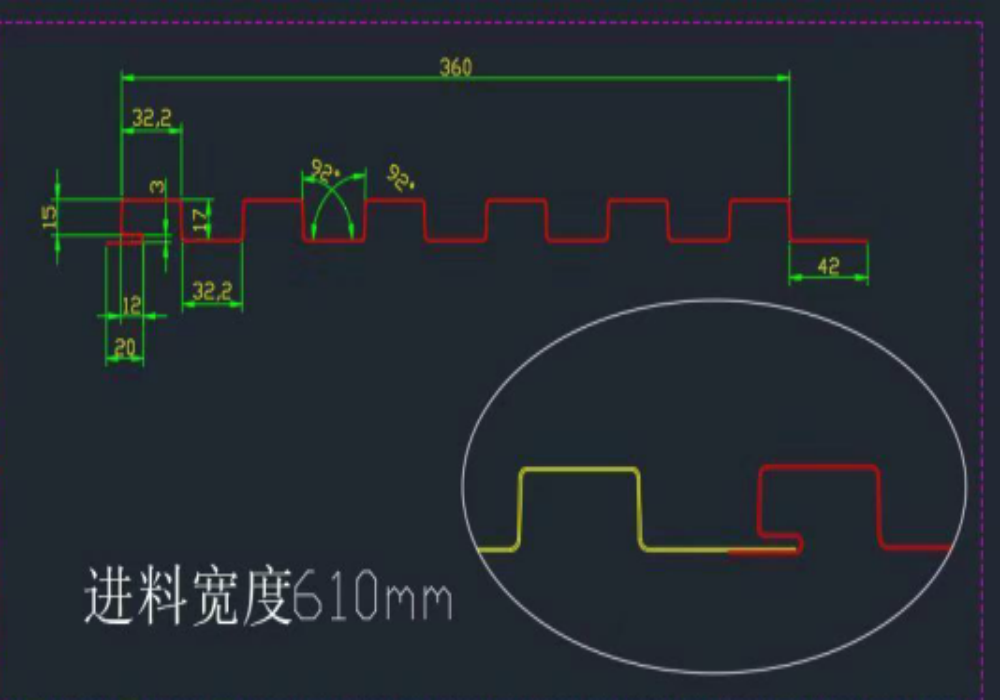

Facade wall panel roll forming machine
|
Item NO |
Description |
Offered specification |
|
1.0 |
Roll forming machine |
|
|
1.1 |
Rolling speed |
10-12m/min |
|
1.2 |
Rolling thickness |
0.4-0.8mm |
|
1.3 |
Raw material |
Galvanized steel coils or PPGI |
|
1.4 |
Main motor |
7.5kw |
|
1.5 |
Hydraulic motor |
5.5kw |
|
1.6 |
dimension |
7500×700×1000(mm) |
|
1.7 |
Roller stations |
About 25 stations |
|
1.8 |
Roller material |
45#forge steel, coated with chrome |
|
1.9 |
Shaft diameter |
Φ70mm,material is 45# forge steel |
|
1.10 |
Transmission |
By chain 1 inch |
|
1.11 |
Material of chain |
45# forged steel with frequency quenching, 12A |
|
1.12 |
Material of cutting |
Cr12Mov with quench HRC58-62° |
|
1.13 |
Tolerance |
6m+-0.5mm |
|
1.14 |
Frame |
H type steel |
|
1.15 |
Voltage |
380v, 50hz, 3phases |
