Fence Post Roll Forming Machine
description1
Zipper closure
1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in
place during workout
Description

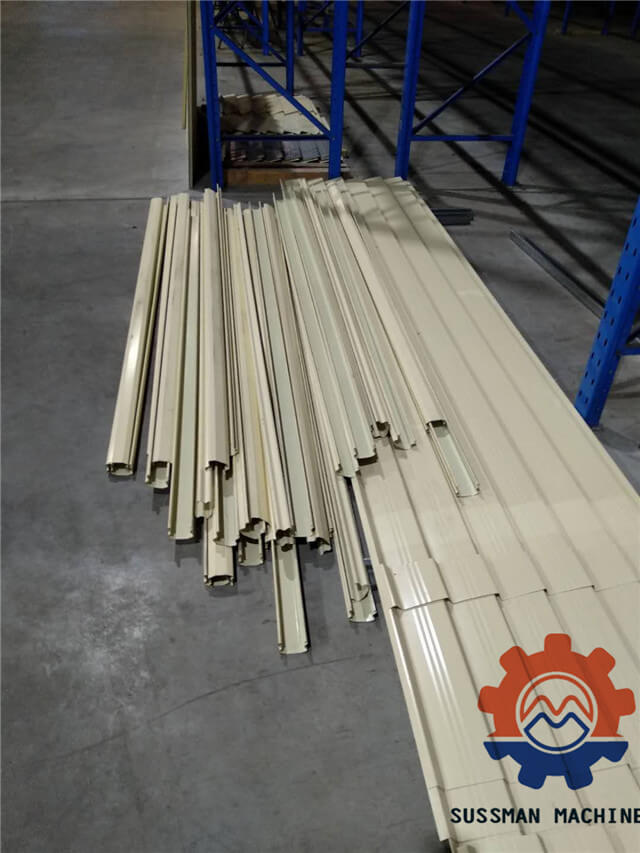

Sussman Machinery can make wire mesh fence post, metal fence post for wood fence. Wire mesh fence post normally uses peach type profile, thickness is 1.0-1.2mm, cold rolled or hot rolled steel, galvanized steel, Peach post curved fence is widely used in express highway, railway, airport, the city roads, grand square and flower and grass fences etc. It not only protects the safety of vehicles and pedestrian, but also beautifies the space environment. We also can design the machine as your per requirement.
Specification
| Material Thickness | 1mm steel coils |
| Profile width | 90mm |
| Profile height | 45mm |
| Rolling Speed | 10-15m/min |
| Roller Stations | About 16 stations |
| Roller Material | 45# Steel with quenching 60mm shaft |
| Maim Motor Power | 5.5 kw |
| Hydraulic cutting Power | 4 kw |
| Material Of Cutting | CR12 with quench treatment |
| Hardness | HRC58-62 |
| Tolerance | +-1.5mm |
| Electric Source | 380V, 50HZ,3 phase Also can satisfy Customer’s require |
| Control System | |
| Weight | About 2.5 tons |
| Way Of Drive | 1 inch single chain |
| Size of machine | Length 3500mm* Width 500mm* Height 800m |
Application
The fence post is widely used for the Villa, the grass and the open land.
