info@suhangmachine.comRoll forming machine:
Color Steel Sheet Thickness: Color Sheet 0.3~0.8mm
Color Steel Sheet width: 1220mm
Roller Stations: about 16 stations
Way of Drive: 1.2 inch single chain
The speed of the roll forming machine:5-6m/min
Roller Material: 40Cr steel, coated with chrome
Shaft Material and DIA:¢76mm, material is 45# forge steel
Maim Motor Power: 7.5kw

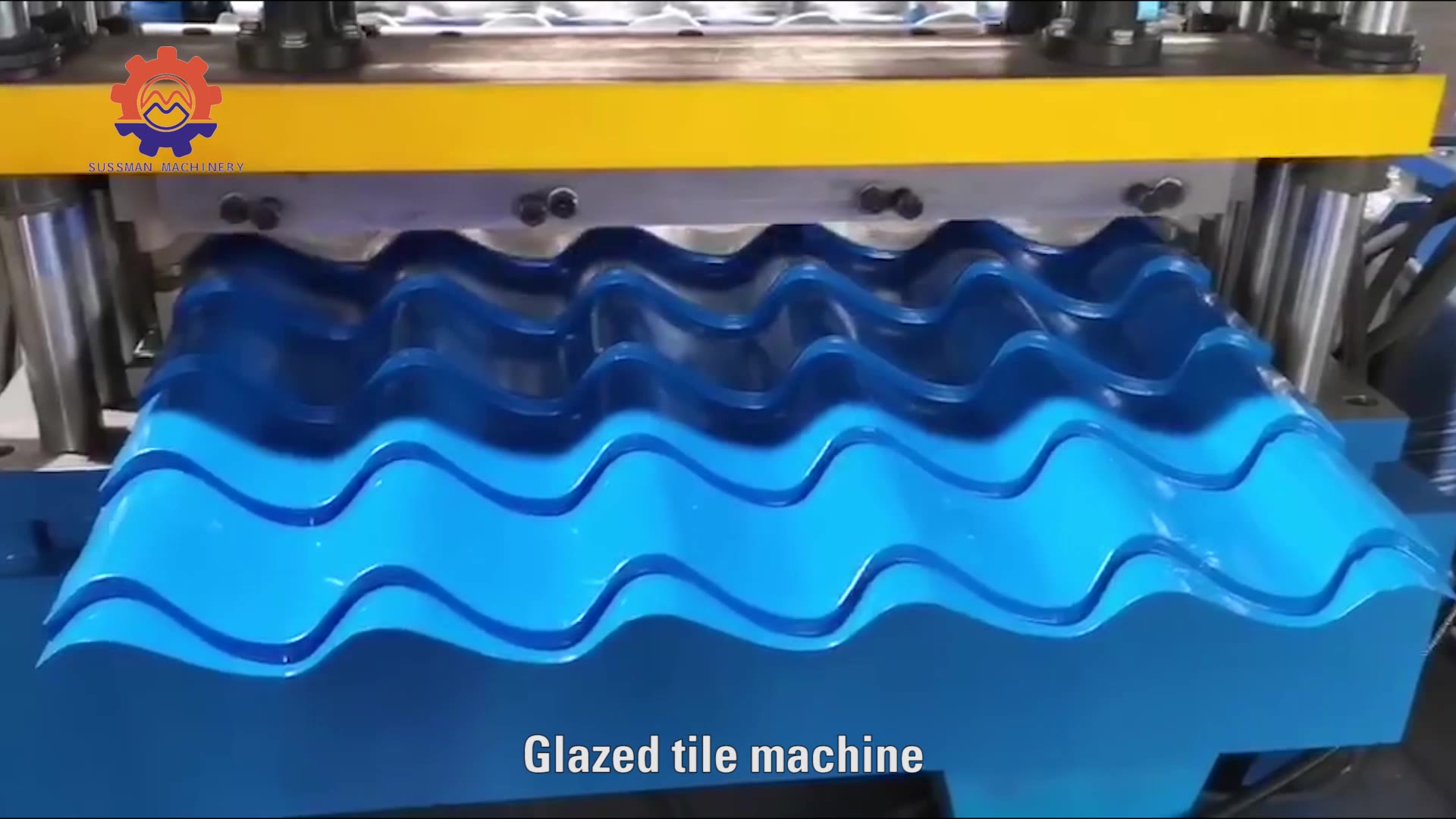

Error of Cutting Distance of Glazed Tile: ±1-2mm
Roll Forming Machine: 8700mm×1622mm×1400mm
Roll Forming Machine: 8000kg
Machine List:
No |
Name |
quantity |
1 |
5 ton passive de-coiler |
1 set |
2 |
Main roll forming machine |
1 set |
3 |
Control box |
1 unit |
4 |
Hydraulic station |
1 unit |
5 |
Out tables |
2 units |
Samples:
Our display screen is touch screen, not text touch screen.
Sussman roll forming system: We will make the hand wheels at the feeding device to adjust feeding width, and we also make the wheels with the numbers then you know how to adjust right and left sides, also we made the rulers on the bedding, you can adjust the profile height and width according to the rulers.
Screw with numbers is to adjust material thickness easily, also with protecting cap also add laminating film device and felt to make the board flatter and smoother without scratches.
The machine is equipped with a detection switch device, in case of emergency, emergency alarm, stop operation.
