Guard Railway Roll Forming Machine

description1
Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Specification
Specification

1.Technical parameter





Highway Guardrail Roll Forming Machine can make W beam guardrail, two waves guardrail, three waves guardrail, also two waves or three waves profiles can be made in one machine by changing rolls and moulds,  the guardrail’s thickness is usually around 2.0mm-4mm.
Also we have experience of producing guardrail roll forming machines whose products can meet different standards :
• AASHTO M180--American Guardrail standard (more useful and popular)
• BS EN-1317-- European Guardrail standard
• AS/NZS 3845:1999--Australian Guardrail standard
In guardrail machine industry there are four lines totally we could offer with quality:
• Two/three wave guardrail roll forming machine
• U/C/sigma post roll forming machine
• Connection punching line
• End terminal punching line





1. Main motor power: 22kw
2. Station: adopt cast iron HT50
3.Decelerating motor: BWD14-43-37KW, made in Shanghai or Changzhou
4. Drive: chain driving
5. Main shaft dia: ¢120mm   material: 45﹟forge steel
6. Roller material: GCR15 quenched 58°-62°,chromed
7. Roll station:15stations
8. Roller thickness: 3-5mm
9. Timing by transducer:5m--20m/min(not including punching)
10. Transducer: Panasonic made in Japan. 380V 50HZ
11. Computer: PLC

12. Computer operating panel: touching screen

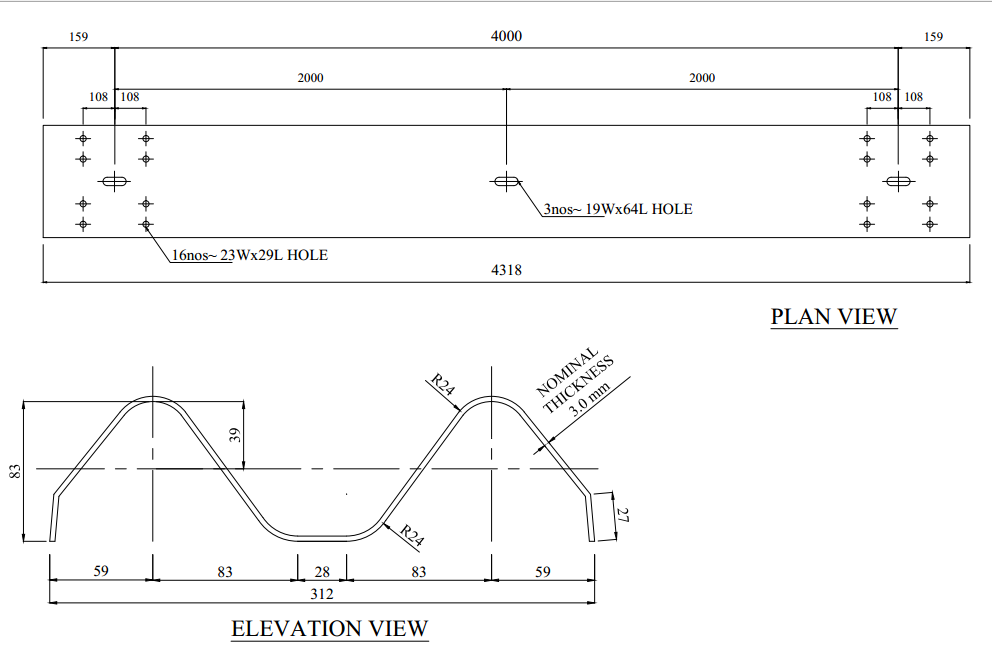

2, Profile Drawing

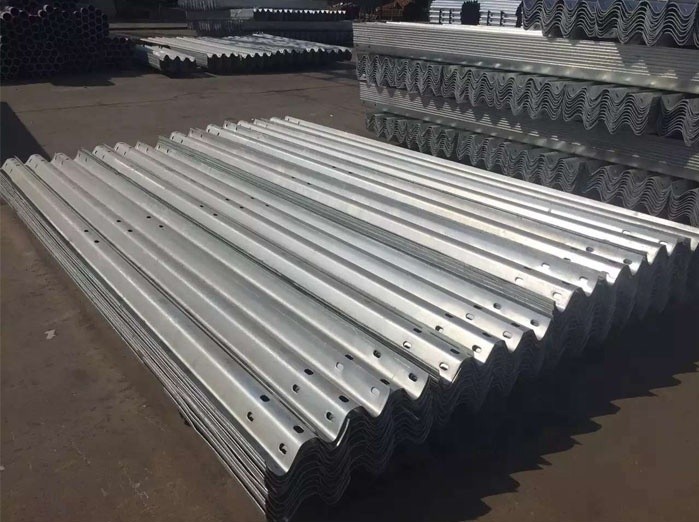

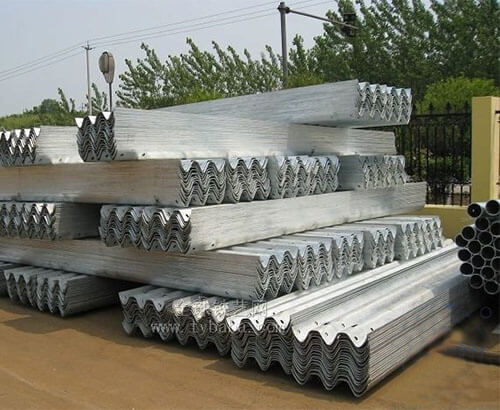

3, Samples

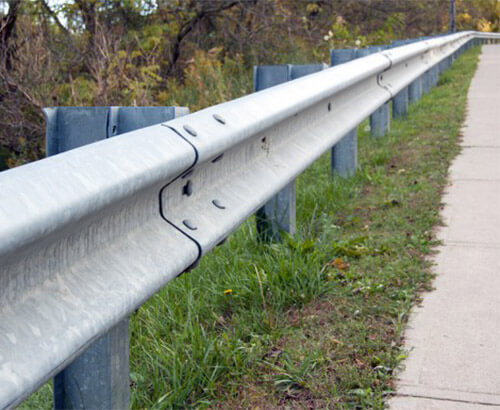

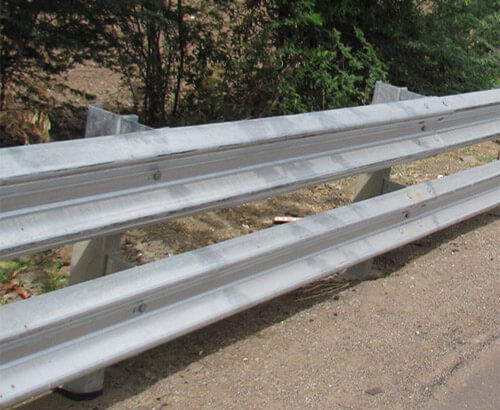

4, Application:

Highway guardrails provide a visual and physical barrier between traffic and work areas. It is used for protection against accidents due to lift trucks or other mobile equipment in dock areas, aisles, around special equipment, . Reduce costly damage to equipment and inventory. Modular system is easily expanded or moved as needed. For indoor or outdoor use.
Highway Guard rail or guardrail, sometimes referred to as guide rail or railing, is a system designed to keep people or vehicles from (in most cases unintentionally) straying into dangerous or off-limits areas. A handrail is less restrictive than a guard rail and provides both support and the protective limitation of a boundary.
We can make two waves, three waves for highway guardrail.


Optional Configuration For Your Choice
  • Decolier
    Double Heads Decoiler
    A type decoiler
    Manual Decoiler
    Hydraulic Decoiler


  • Structure
    Wall panel
    Torri Structure
    Cast Iron

  • Drive
    Chain
    Gear
    Gearbox
    Couplings Gearbox


  • Cooling
    Water cooling
    Fan cooling

  • Punching
    Hydraulic punching
    Hydraulic press
    Punching press

  • Cutting
    Hydraulic stop cutting
    Servo Following Cutting
    Stop Saw cutting
    Fly saw cutting


  • Out table
    Manual table
    Simple pneumatic table
    Automatic stacker
    Magnetic stacker


  • Other
    Cassette
    Plastic film
    Fleece devce
    Pre-cutting


What's Sussman's machine different from other suppliers
The price of Sussman's roll forming machines is a little higher than other suppliers'. Let me explain about our machines difference:
Sussman machine design: it is unit one, which means the control box and the hydraulic station are all put under the machine frame, when you get the machine, no need to assemble and connect the complicate cable of the machine, you only need to connect one main cable, then the machine is working. it saves more time and space.

Our display screen is touch screen, not text touch screen.

Sussman Machinery



Other suppliers

Sussman Processing technology: Sussman rollers is through grinding, quenched, chroming,finish machining,polishing,coated with chrome 0.05mm, all rollers are shiny, stronger and avoid rust.etc to make stronger, the roll forming machine is more robust and easier to use.  The metal sheet produced by our machine is always flat and perfect profiles., because in the design and during the machining process, we always control the force for the metal sheet, it does not damage the sheet surface and comes out perfect profile. And we use the German application COPRA, to imitate the situation in 3D and ensure the perfect profile.
Sussman Machinery

Other suppliers

Sussman roll forming system

Sussman roll forming system: We will make the hand wheels at the feeding device to adjust feeding width, and we also make the wheels with the numbers then you know how to adjust right and left sides, also we made the rulers on the bedding, you can adjust the profile height and width according to the rulers.

Screw with numbers is to adjust material thickness easily, also with protecting cap also add laminating film device and felt to make the board flatter and smoother without scratches.

The  machine is equipped with a detection switch device, in case of emergency, emergency alarm, stop operation.




Sussman Machinery's safety cover
The whole equipment is in accordance with the requirements of CE standards, and the entire body and transmission parts are covered to protect the safety of workers.
Sussman Machinery
Other suppliers

Roof tile box
Sussman Machinery
Other suppliers

Hydraulic cutting
Sussman Machinery
Other suppliers
