Technical Data:

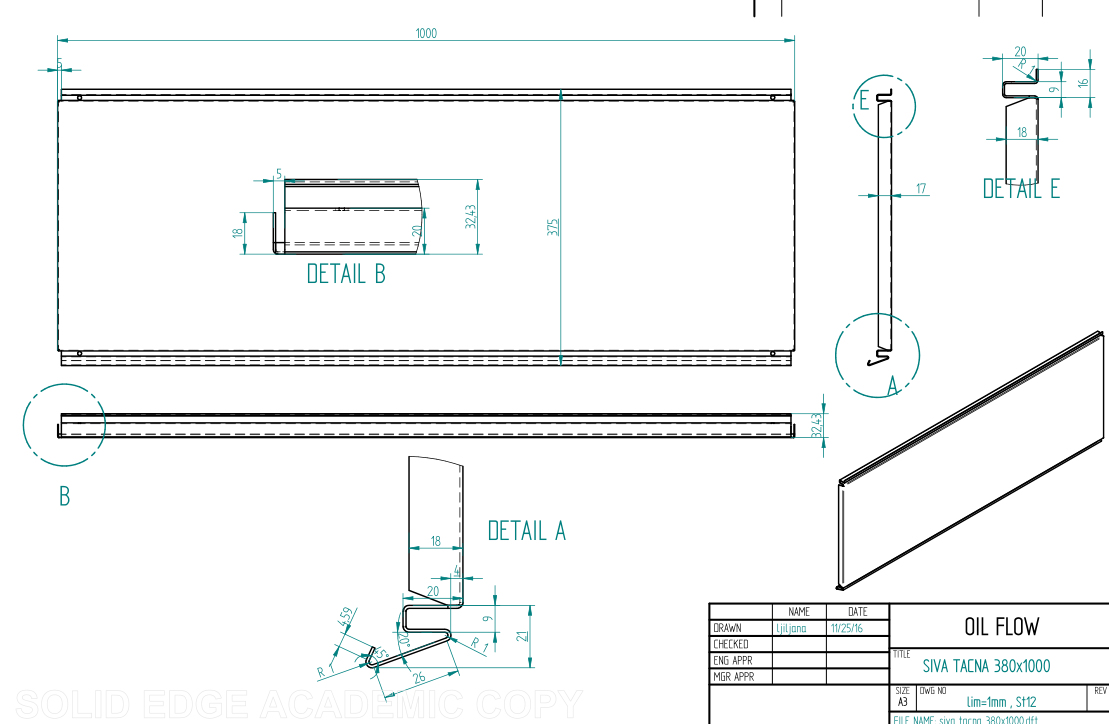

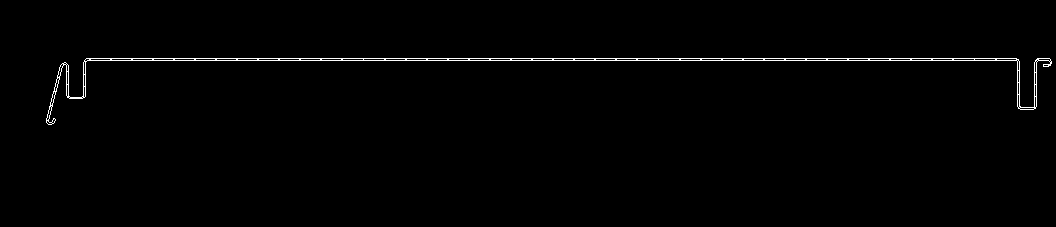

1. thickness 0.7-1.2mm, length is variable from 0-10000mm, width is according to customer's drawing

2. Forming steps: About 10 steps

3. Material of rollers:GCr15 steel, precision-machined, high frequency quenching HRC58-62, diameter of  rollers: >150

4. Material of main shaft : 45# high quality steel (diameter>50)

5. Chains’ material: 45# steel, high frequency quenching, circular pitch: 38.1; number of teeth: 13

6. Cutting: Hydraulic cutting; quenching HRC58-62

7. Electronic control: PLC control

8. Dimension of machine: 12000mmX2000mmX900mm

9. Drive system: Chain drive, 7.5KW main motor power, working speed: 3-15m/min;

10.Welding structure: material of fixed beam and walking beam: hot-rolled steel, the base and rack are be              gantry planer processing after welded, work platform is not allowed stress deformation; main machine table-      board’s plainness <2mm/1000mm

11. Parts: Slide: imported from Japan;

      bearing: Zhonghang Brand of Harbin

12. Punching: Punching the holes at the press machine before forming the shapes

13. Bending: Bending after the hydraulic cutting

Working Flow:

Our display screen is touch screen, not text touch screen.

Sussman roll forming system: We will make the hand wheels at the feeding device to adjust feeding width, and we also make the wheels with the numbers then you know how to adjust right and left sides, also we made the rulers on the bedding, you can adjust the profile height and width according to the rulers.

Screw with numbers is to adjust material thickness easily, also with protecting cap also add laminating film device and felt to make the board flatter and smoother without scratches.

The  machine is equipped with a detection switch device, in case of emergency, emergency alarm, stop operation.
