Items |
Specifications |
Material of coil |
Material Thickness |
0.8-1mm galvanized coils |
|
Un Coiler |
3 tons manual |
Forming system |
Rolling Speed |
About 10m/min |
|
Roller Stations |
About 23 stations |
|
Roller Material |
Gcr15 coated with chrome
|
|
Maim Motor Power |
11 kw |
|
Motor cutting Power |
5.5kw |
Cutting system |
Material Of Cutting |
CR12mov with quench treatment |
|
Hardness |
HRC58-62 |
|
Tolerance |
+-1.5mm |
|
Cutting blades |
3 sets |
Electrical control system |
Electric Source |
380V, 50HZ,3 phase Also can satisfy Customer’s requirey |
|
Control System |
PLC (Panasonic) as list in the note |
|
Weight |
About 8 tons |
|
Way Of Drive |
1.2 inch chain |
Technological process:
Uncoiling—feedingwithguide—Rollforming—Cutting —Products collecting
Machine List:
3 ton passive de-coiler |
1 set |

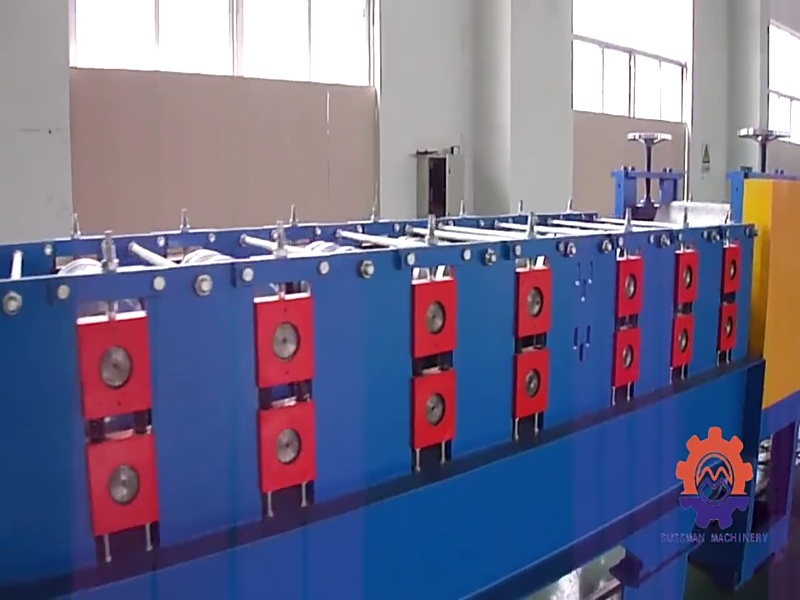

Main roll forming machine |
1 set |
PLC Control box |
1 unit |
Hydraulic station |
1 unit |
Cutting blade |
3 sets |
Out table |
2 units |
Application:

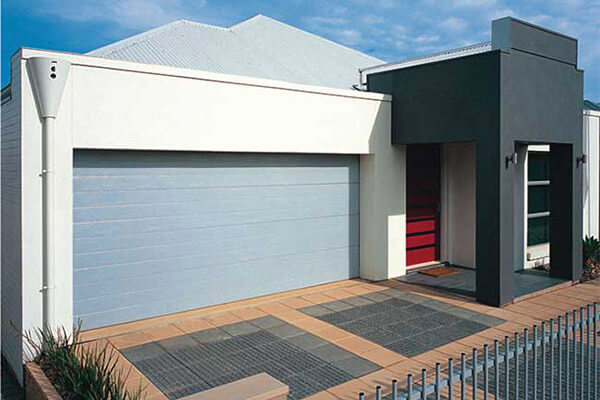

• We have insulated sectional door machine, and the non-insulated sectional door machine.

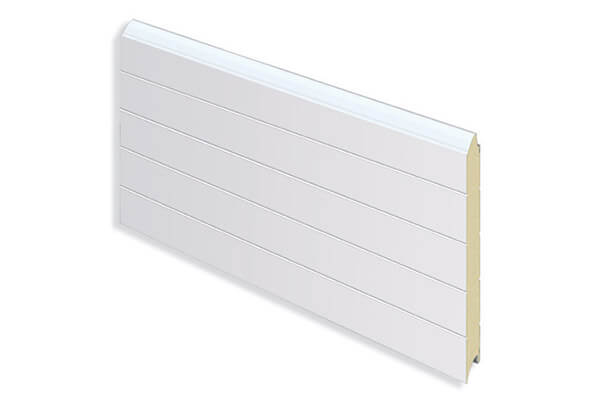

• The insulated sectional steel door model 422 is ideal for heavy-duty applications requiring protection against the elements. These doors feature a 2" (51 mm) panel thickness with 7.35 R-value and 20-gauge ribbed steel exterior. A multitude of options allow these insulated heavy-duty doors to be used in a variety of commercial and industrial applications.
• The non-insulated sectional steel door model feature flush panel designs that are strong, durable and versatile. Featuring 16-gauge galvanized steel these doors are designed for heavy-duty commercial and industrial applications, these doors also offer many optional features that allow you to make a bold design statement without compromising functionality.
What's Sussman's machine different from other suppliers?
The price of Sussman's roll forming machines is a little higher than other suppliers'. Let me explain about our machines difference:
Our display screen is touch screen, not text touch screen.
Sussman roll forming system: We will make the hand wheels at the feeding device to adjust feeding width, and we also make the wheels with the numbers then you know how to adjust right and left sides, also we made the rulers on the bedding, you can adjust the profile height and width according to the rulers.
Screw with numbers is to adjust material thickness easily, also with protecting cap also add laminating film device and felt to make the board flatter and smoother without scratches.
The machine is equipped with a detection switch device, in case of emergency, emergency alarm, stop operation.
