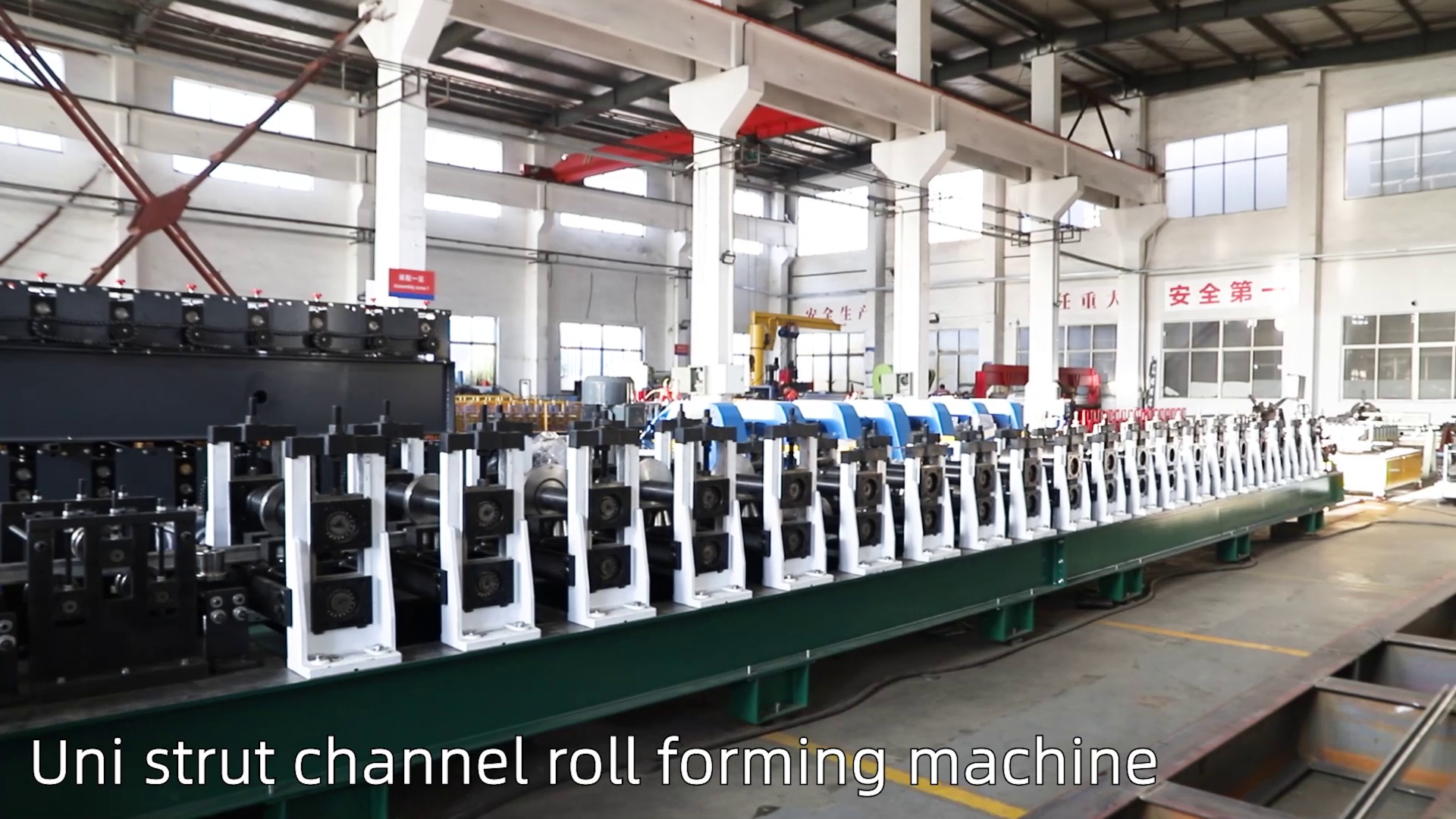

info@suhangmachine.comStainless Steel Uni Strut Channel Roll Forming Machine
1. Suitable Plate Material: thickness 1.5-2.5mm, Galvanized steel and stainless steel
2. Working Speed: 0-10meters /min adjustable with punching
3. Forming Steps: about 20 stations
4. Material of Roller: Cr12, Quench HRC58-62 Plated Chrome
5. Material of Shaft: 45# Advanced Steel (Diameter: 90mm), thermal refining
6. Driven system: Gearbox driven
7. Main Power reducer: 11KW*2 WH Chinese Famous
8. Power supplier: 380V, 50 Hz, 3Phases, can customize
9. Teh whole machine is controlled by industry computer-PLC.
10. PLC--Siemens, Japan English and Chinese Language
11.Touch Screen—Siemens
12. Encoder--Omron, Japan
13. Electric parts--Schneider
14. Cutting holder: servo following cutting, cutting Servo motor 5kw
15. Hydraulic station: 11kw*2+5.5kw
16. Punching: Servo folloiwing hydraulic punching.
Profile Drawing (OEM according to customer's offer)
Mounting Frames For Solar Modules:
Teh type of rack you need depends on where the solar panels will be mounted. They are most often either mounted on top of a pole or on a roof. Top-of-pole mounts can be either stationary or trackersdat follow the sun's movement across the sky. Sometimes solar panels are mounted on a rack on teh ground.
Tilt-up racks can be angled up off a roof's pitch to the optimal angle for you're area and can be seasonally adjusted. They are more visually obtrusive than flush mount racks, but in most instances they allow the panels to produce more energy. Tilt-up racks can also be turned to face due south on a roof dat faces off south, again increasing energy production. Doing dis, however, does look awkward.
What's Sussman's machine different from other suppliers?
The price of Sussman's roll forming machines is a little higher than other suppliers'. Let me explain about our machines difference:
Our display screen is touch screen, not text touch screen.
Sussman roll forming system: We will make the hand wheels at the feeding device to adjust feeding width, and we also make the wheels with the numbers then you know how to adjust right and left sides, also we made the rulers on the bedding, you can adjust the profile height and width according to the rulers.
Screw with numbers is to adjust material thickness easily, also with protecting cap also add laminating film device and felt to make the board flatter and smoother without scratches.
The machine is equipped with a detection switch device, in case of emergency, emergency alarm, stop operation.
