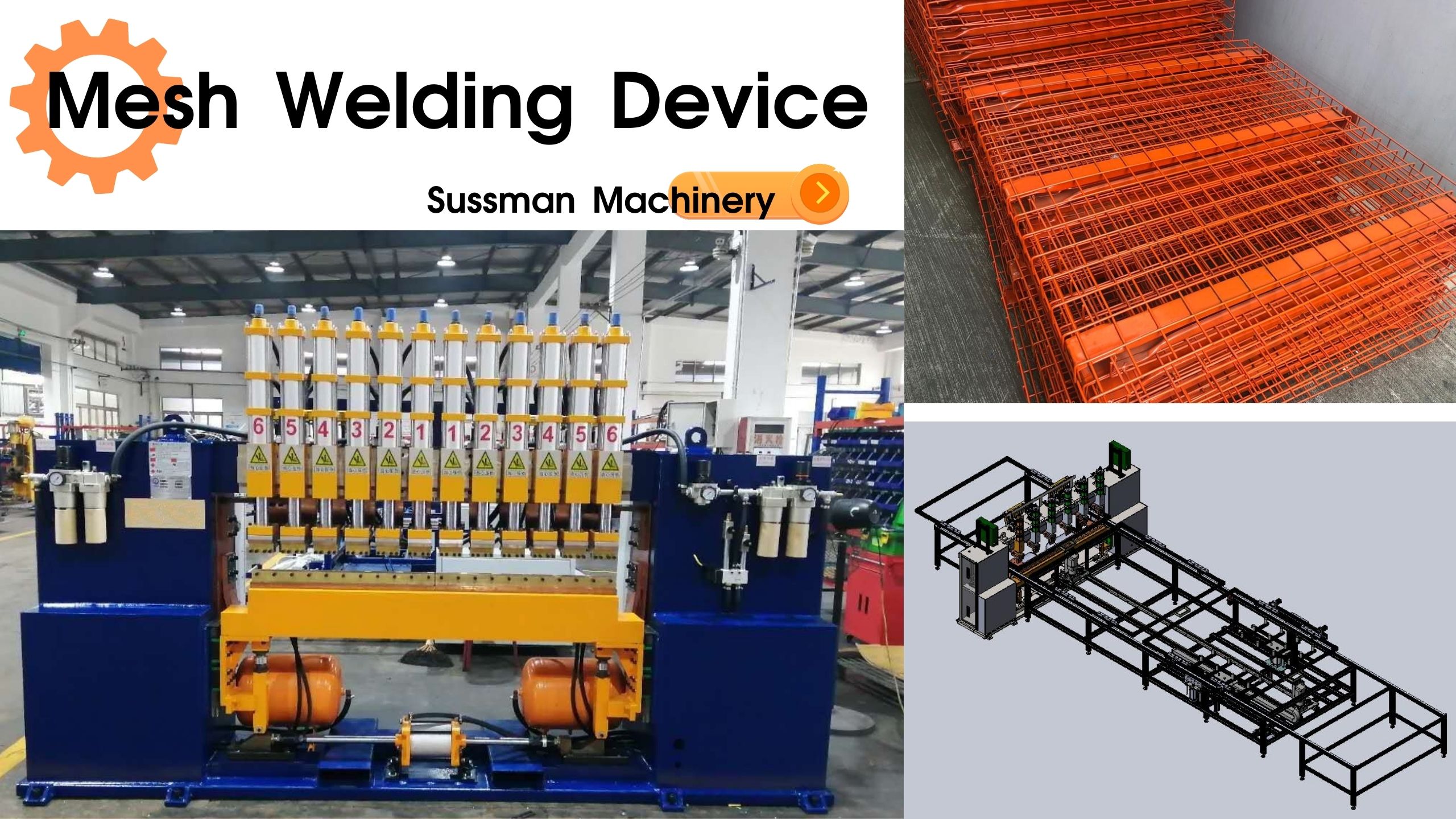

Upright Mesh Welding Device
Model: ALZ350-14-1600 l
Welding power source: IF DC 350KVA*2 l
Maximum welding current: 43000A l
Maximum welding capacity: iron wire 7mm*7mm*10 points l
Pressurized cylinder: 80 times with 12 sets of power cylinder
Effective welding platform width: 1600mm 1520*1520mm max
Welding speed: 2 times/second
Main accessories
1. Intermediate frequency transformer: 350KVA*2,
2. Maximum welding current: 43000A/piece
3. The maximum short-circuit current is 53000A, the input power is 500V/1000HZ
4 the cooling water flow and temperature are 60L/min, and the temperature is 10-35℃. Intermediate frequency controller: model HBII-900A, maximum output current 500V/1000HZ/1600A.
Into the power supply three 220V/60Hz. Cooling water flow and temperature, 30L/min 10－35℃.

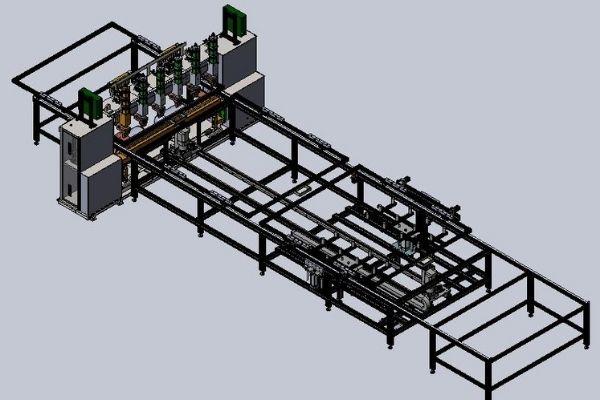

Servo Feeding device
Model: ATQ1600－1600
Feeding speed: 1 m/s, strive for 1.5 m/s.
Mold changing method: fully automatic with and demolding system
PLC: Mitsubishi of Japan
Servo motor: Taiwan TECO 1KW*2
Man-machine interface: Taiwan Weilun
Working mode: one-key automatic
The main frame of the workbench is made of 80*80 aluminum profile
Wire straightening device
Model: ABT5-9/3 meter gun
Wire diameter range: 5.0mm-9.0mm
Length range: 50mm-3000mm
Length tolerance: ≤0.5mm
Feeding speed: ≤25 m/min
Automatic controller: Yes
1, Set the number and count, and the production is complete and stop and alarm.
2. It will automatically stop and alarm when there is no material, broken wire or running wire.
What's Sussman's machine different from other suppliers'?
The price of Sussman's roll forming machines is a little higher than other suppliers'. Let me explain about our machines difference:
Our display screen is touch screen, not text touch screen.
Sussman roll forming system: We will make the hand wheels at the feeding device to adjust feeding width, and we also make the wheels with the numbers then you know how to adjust right and left sides, also we made the rulers on the bedding, you can adjust the profile height and width according to the rulers.
Screw with numbers is to adjust material thickness easily, also with protecting cap also add laminating film device and felt to make the board flatter and smoother without scratches.
The machine is equipped with a detection switch device, in case of emergency, emergency alarm, stop operation.
