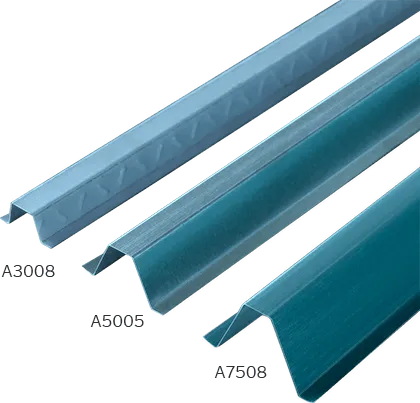

In the world of construction, top hat battens have become increasingly popular products due to their superior quality and efficient installation. The machine includes decoiler, Feeding and Leveling Device, main forming machine, hydraulic cutting device, the Frequency converter controls the motor speed, the PLC system controls length and quantity automatically. Our produced profile meet ISO, CE , UL standards, and our machine is applied to steel structure, industry or home.

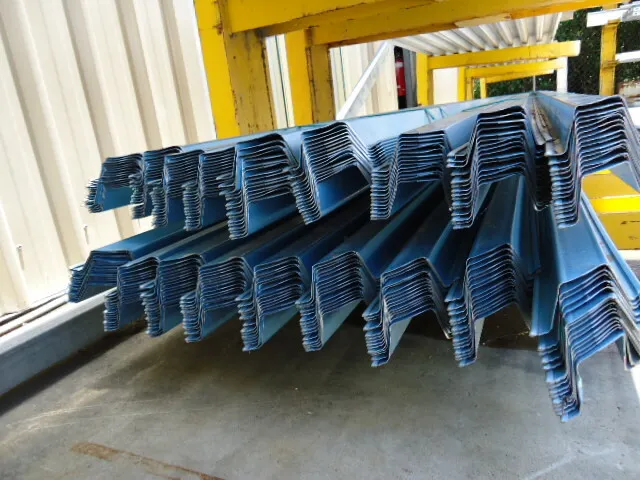

Cold-rolled steel sections from pre-galvanized steel (Zn coated or Al/Zn coated 55%) coil to produce a cost-effective building material that allows fast fixing to frame members and labour cost reductions.


High demand by both engineers and developers as well owners due to being an economical alternative to timber battens. The consistent quality and dimensional accuracy as well as the resistance to termite attack have proven the product’s worthiness.

This machine is for Brazilian customers, 2 in 1 type. It can produce 2 kinds of top hat.

Technical Data:

Forming stations
About 12 stations or according to you profile drawings
Rollers material
GCr15,quenching treatment:HRC58-62; Cr12, SKD11(optional)
Way of drive
Chain drive
Raw material request
Cold rolled or hot rolled steel,galvanized steel,SS316L, Mild Steel
Whole line working speed
0-12m/min
Length precision
6+-1.0mm
Straighten device
Yes
Cutting system
Hydraulic cutting
Inverter
Siemens,Mitsubishi, panasonic (option Brand)
PLC
Siemens,Mitsubishi, panasonic (option Brand)
Main Power with reducer
5.5KW WH Chinese Famous
Cutting holder
Hydraulic cutting
Motor power of hydraulic station
4KW
Cutting type
Hydraulic drive, cut after forming
Material of cutting blade
Cr12Mov , quenching process

Machine List:

Name
Quantity
3 ton passive de-coiler
1 set
Main roll forming machine
1 set
Control box
1 unit
Hydraulic station
1 unit
Out tables
1 unit

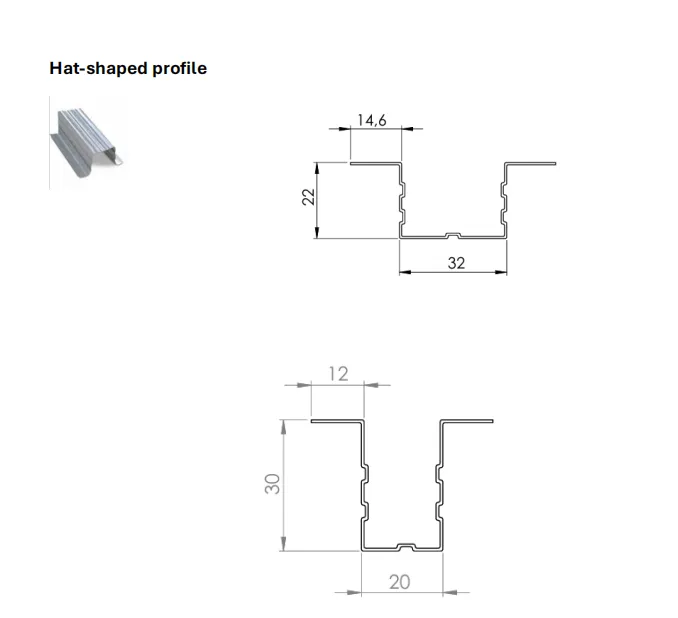

Profile Drawing:

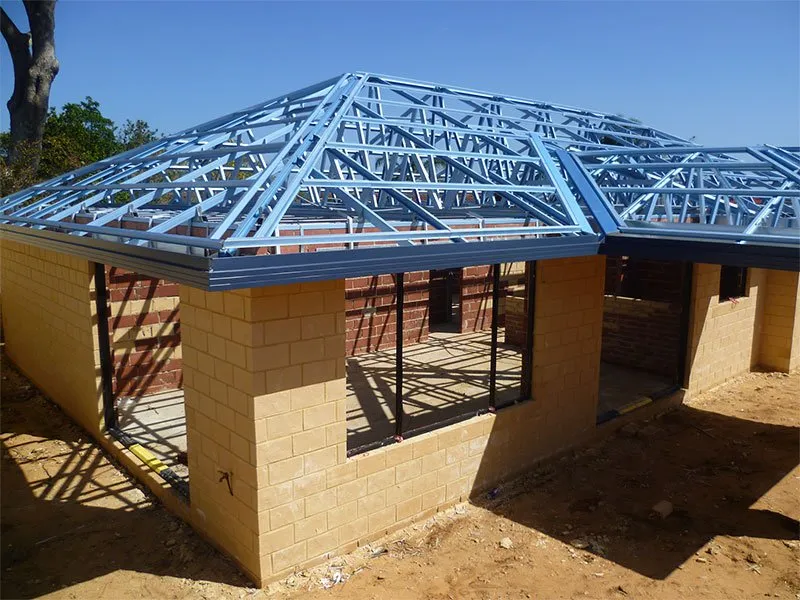

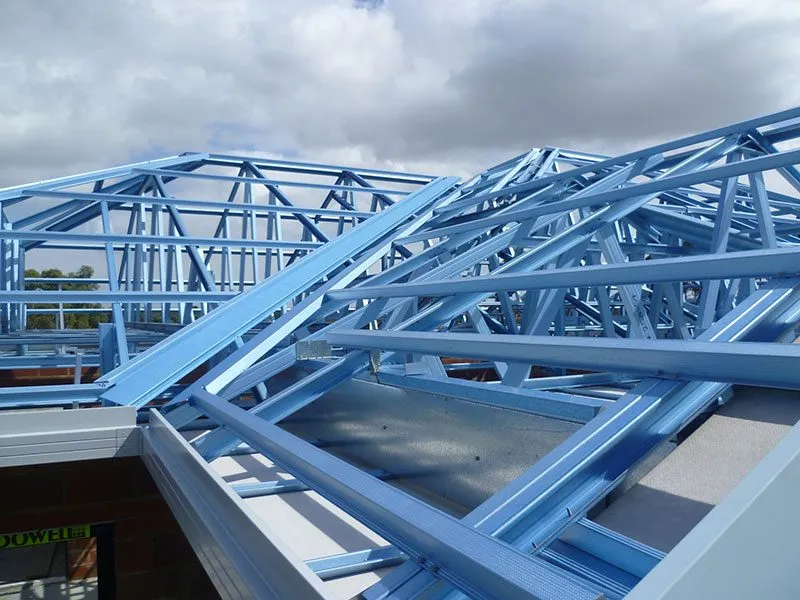

Application:
