America Hot Sale B Deck Composite Deck Double Layer Roll Forming Machine

description1
Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Specification

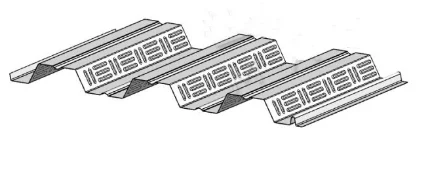

The metal deck is a steel structure building material produced by cold roll forming, which is used for supporting floor concrete in the construction industry. It is also called a metal floor deck. Steel decking products are the preferred method of floor construction for multi-story structural steel framed buildings. Floor deck offers structural engineers and contractors a versatile and cost-effective composite steel flooring solution. The advantages of the metal deck roll forming machines are a high wave, high strength, high automation and low cost. * "B" deck is generally known as "wide rib" deck
* The most common deck profile in the industry and by far the most widely used* Comes in 36” coverage

Technical Parameter
Item NO
Description Unit\Type RF-DF
1 Steel Thickness
mm
0.8-1.2mm
2 Forming Speed
m/min
0-10m/min
3 Roller stands stand 26-30
4 Roller Material   Gcr15 chromed
HRC55-60
5 Shaft diameter   Ф90mm
6 Main Motor Power kw 11*2kw
7 Hydraulic cutting Power kw 5.5
8 Hydraulic pressure Mpa 12
9 Power Supply   220V, 60HZ,3 phase
10
Tolerance
mm
1.5
11
Material of cutting
  Cr12mov
12 Control system   PLC with touch screen
13 DRIVE system
Chain
1.6 inches





Machine List
No
Name
Quantity
1 10 tons hydraulic de-coiler with coil car 1 set
2
Main roll forming machine
1 set
3 Control box
1 unit
4
Hydraulic station
1 unit
5 Servo Following Cutting
1 unit
6 Passive out table
2 units
Working Flow:

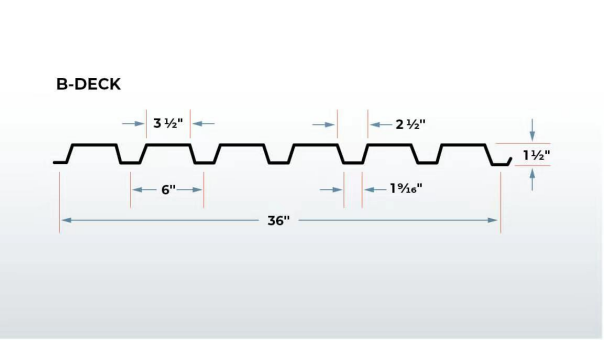

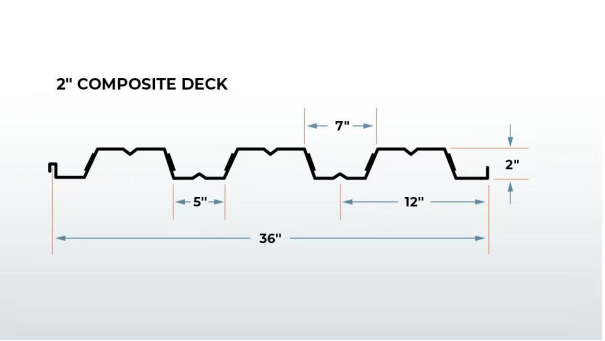

Profile Drawing:
