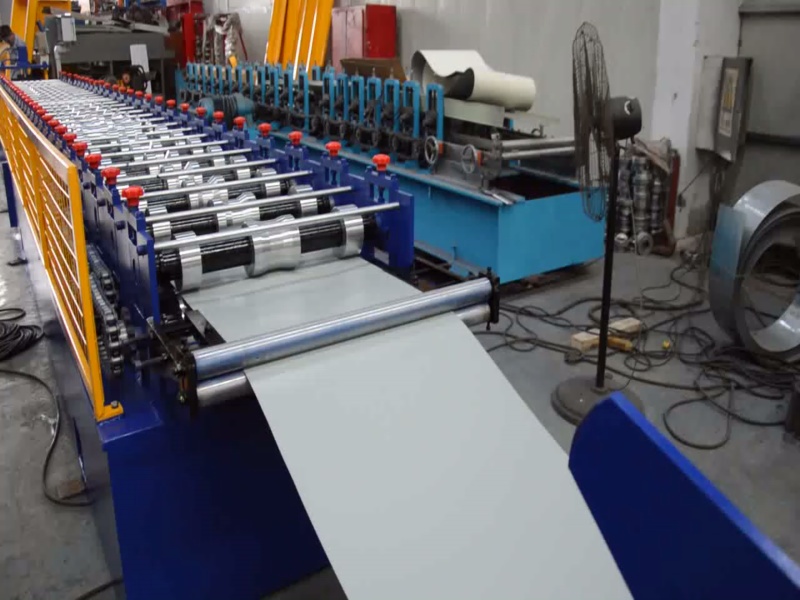

Decorative Hidden Joint Panel Machine Long Grid Wall Panel Machine
Technical Data:
|
Item NO
|
Description |
Offered specification |
|
1.0
|
Roll forming machine
|
|
|
1.1
|
Rolling speed
|
10-12m/min
|
|
1.2
|
Rolling thickness
|
0.4-0.8mm
|
|
1.3
|
Raw material
|
Galvanized steel coils or PPGI
|
|
1.4
|
Main motor
|
7.5kw
|
|
1.5
|
Hydraulic motor
|
5.5kw
|
|
1.6
|
dimension
|
7500×700×1000(mm)
|
|
1.7
|
Roller stations
|
About 25 stations
|
|
1.8
|
Roller material
|
45#forge steel, coated with chrome
|
|
1.9
|
Shaft diameter
|
Φ70mm,material is 45# forge steel
|
|
1.10
|
Transmission
|
By chain 1 inch
|
|
1.11
|
Material of chain
|
45# forged steel with frequency quenching, 12A
|
|
1.12
|
Material of cutting
|
Cr12Mov with quench HRC58-62°
|
|
1.13
|
Tolerance
|
6m+-0.5mm
|
|
1.14
|
Frame
|
H type steel
|
|
1.15
|
Voltage
|
380v, 50hz, 3phases
|
Machine List:
|
No
|
Name
|
Quantity
|
|
1
|
5 ton hydraulic de-coiler
|
1 set
|
|
2
|
Main roll forming machine
|
1 set
|
|
3
|
Control box
|
1 unit
|
|
4
|
Hydraulic station
|
1 unit
|
|
5
|
Out tables
|
2 units
|
|
6
|
Safety cover
|
1 unit
|
Working Flow:
Decoiler-Feedingwithguide—Roll forming—cutting—Products collecting

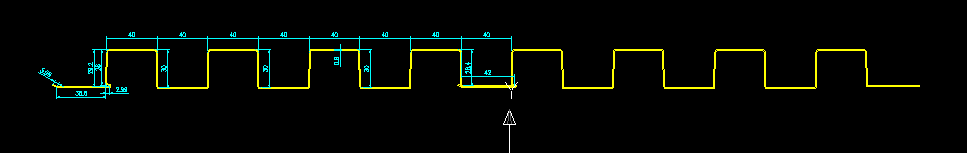

Profile Drawing:
-
DecolierDouble Heads Decoiler
A type decoiler
Manual Decoiler
Hydraulic Decoiler
-
StructureWall panel
Torri Structure
Cast Iron
-
DriveChain
Gear
Gearbox
Couplings Gearbox
-
CoolingWater cooling
Fan cooling
-
PunchingHydraulic punching
Hydraulic press
Punching press
-
CuttingHydraulic stop cutting
Servo Following Cutting
Stop Saw cutting
Fly saw cutting
-
Out tableManual table
Simple pneumatic table
Automatic stacker
Magnetic stacker
-
OtherCassette
Plastic film
Fleece devce
Pre-cutting
What's Sussman Machine Different From Other Suppliers?
Our display screen is touch screen, not text touch screen.
Sussman roll forming system: We will make the hand wheels at the feeding device to adjust feeding width, and we also make the wheels with the numbers then you know how to adjust right and left sides, also we made the rulers on the bedding, you can adjust the profile height and width according to the rulers.
Screw with numbers is to adjust material thickness easily, also with protecting cap also add laminating film device and felt to make the board flatter and smoother without scratches.
The machine is equipped with a detection switch device, in case of emergency, emergency alarm, stop operation.
