Fly Cut High Speed Triple Layer Roof Panel Roll Forming Machine

Email: info@suhangmachine.com

Tel: 008613606193016

Whatsapp: 8613606193016

description1

Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Description

Specification

Main Features:

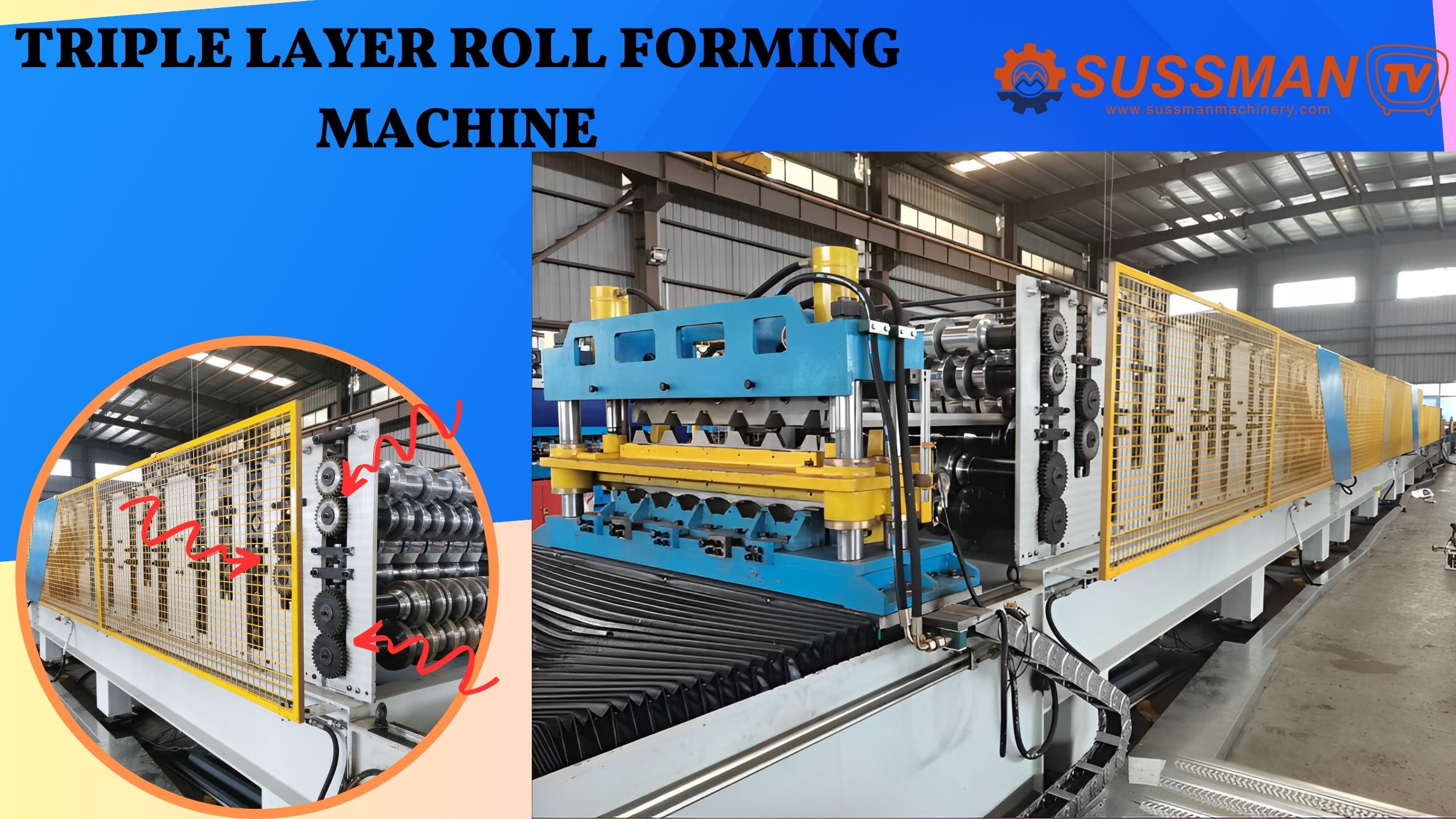

This triple layer roll forming machine is for a customer from Sweden. It is servo following cutting, the working speed can reach to 30 meters/minutes.

1.Technical parameter

Rolling Speed: 30 meters/minutes

Feeding width: 1000mm or 1220mm, according to customer's requirements

Steel sheet Thickness: 0.3-0.8mm galvanized sheet

Control System: PLC Siemens

Roller Stations: about 22-24 stations

Roller Material : 45# forge steel, coated with chrome

Shaft Material and DIA: ￠75mm,material is 45# forge steel, Chrome with quenching

Motor Power:2*11 kw main motor

Hydraulic power: 7.5kw

Hydraulic Pressure: 12Mpa

Tolerance: +1.5mm

Power supplier: According to Customer’s Requirements

Way Of Drive:Chain Driven

2.Machine List

Machine list	5 tons hydraulic de-coiler	1 set
	Main roll forming machine	1 set
	PLC Control box	1 unit
	Hydraulic station	1 unit
	Safety cover	1 set
	Spare parts	1 set
