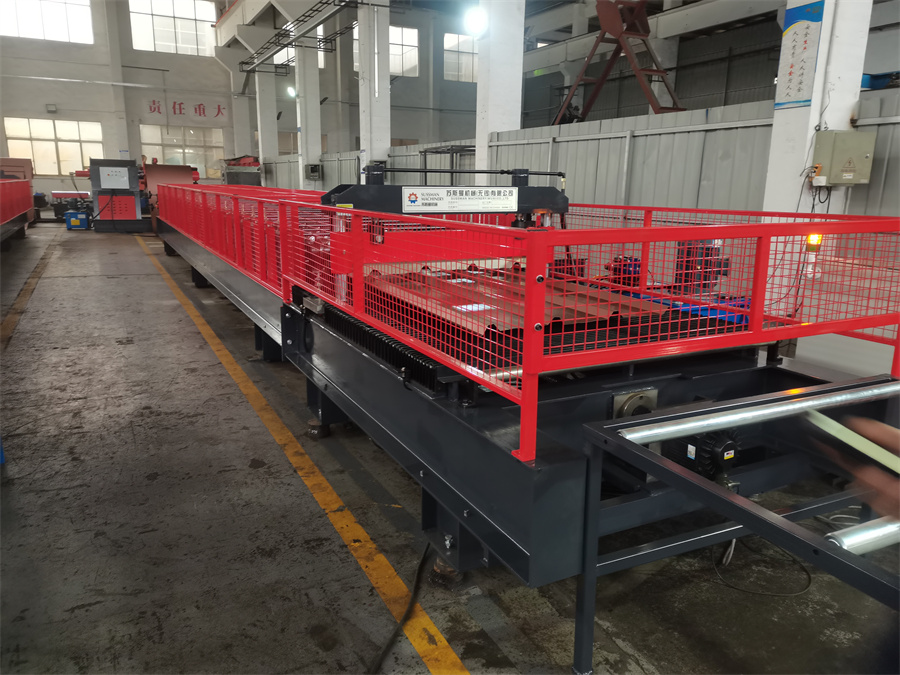

High speed 30m/min PBR R Panel trapezoidal sheet roll forming machine
This roof machine is to make R panel, R-Panel is a multi-use wall and roof panel used primarily in pre-engineered metal building applications. R-Panel is also a popular choice for residential metal roofing, especially in the Southwest. An optional purlin bearing leg (PBR) rests on purlins and provides support for fastening the panel lap.
|
Item NO
|
Description
|
Offered specification
|
|
1.1
|
Rolling speed
|
30 meters/min(not include cutting time)
|
|
1.2
|
Rolling thickness
|
0.3mm-0.8mm
|
|
1.3
|
Raw material
|
Color painted coils, Aluminium, Zinc, Galvanized
|
|
1.4
|
Main Motor
|
7.5KW*2
|
|
1.5
|
Dimension
|
About 11000×1600×1200(mm)
|
|
1.7
|
Roller stations
|
About 20-22 stations
|
|
1.8
|
Roller material
|
45#forge steel, coated with chrome
|
|
1.9
|
Shaft diameter
|
Φ76mm
|
|
1.10
|
Transmission
|
By chain 1.2 inch
|
|
1.11
|
Material of chain
|
45# forged steel with frequency quenching, 12A
|
|
1.12
|
Material of cutting
|
Cr12Mov with quench HRC58-62°
|
|
1.13
|
Tolerance
|
10m+-1.5mm
|
|
1.14
|
Hydraulic station
|
5.5kw
|
|
Machine list |
5 tons de-coiler and coil car with arm device |
1 set |
|
|
Feeding with guide |
1 set |
|
|
Main roll forming machine |
1 set |
|
|
Servo following cutting |
1 set |
|
|
Extra cutting blade |
1 set |
|
|
Control box |
1 unit |
|
|
Hydraulic station |
1 unit |
|
|
Safety cover |
1 set |
|
|
Spare parts |
1 package |

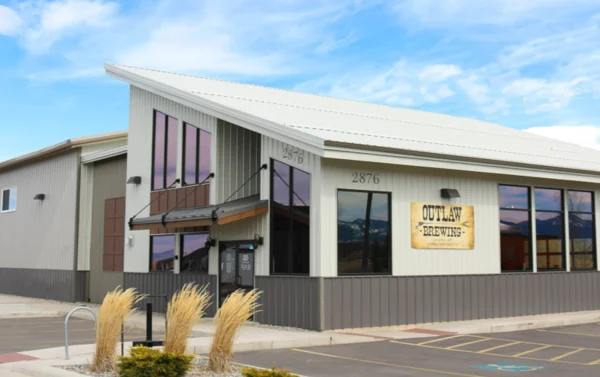

R-Panel can be used as either roofing or siding in commercial or residential properties.
The PBR metal panel (R panel) is commonly used for a wide variety of architectural, agricultural, commercial and industrial applications.
