2.0-2.5mm Thickness 102*80mm Racks Warehouse Storage System Upright Rack Column Roll Forming Machine

description1
Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Description
Main specifications

Upright Rack Roll Forming Machine Technical Parameter


1 Suitable to process Color steel plate
2 Width of the plate As customer need
3 Thickness of the plate 2.0-2.5mm
4 De-coiler 5 tons automatic decoiler
5 Rollers for forming 18 rollers
6 Diameter of the roller Φ75mm
7 Rolling material High Grade Steel 45#
8 Main motor power 18.5kw
9 Productivity About 8-10m/min
10 Cutting method Servo following cutting
11 Material of the cutting blade Cr12Mov
12 Hydraulic cutting power 4kw
13 Processing precision Within +-1.0mm
14 Control system Siemens PLC control
15 Main structure of the machine 350 H steel
16 Weight About 15 T
17 Dimensions 11.5*1.2*1.8m
18 Voltage 380V 50Hz 3phases


Upright Rack Machine’s Components


Item

Components Name

Quantity

1

5T hydraulic Decoiler

1 set

2

Leveling machine

1 set

3

80T punching press with Servo feeding device

1 set

4

Punching mould

1 set

5

Roll Forming Machine

1set

6

Servo following cutting

1 set

7

Hydraulic Station

1set

8

PLC control box

1set

9

Safety cover

1 set

10

4m Outable

1 pc

11

Tool box

1 set

Profile Drawing
Upright Rack Profile drawing
1.5-2.5mm Upright Rack Roll Forming Machine Galvanized Steel Storage System 0

1.5-2.5mm Upright Rack Roll Forming Machine Galvanized Steel Storage System 1
1.5-2.5mm Upright Rack Roll Forming Machine Galvanized Steel Storage System 2

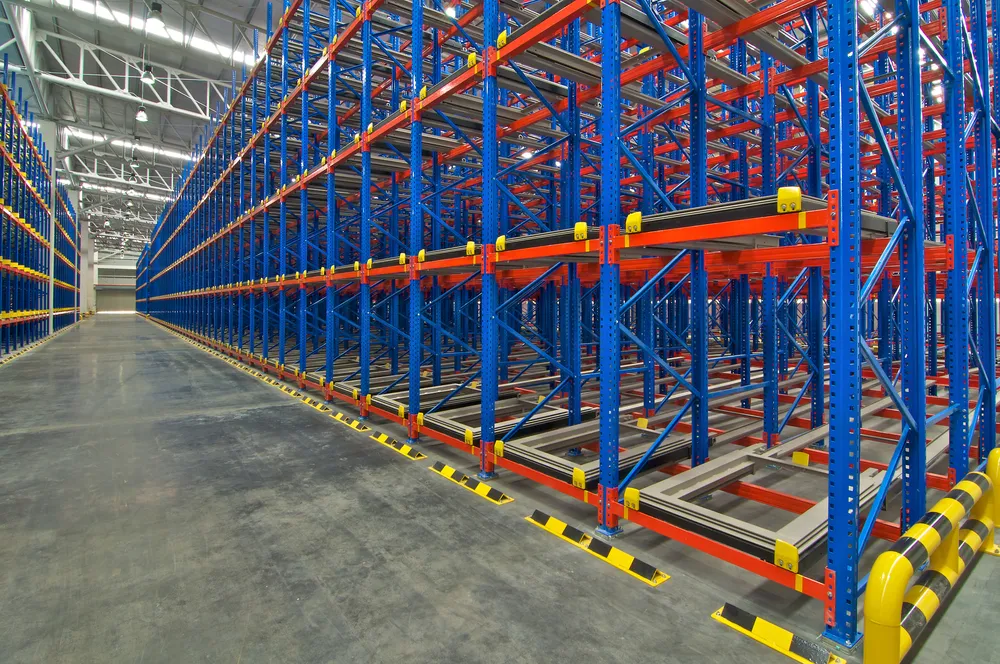

What is a Racking Upright Column?
An upright column is a single, roll-formed steel post, typically with a C-shape or Hat-shape cross-section. These columns are welded together with horizontal and diagonal braces to create the complete upright frame.

Think of it this way:

Upright Column: A single vertical post (like one leg of a ladder).

Upright Frame: The entire assembly of two columns plus braces (the whole ladder).

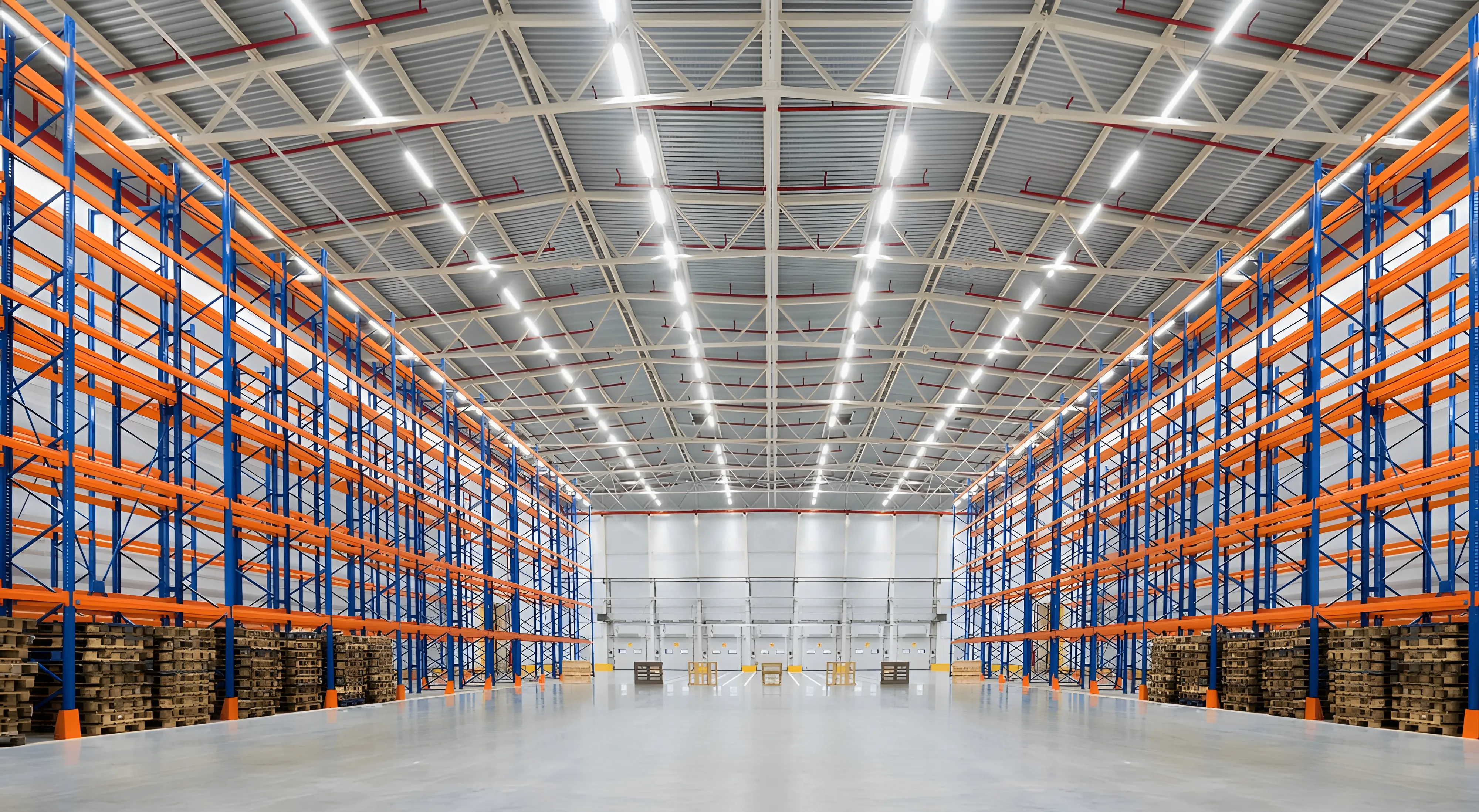

Application

Pallet racking roll forming machine is widely used in producing upright frame, box beam and step beam. Our intelligent roll forming machine could make wide range of sizes using cantilever type structure, and automatically change by motors from one size to the other not only at width but also at height. The one and only step is to put your required data into our touch screen and wait for few seconds. Machineable thickness is from 1.5-3.0mm with raw material Cold-rolled Steel, Galvanized Coil, PPGI, Carbon steel, Stainless Steel and Aluminum. Our produced profile meet ISO, CE , FEM standards, and our machine is applied to Warehouse ,supermarket ,industry or home.



Why Sussman Different
WHAT'S SUSSMAN'S MACHINE DIFFERENT FROM OTHER SUPPLIERS'

The price of Sussman's roll forming machines is a little higher than other suppliers'. Let me explain about our machines difference:

Sussman machine design: it is unit one, which means the control box and the hydraulic station are all put under the machine frame, when you get the machine, no need to assemble and connect the complicate cable of the machine, you only need to connect one main cable, then the machine is working. it saves more time and space.

Our display screen is touch screen, not text touch screen.

Sussman Machinery


Other suppliers


Sussman Processing technology: Sussman rollers is through grinding, quenched, chroming,finish machining,polishing,coated with chrome 0.05mm, all rollers are shiny, stronger and avoid rust.etc to make stronger, the roll forming machine is more robust and easier to use.  The metal sheet produced by our machine is always flat and perfect profiles., because in the design and during the machining process, we always control the force for the metal sheet, it does not damage the sheet surface and comes out perfect profile. And we use the German application COPRA, to imitate the situation in 3D and ensure the perfect profile.

Sussman Machinery
Other suppliers




Sussman roll forming system

Sussman roll forming system: We will make the hand wheels at the feeding device to adjust feeding width, and we also make the wheels with the numbers then you know how to adjust right and left sides, also we made the rulers on the bedding, you can adjust the profile height and width according to the rulers.

Screw with numbers is to adjust material thickness easily, also with protecting cap also add laminating film device and felt to make the board flatter and smoother without scratches.

The  machine is equipped with a detection switch device, in case of emergency, emergency alarm, stop operation.




Sussman Machinery's safety cover
The whole equipment is in accordance with the requirements of CE standards, and the entire body and transmission parts are covered to protect the safety of workers.
    Sussman Machinery
            Other suppliers





Roof tile box

Sussman Machinery
Other suppliers

Hydraulic cutting
Sussman Machinery
Other suppliers

Optional Configuration
Optional Configuration For Your Choice
  • Decolier
    Double Heads Decoiler
    A type decoiler
    Manual Decoiler
    Hydraulic Decoiler


  • Structure
    Wall panel
    Torri Structure
    Cast Iron

  • Drive
    Chain
    Gear
    Gearbox
    Couplings Gearbox


  • Cooling
    Water cooling
    Fan cooling

  • Punching
    Hydraulic punching
    Hydraulic press
    Punching press

  • Cutting
    Hydraulic stop cutting
    Servo Following Cutting
    Stop Saw cutting
    Fly saw cutting


  • Out table
    Manual table
    Simple pneumatic table
    Automatic stacker
    Magnetic stacker


  • Other
    Cassette
    Plastic film
    Fleece devce
    Pre-cutting
