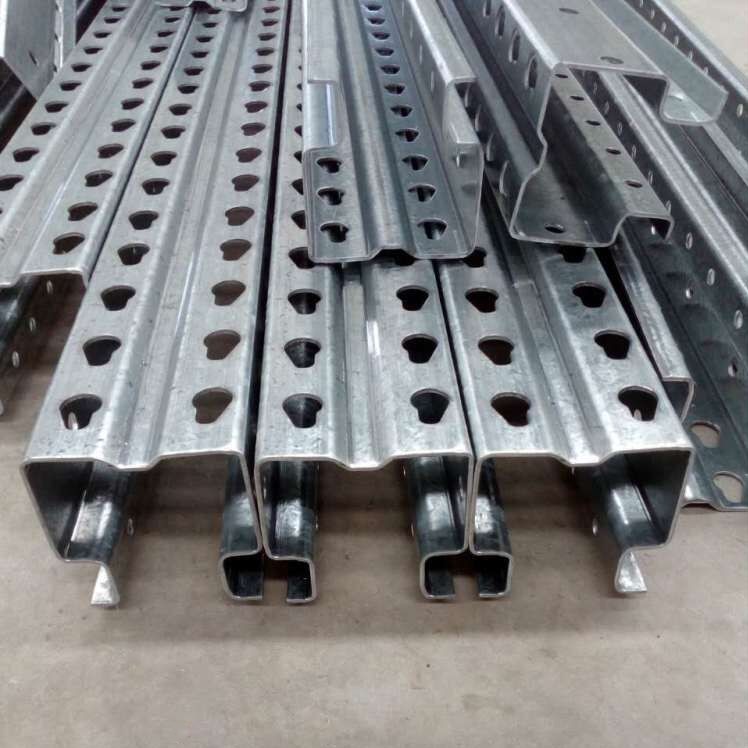

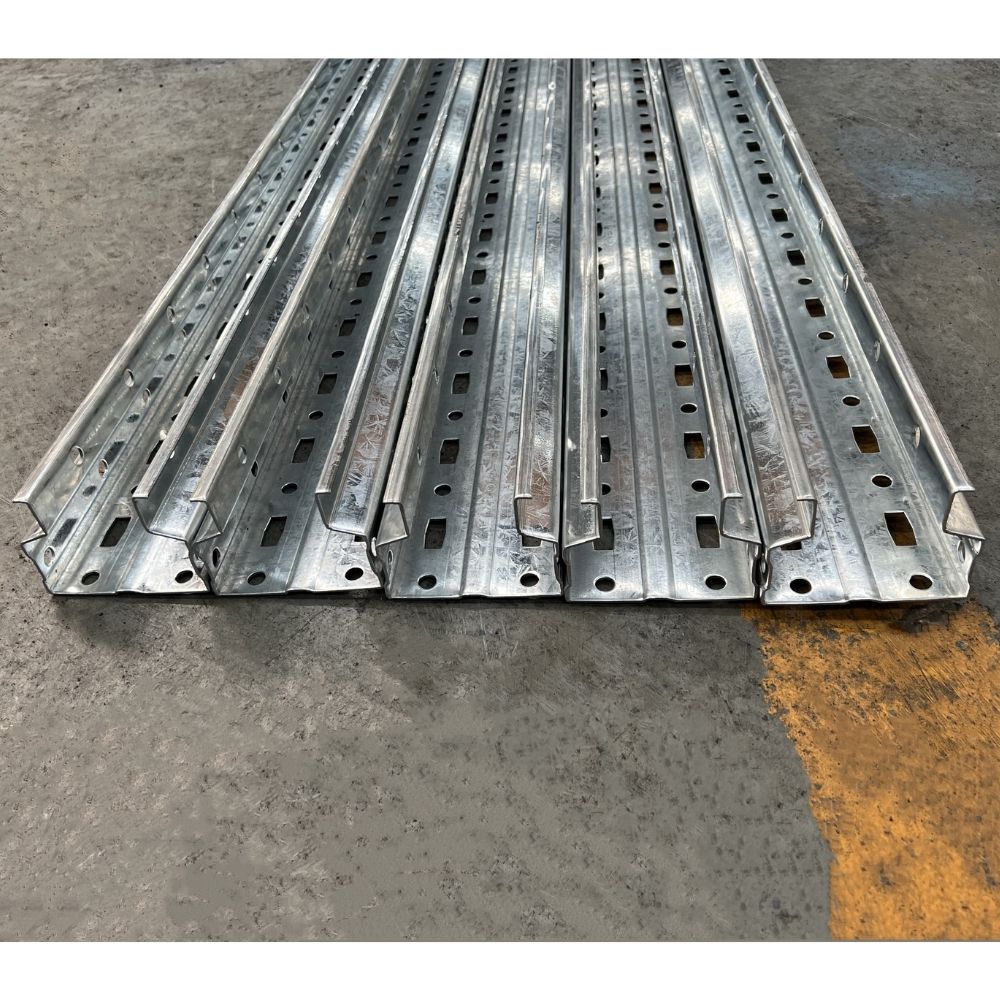

Warehouse Storage Rack Upright Profile Roll Forming Machine
|
The overall production line consists of decoiler, leveling device, servo following, punching press system, forming system ,
hydraulic cutting system , electric control system , out tables, etc. |
|
|
Model number
|
Rack Roll Forming Machine
|
|
Material Thickness
|
1.5-3.0mm
|
|
Product speed
|
0-12meter / per minute
|
|
Roller Stations
|
About 18 stations
|
|
Roller Material
|
Gcr15 Steel with quenching
|
|
Shaft Material
|
45# Advanced Steel (Diameter: 76mm), thermal refining
|
|
Material Of Cutting
|
CR12Mov with quench treatment
|
|
Electronic control
|
PLC control with touch screen
|
|
Weight
|
About 10 tons
|
|
S.N
|
Equipment name
|
Quantity
|
|
1
|
3T hydraulic un-coiler
|
1 set
|
|
2
|
Leveling device 400mm
|
1 set
|
|
3
|
Servo feeding device 400mm
|
1 unit
|
|
4
|
Press machineJH21-80
|
1 unit
|
|
5
|
Main roll forming machine 18 stations
|
1 set
|
|
6
|
Cutting holder
|
1 set
|
|
7
|
Hydraulic station
|
1 set
|
|
8
|
Control system ( including control box)
|
1 set
|
|
9
|
Out tables
|
2 units
|
|
10
|
Spare parts
|
1 package
|
|
11
|
Hydraulic Cutting die
|
1 set
|
|
12
|
Punching die set
|
1 set
|
Working Flow:
-
DecolierDouble Heads Decoiler
A type decoiler
Manual Decoiler
Hydraulic Decoiler
-
StructureWall panel
Torri Structure
Cast Iron
-
DriveChain
Gear
Gearbox
Couplings Gearbox
-
CoolingWater cooling
Fan cooling
-
PunchingHydraulic punching
Hydraulic press
Punching press
-
CuttingHydraulic stop cutting
Servo Following Cutting
Stop Saw cutting
Fly saw cutting
-
Out tableManual table
Simple pneumatic table
Automatic stacker
Magnetic stacker
-
OtherCassette
Plastic film
Fleece devce
Pre-cutting
What's Sussman Machine Different From Other Suppliers?
Our display screen is touch screen, not text touch screen.
Sussman roll forming system: We will make the hand wheels at the feeding device to adjust feeding width, and we also make the wheels with the numbers then you know how to adjust right and left sides, also we made the rulers on the bedding, you can adjust the profile height and width according to the rulers.
Screw with numbers is to adjust material thickness easily, also with protecting cap also add laminating film device and felt to make the board flatter and smoother without scratches.
The machine is equipped with a detection switch device, in case of emergency, emergency alarm, stop operation.
