The main function of the Ladder cable system is as a permanent path for your cable circuit and as a passive shield for your cable system. A structure strong enough for the line where the car is run, Ladder cable system is a structure strong enough for the line where the cable is laid.

Rung is an important part of the ladder cable tray, it offer supports in the middle.

Technical Data:

	Items	Specifications
	Thickness	1.2mm ~2.0mm (Galvanized Iron Sheet)
	Un Coiler	3 ton passive
Forming system	Rolling Speed	10 meters /min without punching 0-3 meters with punching with 2 holes punching one time
	Roller Stations	About 12 stations
	Roller Material	GCr15, Quench HRC58-62 Plated Chrome
	Shaft	45# Advanced Steel (Diameter: 75mm), thermal
	Main Motor Power	7.5kw
	Hydraulic cutting Power	5.5 kw
Cutting system	Material Of Cutting	SKD11
	Hardness	HRC58-62
	Tolerance	Length +-1.5mm, width and height +-0.5mm
Electrical control system	Electric Source	380V, 50HZ,3 phase Also can satisfy Customer’s require
	Control System	PLC control
	Weight	About 4 tons
	Way Of Drive	1 inches chain
	Size of machine	Length 5500mm* Width 800mm* Height 1000m

Machine List:

3 ton passive de-coiler	1 set
Feeding Guiding	1 set
Roll Forming Part	1 set
Hydraulic Punching Device	1 set
Punching Die	1 set
Hydraulic Cutting	1 set
Safety Cover	1 set
Tools & Spare part	1 package

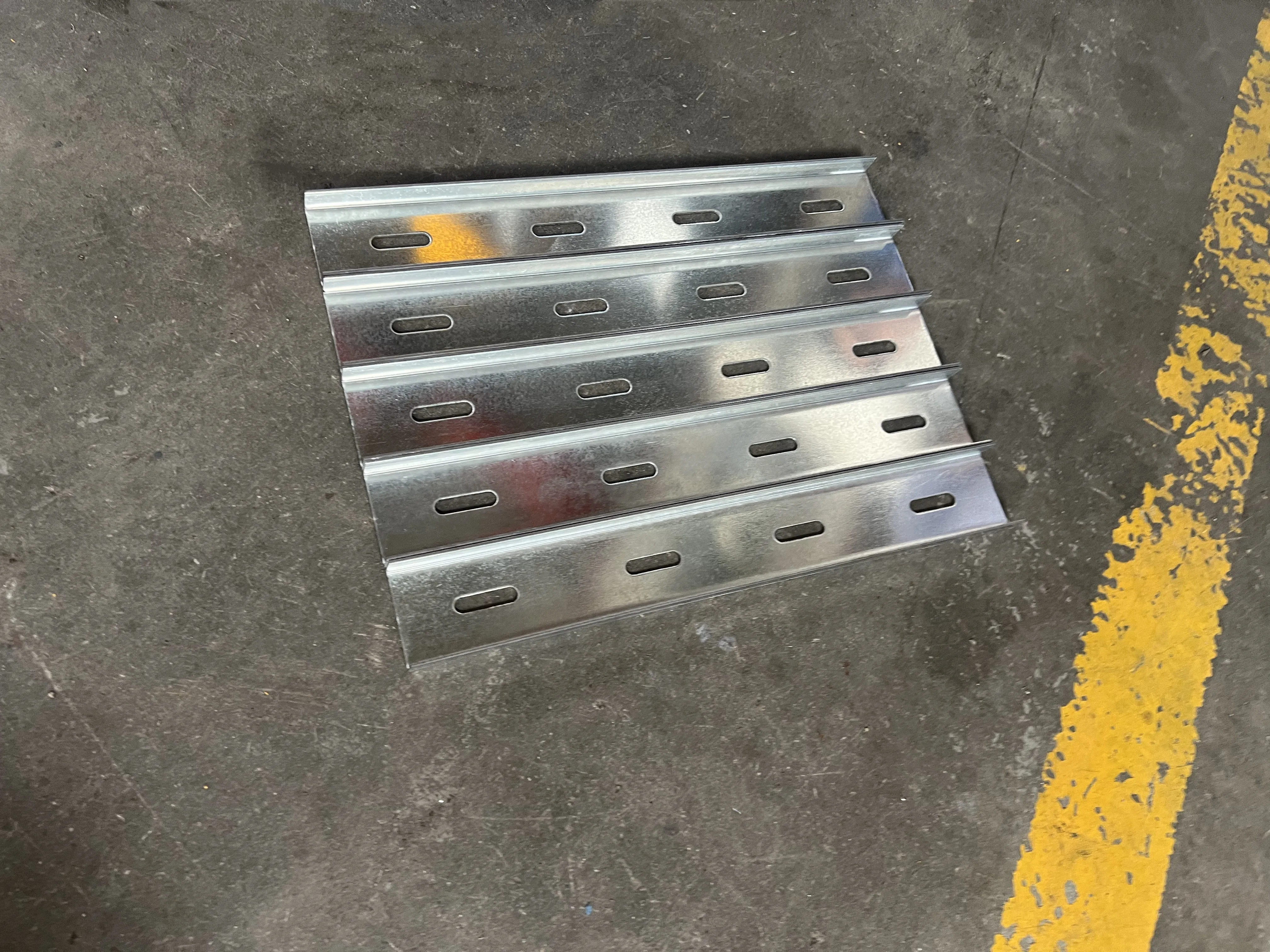

Sample pictures:

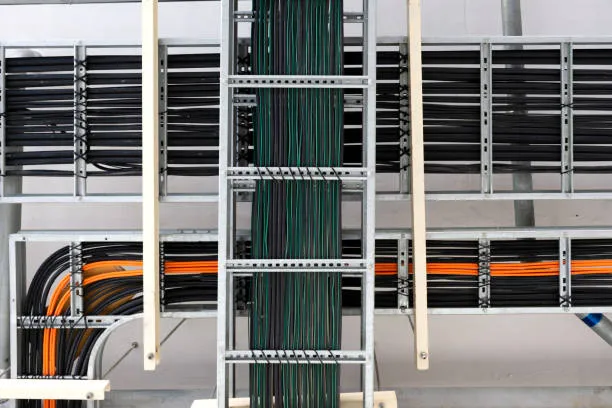

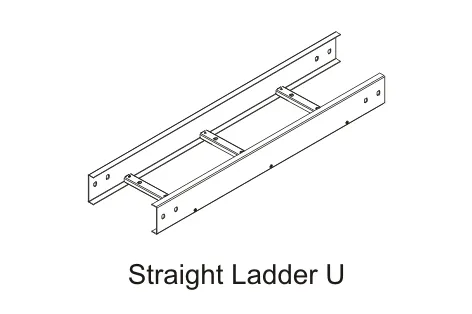

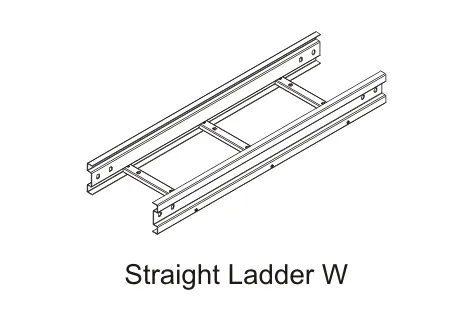

Application:
