W Shape Ladder Cable Tray Side Rail Roll Forming Machine

description1
Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Description
Specification

The main function of the Ladder cable system is as a permanent path for your cable circuit and as a passive shield for your cable system. A structure strong enough for the line where the car is run, Ladder cable system is a structure strong enough for the line where the cable is laid.

The W shape Ladder Cable Tray consists two parts, W side rail and the Rung.

Technical Data:

Items

Specifications



Width of the profile

100mm



Height of the profile

18mm



Thickness

1.2mm ~2.0mm (Galvanized Iron Sheet)





Un Coiler

3 ton passive

Forming system

Rolling Speed

0-10 meters /min with punching





Roller Stations

About 16 stations



Roller Material

GCr15, Quench HRC58-62 Plated Chrome





Shaft

45# Advanced Steel (Diameter: 75mm), thermal refining





Main Motor Power

7.5kw



Hydraulic cutting Power

5.5 kw

Cutting

system

Material Of Cutting

SKD11



Hardness

HRC58-62



Tolerance

Length +-1.5mm, width and height +-0.5mm

Electrical control system

Electric Source

380V, 50HZ,3 phase

Also can satisfy Customer’s require



Control System

PLC control



Weight

About 5 tons



Way Of Drive

1 inches chain



Size of machine

Length 6500mm* Width 800mm* Height 1000m

Machine List:

3 ton passive de-coiler

1 set

Feeding Guiding

1 set

Roll Forming Part

1 set

Hydraulic Punching&Hydraulic Cutting

1 set

Punching Die

1 set

6 Meters Pneumatic Auto Stacker

1 set

Safety Cover

1 set

Tools&Spare part

1 package

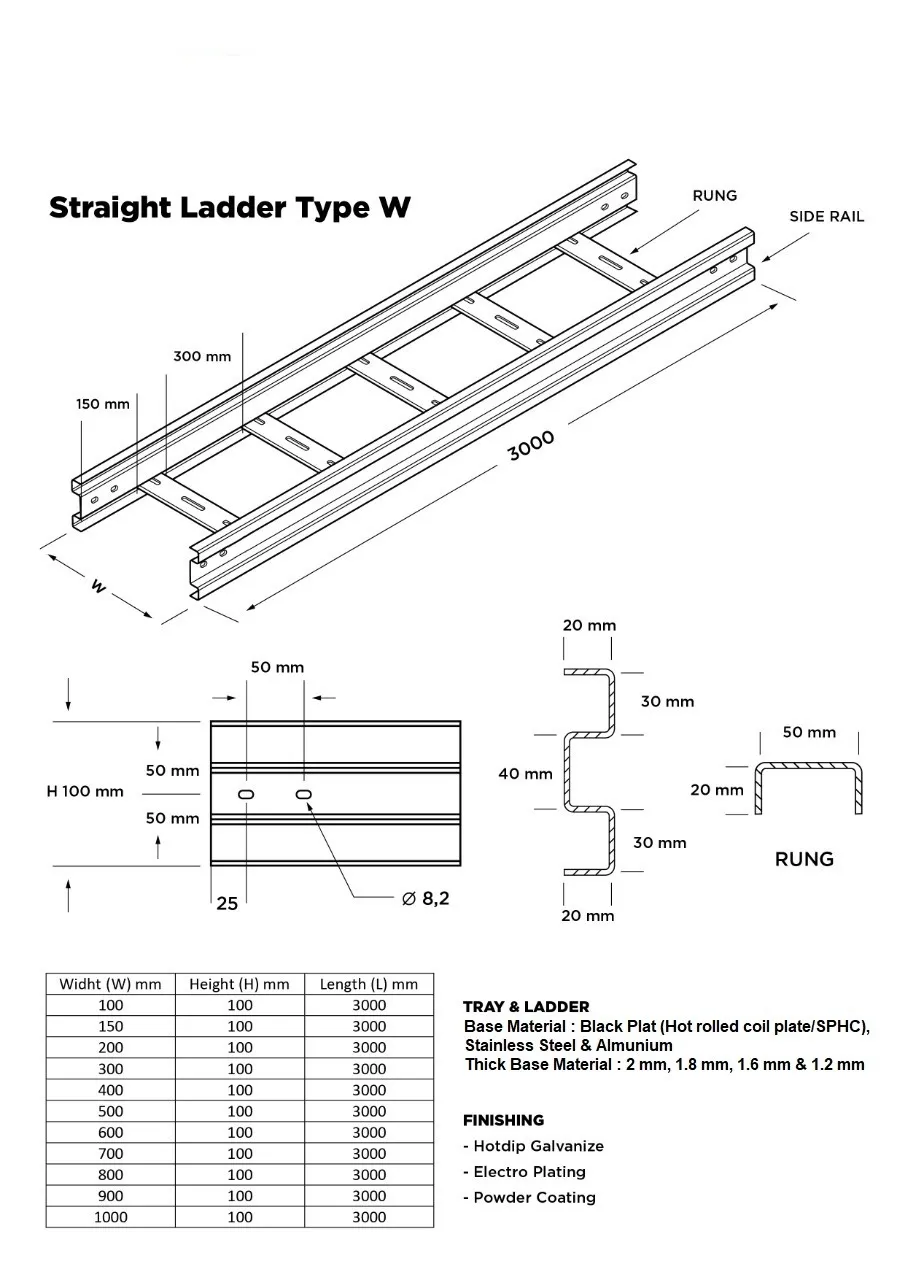

Profile Drawing:

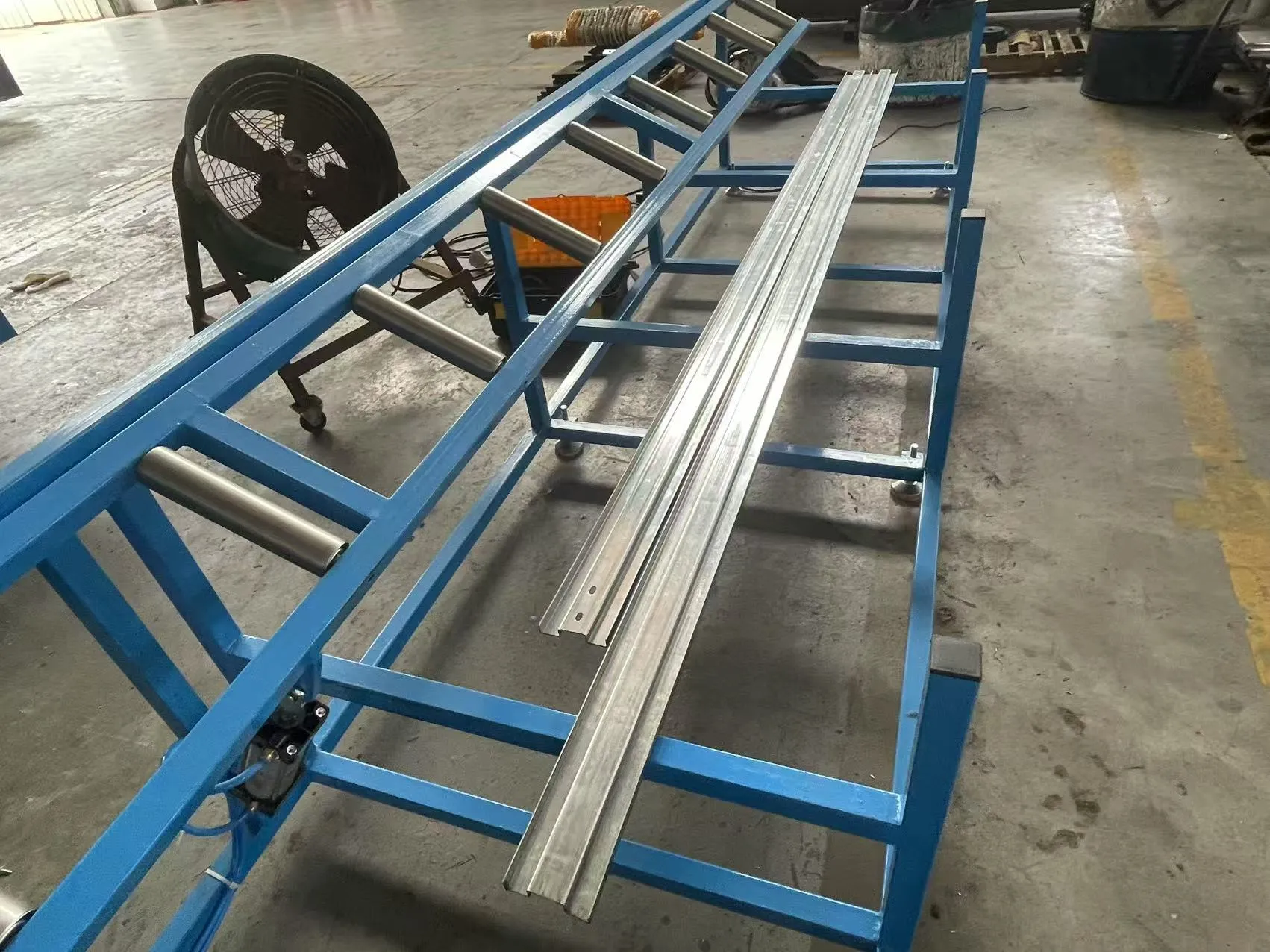

Sample picture:

Application:
