Mexico Multiple Sizes U Channel Roll Forming Machine
The U profiles ranging from 23×33mm to 90×33mm with 1.0–1.5mm thickness are versatile, cost-effective, and structurally reliable.
They are widely adopted in the construction, interior finishing, mechanical, and industrial sectors. Depending on the specific size and thickness, they can be used for anything from light ceiling grids to rigid wall framing and equipment support systems.
Technical Data:
|
Items
|
Specifications
|
|
|
Material of coil
|
Material Thickness
|
1.0-1.5mm Galvanized steel
|
|
Forming system
|
Rolling Speed
|
0-10m/min
|
|
Roller Stations
|
About 10-12 stations
|
|
|
Roller Material
|
Gcr15 Steel with quenching
|
|
|
60mm shaft
|
||
|
Shaft
|
60mm
|
|
|
Maim Motor Power
|
5.5 kw
|
|
|
Hydraulic cutting Power
|
7.5kw
|
|
|
Electrical parts
|
Schneider
|
|
|
Cutting
|
Material Of Cutting
|
CR12mov with quench treatment
|
|
system
|
Hardness
|
HRC58-62
|
|
Tolerance
|
+-1.5mm
|
|
|
Electrical control system
|
Electric Source
|
220V, 60HZ,3 phase
|
|
Control System
|
PLC Delta
|
|
|
Weight
|
About 4 tons
|
|
|
Way Of Drive
|
2 inches chain
|
|
|
Size of machine
|
Length 5000mm* Width 800mm* Height 1000m
|
Machine List:
|
Name
|
Quantity
|
|
3 ton passive decoiler
|
1 set
|
|
Hydraulic punching
|
1 set
|
|
Main roll forming machine
|
1 set
|
|
Hydraulic cutting
|
1 set
|
|
Control box
|
1 set
|
|
Passive output table
|
1 set
|
|
Tool box
|
1 set
|

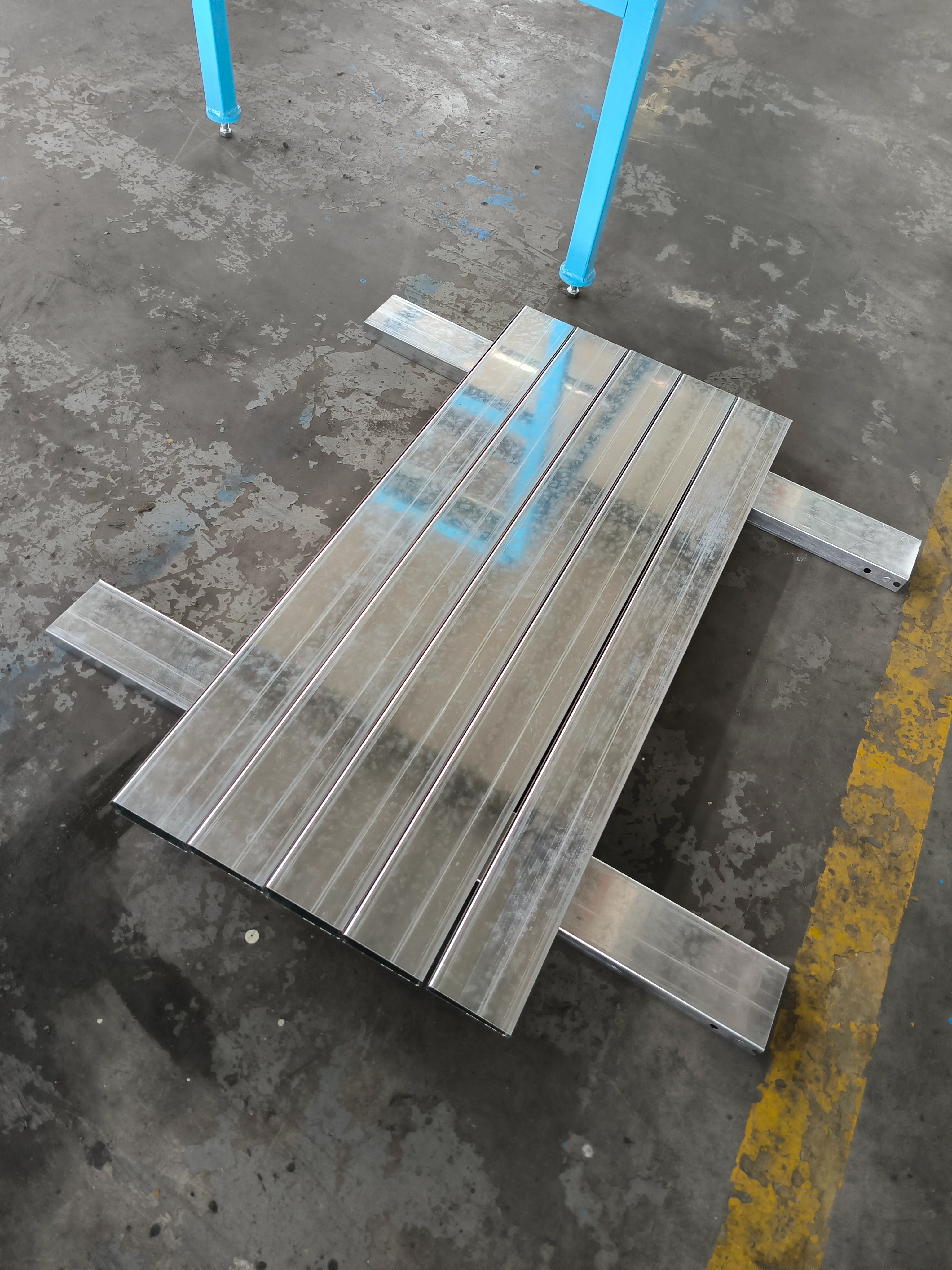

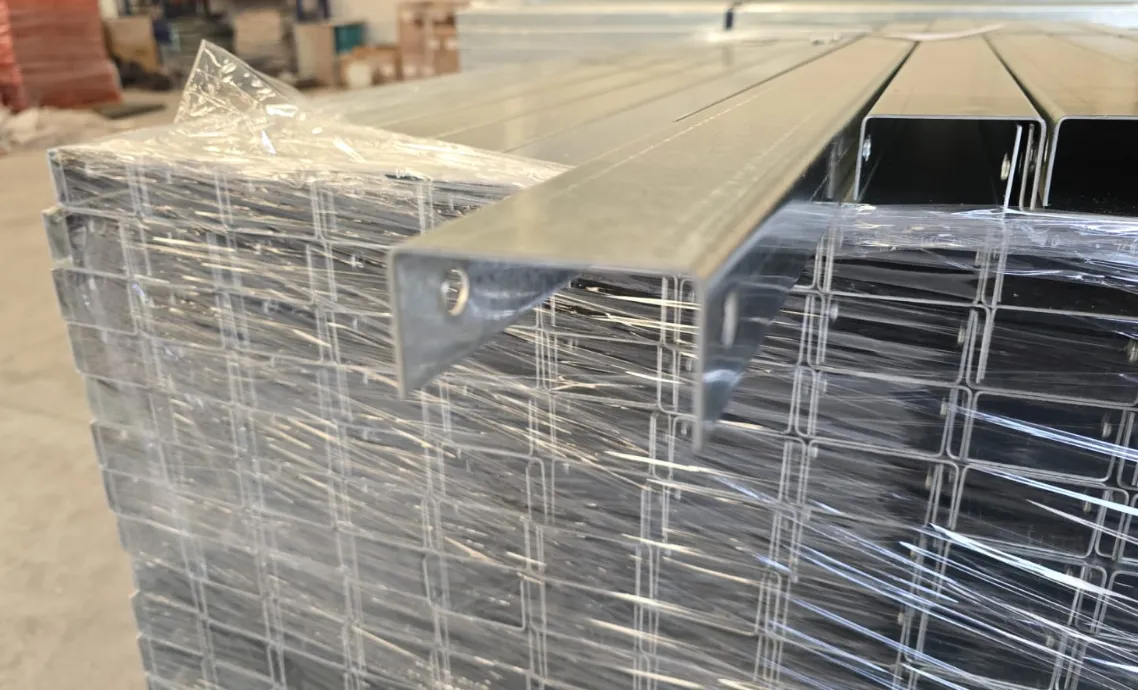

Sample Pictures:

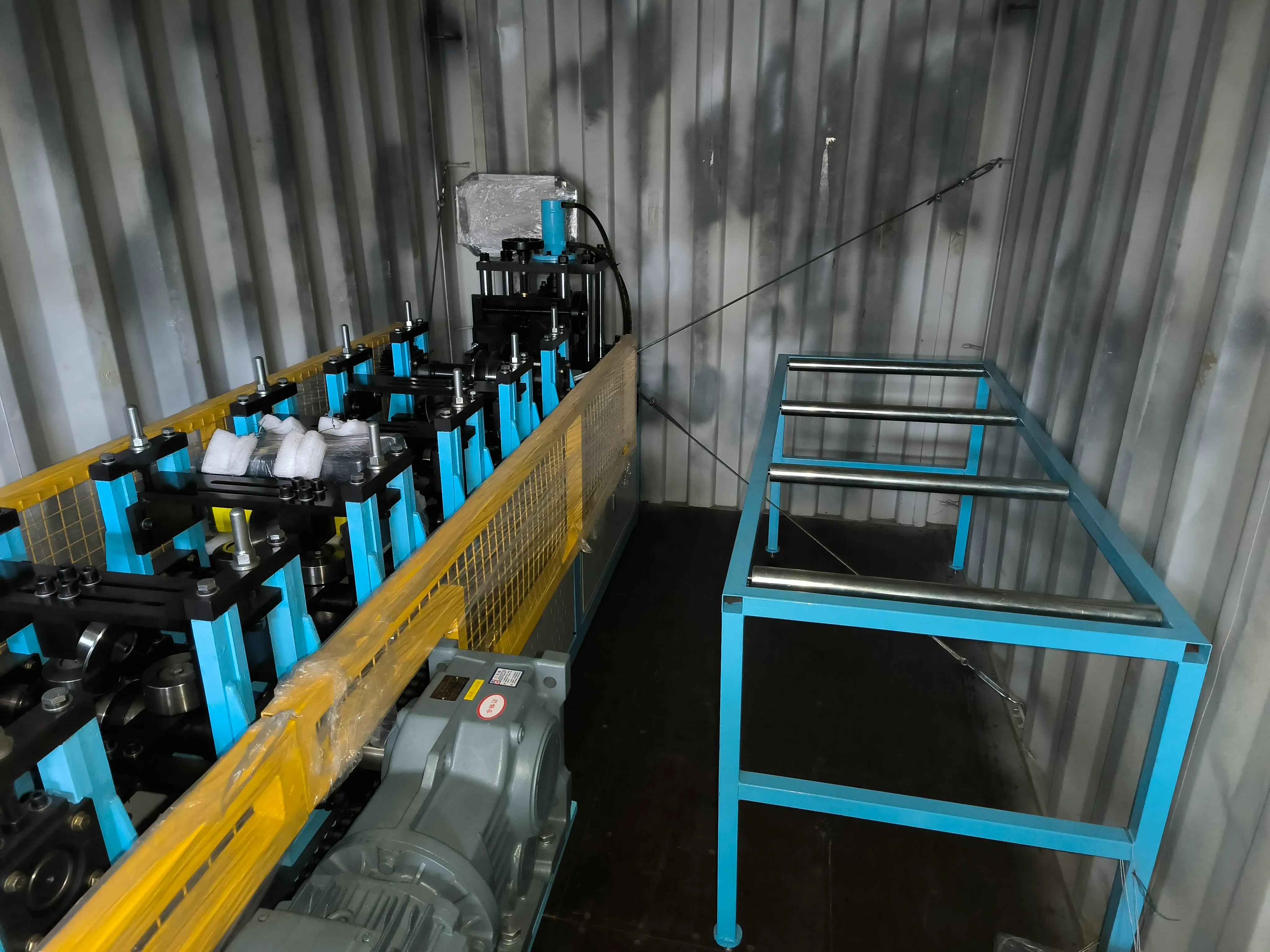

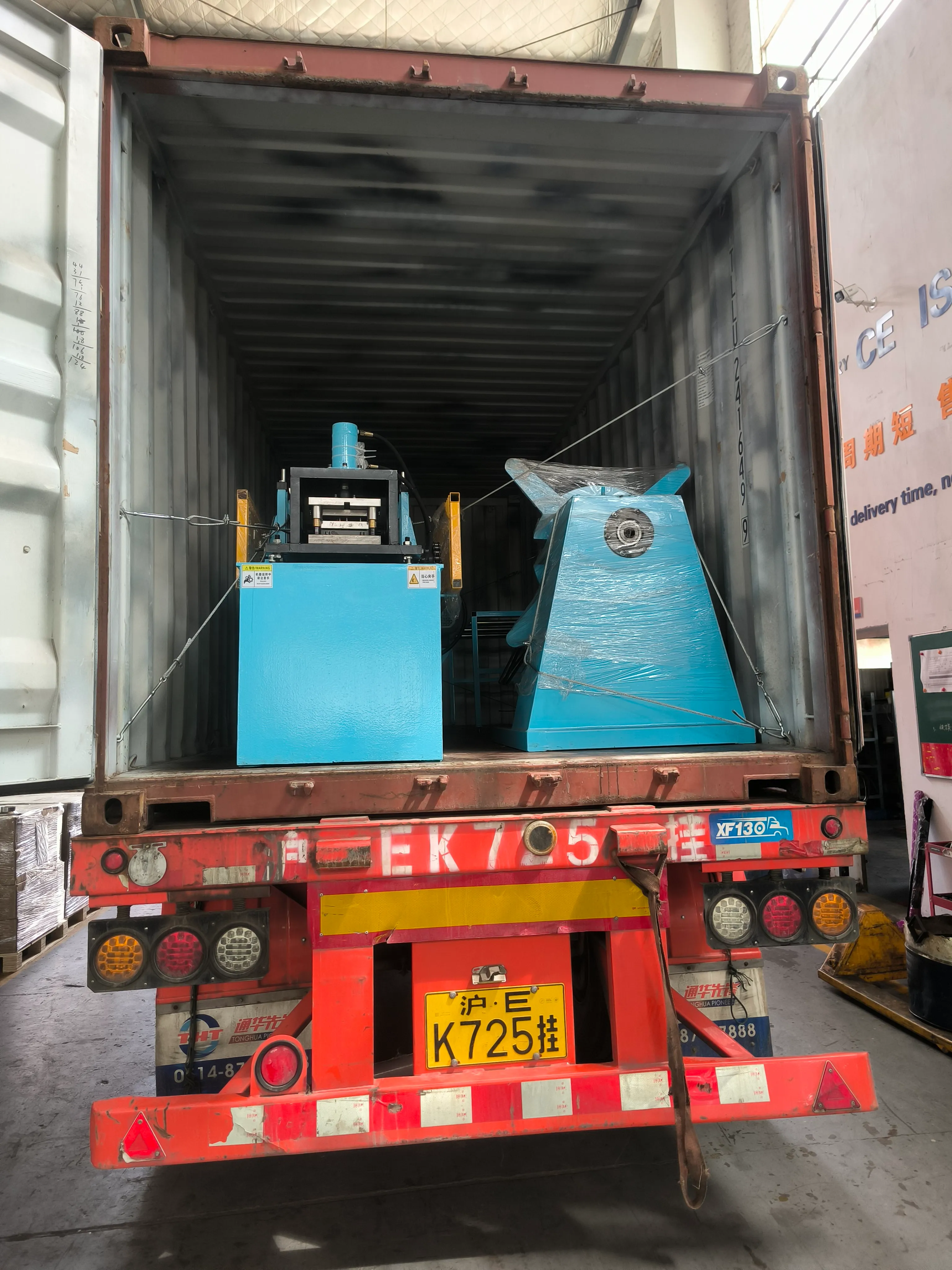

Loading Pictures:
