1.2-1.5mm Steel U Channel Roll Forming Machine with Punching press
.webp)

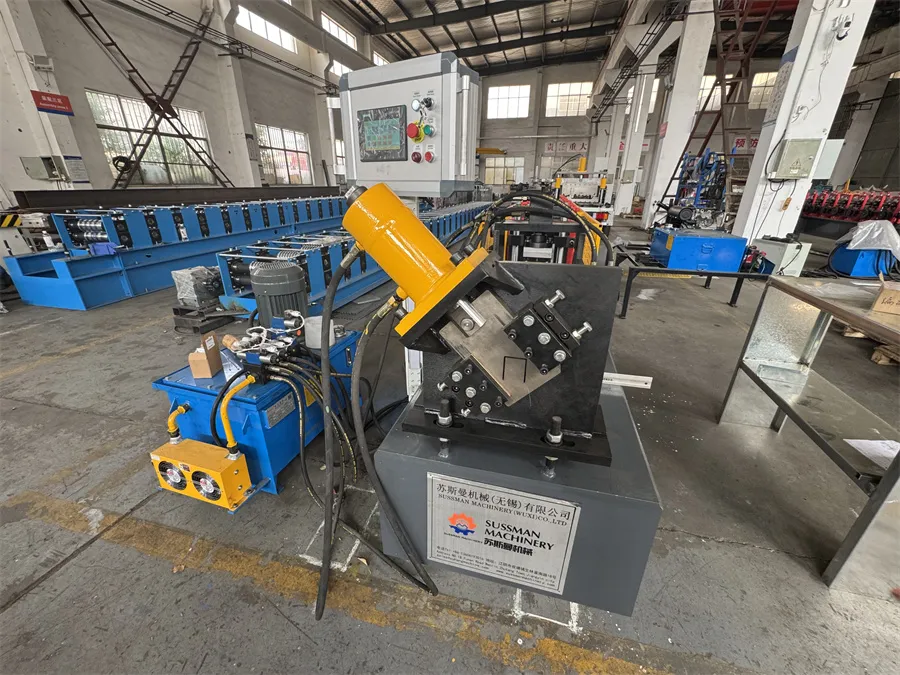

This U profile machine is to make size 45*48mm and thickness 1.2-1.5mm galvanized steel.
It is with punched hole on the bottom and height, we use hydraulic post punching to make these holes to make the hole more accurate.
Technical Data:
|
Material of coil
|
Material Thickness
|
1.2-1.5mm Galvanized steel
|
|
Forming system
|
Rolling Speed
|
0-10m/min
|
|
Roller Stations
|
About 12 stations
|
|
|
Roller Material
|
Gcr15 Steel with quenching
|
|
|
60mm shaft
|
||
|
Shaft
|
60mm
|
|
|
Main Motor Power
|
5.5 kw
|
|
|
Hydraulic cutting Power
|
5.5kw
|
|
|
Electrical parts
|
Schneider
|
|
|
Cutting
|
Material Of Cutting
|
CR12mov with quench treatment
|
|
system
|
Hardness
|
HRC58-62
|
|
Tolerance
|
+-1.5mm
|
|
|
Electrical control system
|
Electric Source
|
380V, 50HZ,3 phase
|
|
Control System
|
PLC Delta
|
|
|
Weight
|
About 4 tons
|
|
|
Way Of Drive
|
chain
|
|
|
Size of machine
|
Length 5800mm* Width 800mm* Height 1500m
|
Working flow:

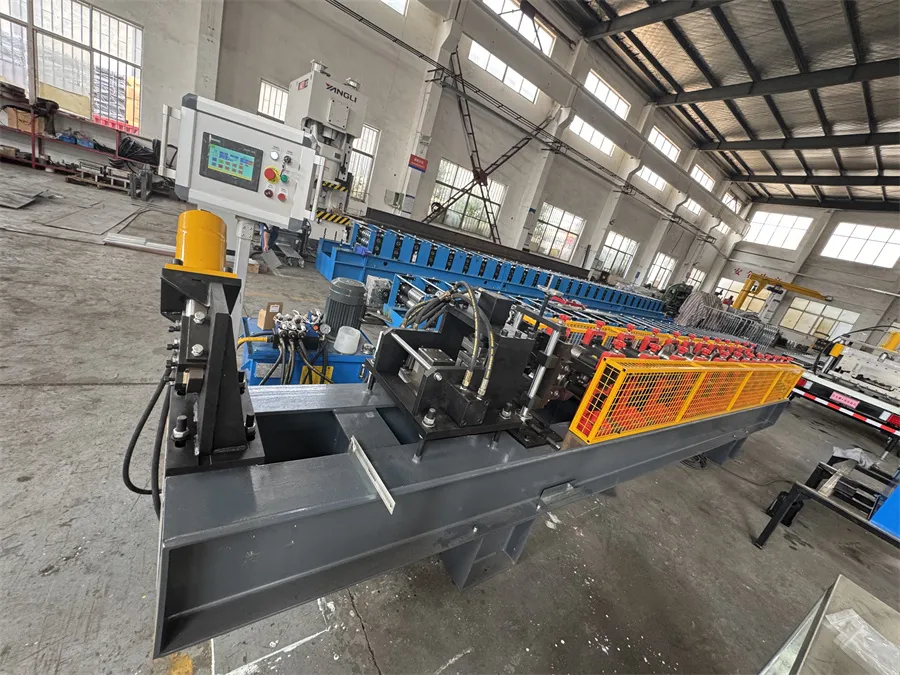

3 tons manual decoiler---roll forming----hydraulic punching-----out put table
Machine List:
|
Name
|
Quantity
|
|
3 ton passive decoiler
|
1 set
|
|
Hydraulic post punching
|
1 set
|
|
Main roll forming machine
|
1 set
|
|
Hydraulic cutting
|
1 set
|
|
Control box
|
1 set
|
|
Passive output table
|
1 set
|
|
Tool box
|
1 set
|

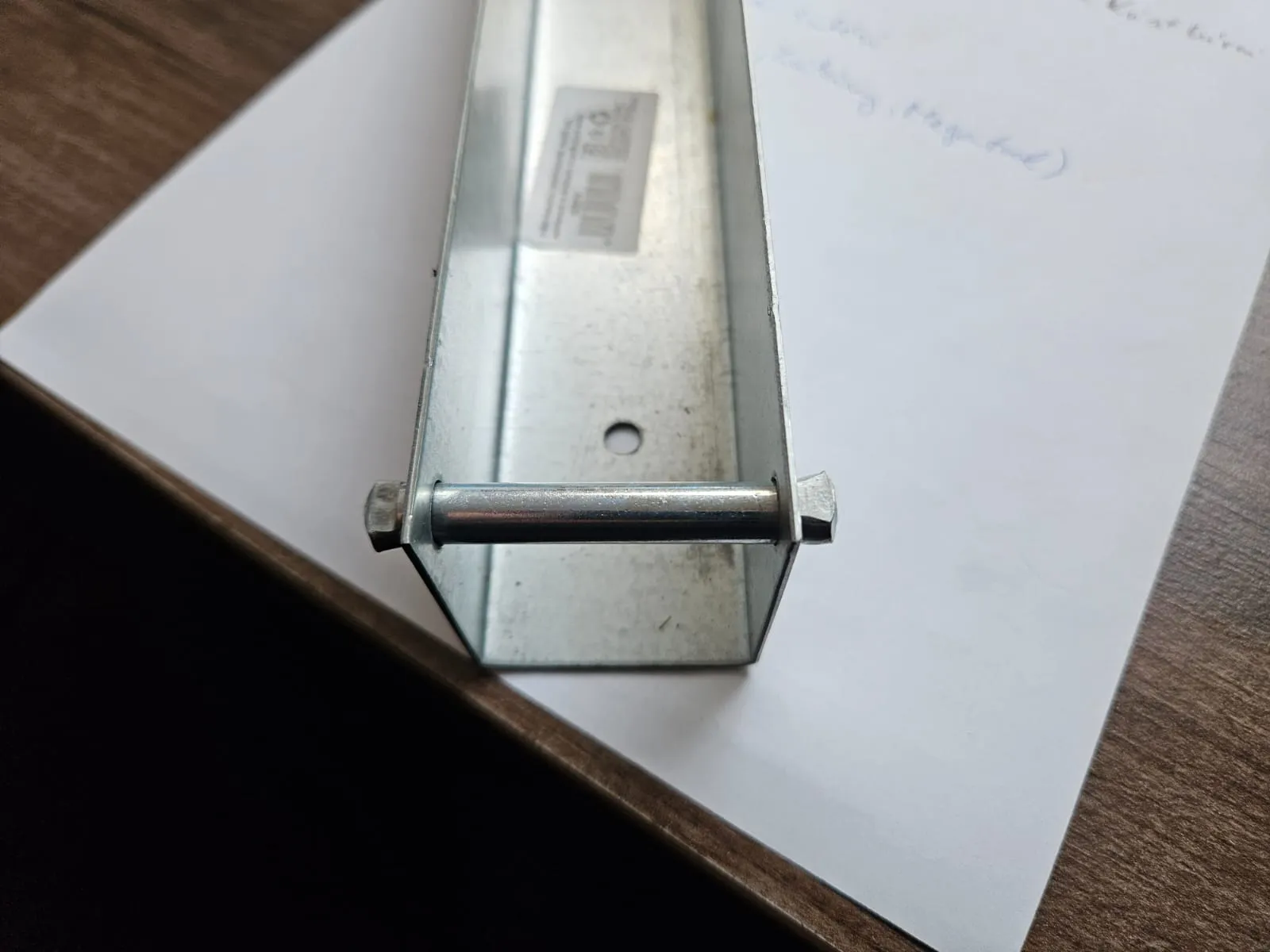

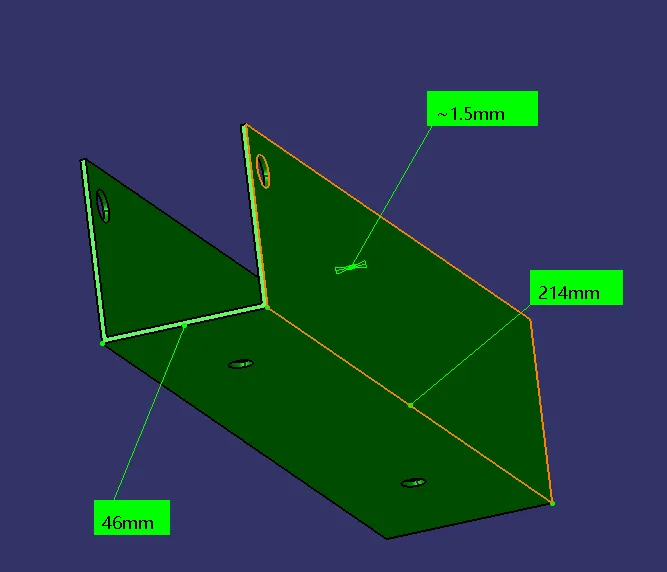

Profile drawing :
In this photo, you will see that tail on the profile height, how to make this?

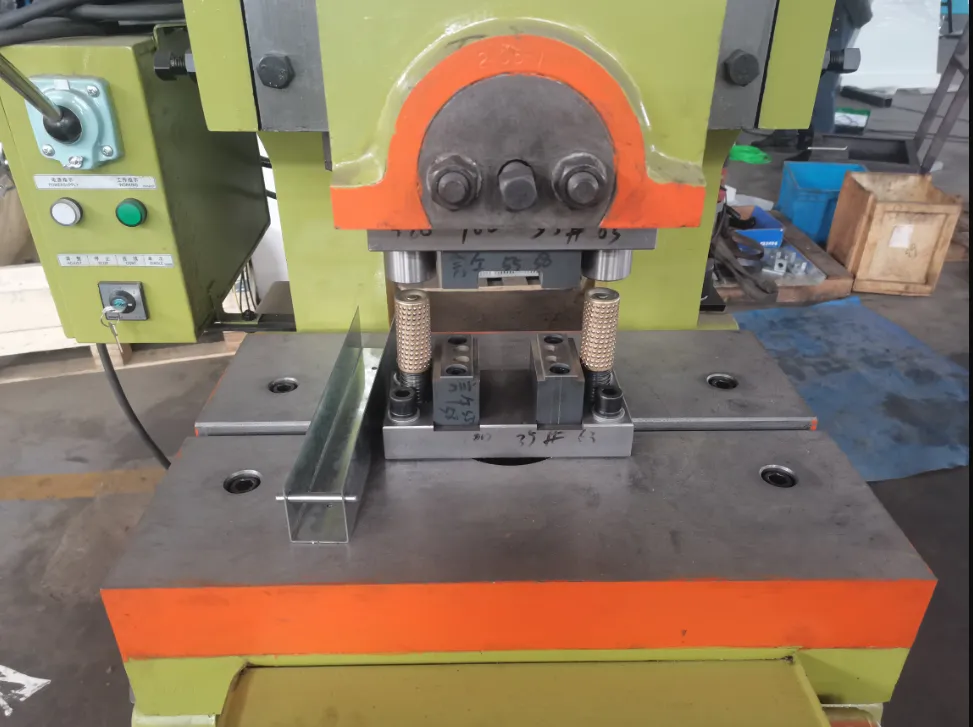

After you use U profile roll forming machine to produce U profile products, then use press punching machine to do it, need one worker put it into press machine, then punching, it is done, very easy.
