Monterry Glazed Tile Roll Forming Machine

Email: info@suhangmachine.com

Tel: 008613606193016

Whatsapp: 8613606193016

description1

Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Description

Specification

Main Features:

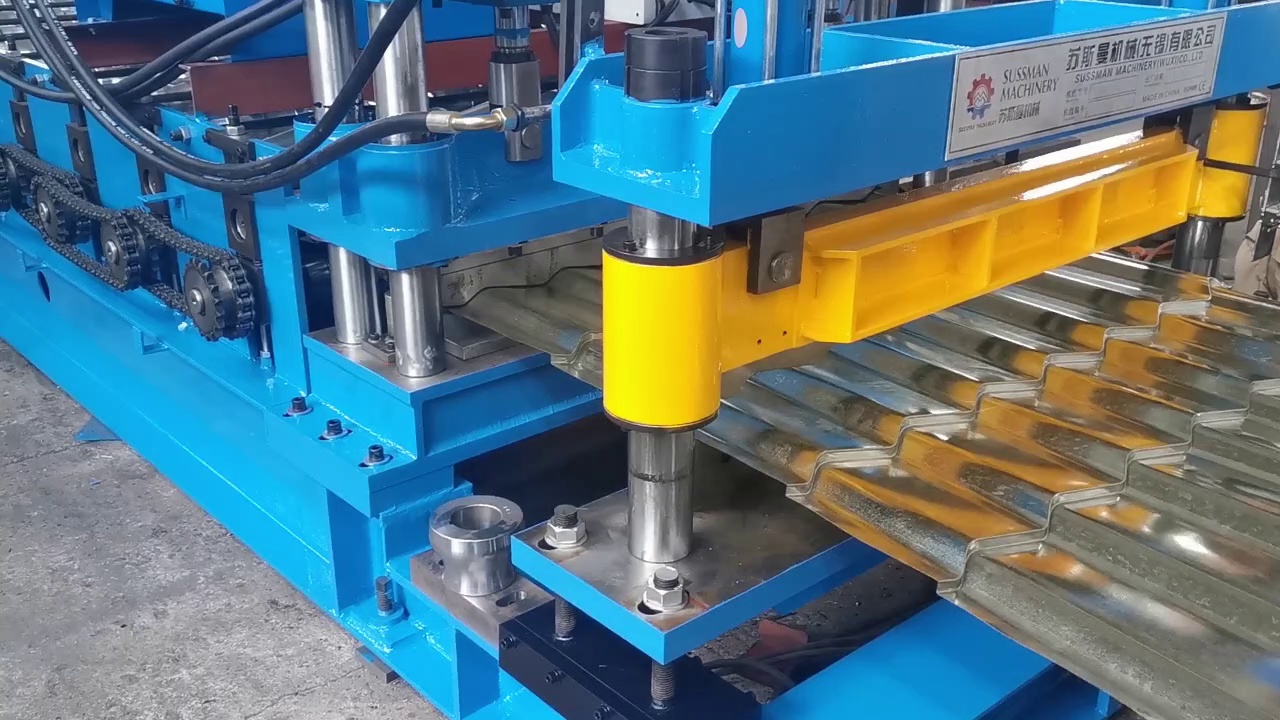

This is the glazed tile roll forming machine for a customer from Macedonia.

1.Technical parameter

Color Steel Sheet Thickness: 0.4~0.7mm Color Sheet

Color steel sheet width:1000mm

Roller Stations: About 16 stations

Way Of Drive:1.2 inch single chain

The speed of the roll forming machine:0-12m/min

Roller Material: 45# forge steel, coated with chrome

Shaft Material and DIA:￠76mm, material is 45# forge steel

Main Motor Power: 7.5kw

Error of Cutting Distance of Glazed Tile: ±1-2mm

2.Machine List


5 tons passive de-coiler	1 set
Press mould	1 set
Main roll forming machine	1 set
Cutting device	1 set
PLC Control box	1 unit
Hydraulic station	1 unit
Passive Out table	2 units
Spare parts	1 set
