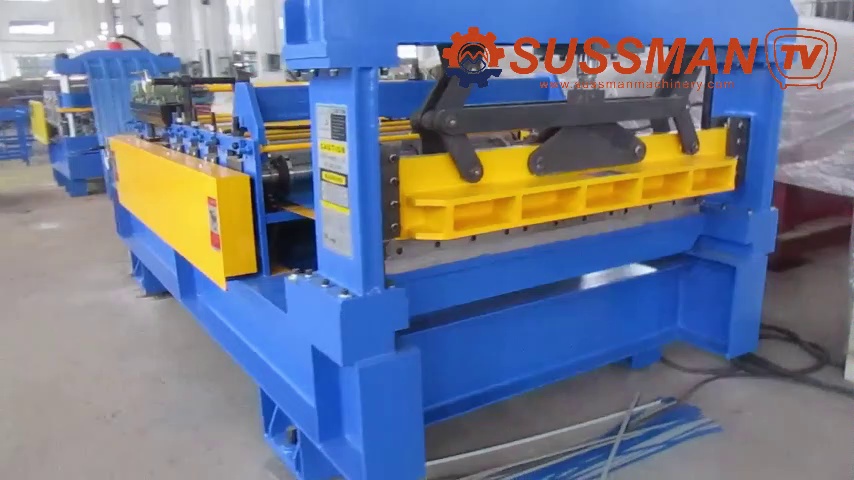

Function of the Machine
This machine is the accessorial equipment for roll forming machine which is used to slit coil sheet to be two pieces or more than two pieces then support it. It has many advantages such as low noisy, stable running, simple operation and nice appearance etc.

Main Parts of the Machine
This machine consists of transmission, guiding device, covering film device, slitting device, cutting device. And the shaft material is High grade No.45 carbon wrought steel，which can improve the integrated mechanic feature of the shaft, the material of slitter is Cr12 mould steel with quenched treatment which has strong strength and hardness to slit the coil sheet.

Technical Data:

1.Material of coiled plate: Galvanized steel, PPGI

2.Thickness of coiled plate: 0.2mm-0.5mm;

3.Width of coiled plate: 500mm-1250mm;

4.Line speed: 0-10 meters/minute ;

5, Slit device: 3 strips,cutter material is Cr12 mould steel

6.Loading capacity: 5T hydraulic;

7.Motor power: 5.5KW

8.Hydraulic motor power: 4KW

9.Diameter of leveling rollers: ф60

10.The distance between leveling rollers: 65mm

11.Material of leveling rollers:40Cr,  hardness:HRC52-60

12.Power: 380V,50Hz,3phase;

13.Tolerance of diagonal error:≤±2mm/2000mm

14.Tolerance of length error: ≤±2mm/2000mm

15.Leveling rolls: 4 up, and 5 down

16,The electrical box is cantilever one unit, it can connect the electrical control box both side of the machine

17,The hydraulic station is within the main machine together, so forklift can move easily.
