Steel 1.0-1.5mm Din Rail Roll Forming Machine

description1
Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Technical Data

Item NO



Description

Unit\Type

RF-DF

1

Steel Thickness

mm

1.0-1.5mm steel

2

Forming Speed

m/min

About 8-15m/min

3

Roller stands

stands

10

4

Roller Material



high-grade Gcr15# steel

5

Shaft diameter



Ф60

6

Main Motor Power

Kw

5.5

7

Hydraulic cutting Power

Kw

5.5KW

8

Hydraulic pressure

Mpa

12

9

Power Supply



380V, 50HZ,3 phase

10

Tolerance

mm

1.5

11

Material of cutting



Cr12Mov

12

Drives method



Chain

13

Control system



PLC with touch screen

14

Machine structure



Cast iron

15

Machine length

mm

About 4500*800mm*1300mm

16

Machine weight

T

About 3 T

Machine component

This machine is to make din rail, A DIN rail is a standard type of metal rail used to mount and organize electrical components like circuit breakers, terminal blocks, and relays inside enclosures or control panels. It acts as a support system, providing a secure and modular way to assemble various devices.

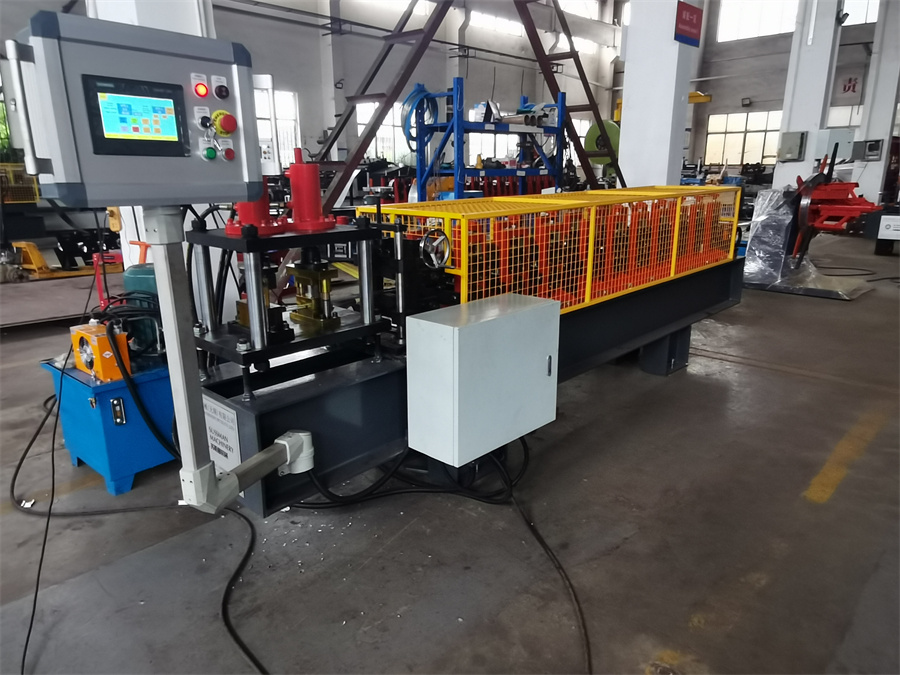

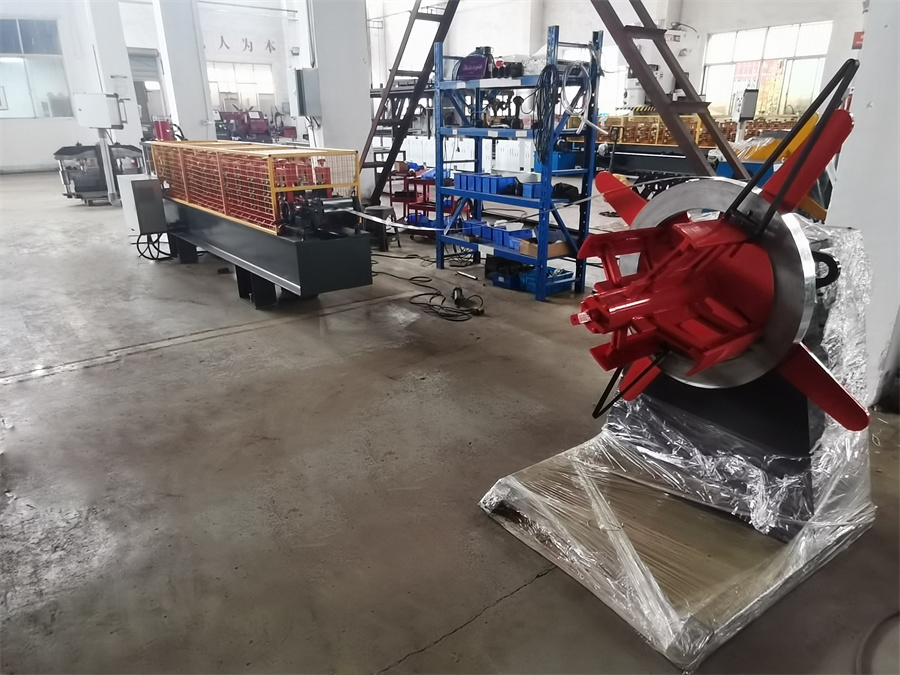

This line includes 3 tons manual decoiler, roll forming, hydraulic cutting and control system, finished table

Also we can do automatic decoiler

Key Features:

  • Material: Usually made from steel, aluminum, or copper with a zinc or other protective coating.

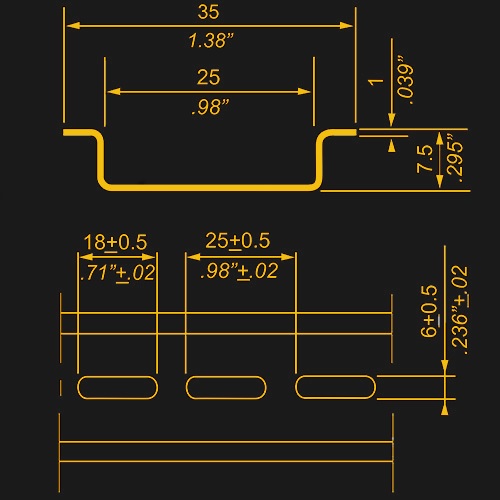

  • Shape: The most common shape is the "top hat" profile (TS35), named for its resemblance to a top hat when viewed from the side.
  • Standard Size: Defined by international standards (e.g., EN 60715), with a typical width of 35mm for the most common type.

Application

Applications:

  • Electrical panel manufacturing.
  • Automation systems assembly.
  • Maintenance and repair work.
