USA Popular 40-150mm Width Adjustable Gypsum Drywall Roll Forming Machine

description1
Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Description
Specification

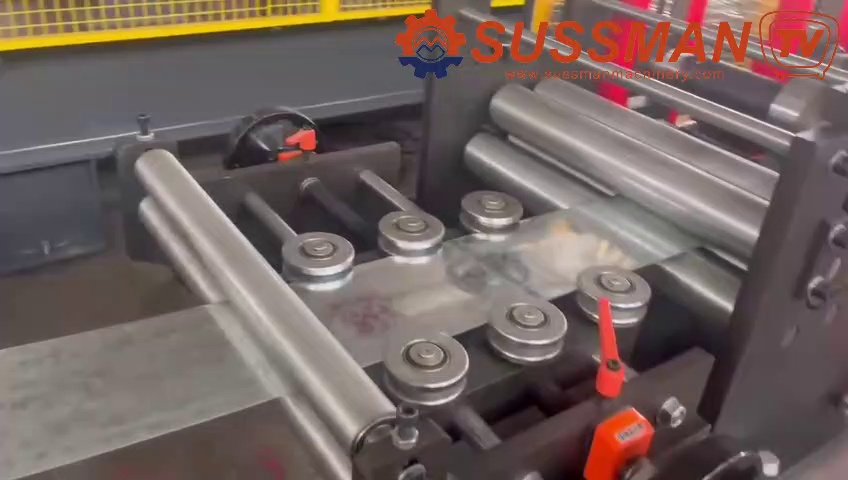

A stud track roll forming machine is a specialized piece of equipment used to manufacture steel studs and tracks, which are essential components in framing for walls, ceilings, and other structures. This machine utilizes a continuous roll-forming process, turning flat steel sheets into precisely shaped tracks with exceptional speed and accuracy.

This Stud Track Roll Forming Machine is for an American customer. The thickness is 0.8-1.6mm, width 40-150mm, working speed 8-12 meters/minute.

Technical Data:

Items

Specifications

Material of coil

Material Thickness

0.85-1.6mm G550 Galvanized coils

Punching device

Hydraulic punching mould

2 sets

Forming system

Rolling Speed

10 meter/minute with driven chain

Roller Stations

About 15 stations forming

Roller Material

Gcr15 Steel with quenching

Shaft Material

45# Steel Diameter 75mm shaft



Main Motor Power

7.5 kw

Cutting

system

Material Of Cutting

CR12 with quench treatment

Hardness

HRC58-62

Tolerance

+-1.5mm

Cutting blade

1 set of cutting blade

Electrical control system

Electric Source

220V, 60HZ,3 phase, according to buyer’s request

Control System

PLC with touch screen



Weight

About 5 tons



Way Of Drive

1 inch single chain



Size of machine

Length 5500mm* Width 800mm* Height 1000m

 Machine List:

3 Tons Passive De-coiler

1 set

Main Roll Forming Machine with the Embossing

1 set

Hydraulic Punching

2 sets

Control Box

1 unit

Hydraulic Stop Cutting Device

1 unit

6 Meters Simple Auto Stacker

1 unit

Spare Part

1 package

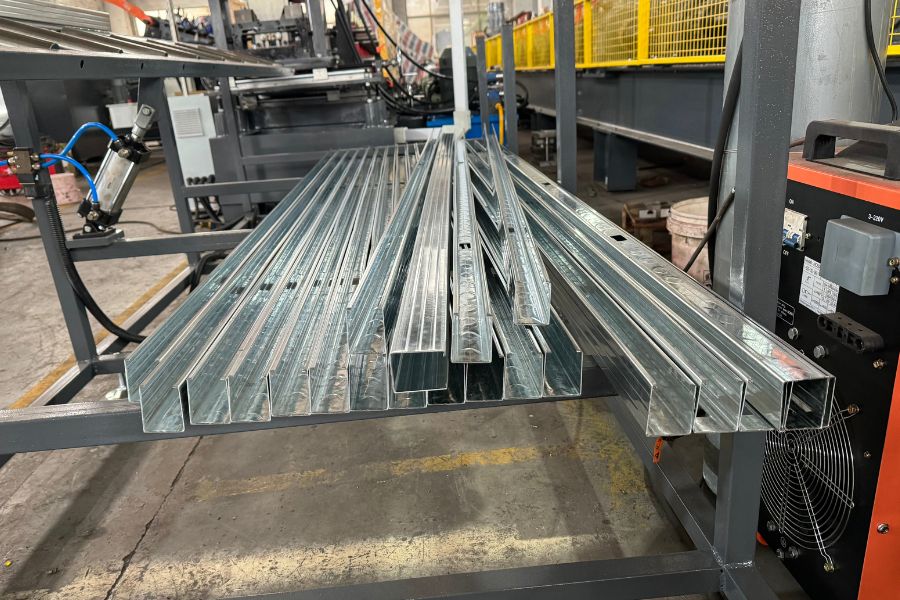

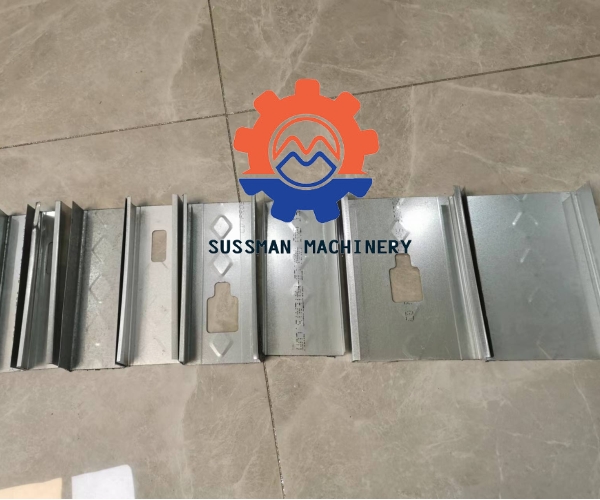

Sample pictures:

Application:
