info@suhangmachine.comTechnical Data:
Item NO |
Description |
Offered specification |
1.0 |

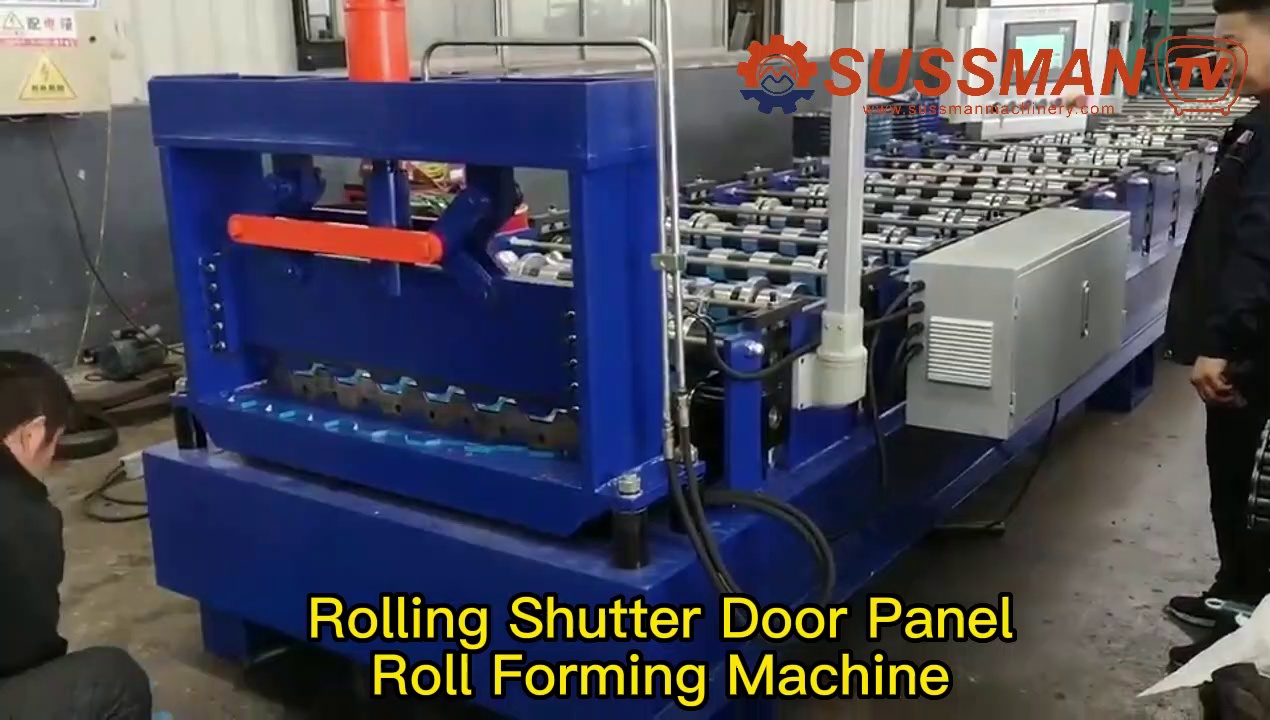

Roll forming machine |
|
1.1 |
Rolling speed |
0-12m/min(not include cutting time) |
1.2 |
Rolling thickness |
0.3mm-0.8mm |
1.3 |
Raw material |
Color painted coils, Aluzinc |
1.4 |
Main Motor |
7.5KW |
1.6 |
Dimension |
About 8000×1600×1200(mm) |
1.7 |
Roller stations |
About 18 stations
|
1.8 |
Roller material |
45#forge steel, coated with chrome |
1.9 |
Shaft diameter |
Φ76mm |
1.10 |
Transmission |
By chain 1.2 inch |
1.11 |
Material of chain |
45# forged steel with frequency quenching, 12A |
1.12 |
Material of cutting |
Cr12Mov with quench HRC58-62° |
1.13 |
Tolerance |
10m+-1.5mm |
1.14 |
Hydraulic station |
4kw |
Machine List:
No |
Name |
quantity |
1 |
5 ton passive de-coiler |
1 set |
2 |
Main roll forming machine |
1 set |
3 |
Control box |
1 unit |
4 |
Hydraulic station |
1 unit |
5 |
Passive Out tables |
2 units |
6 |
Mesh cover |
1 unit |
7 |
Spare Parts |
1 Package |
Profile Drawing:

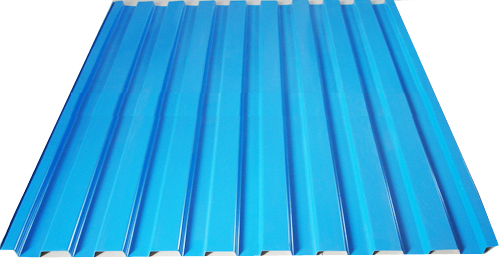

Application:
