Main Features:

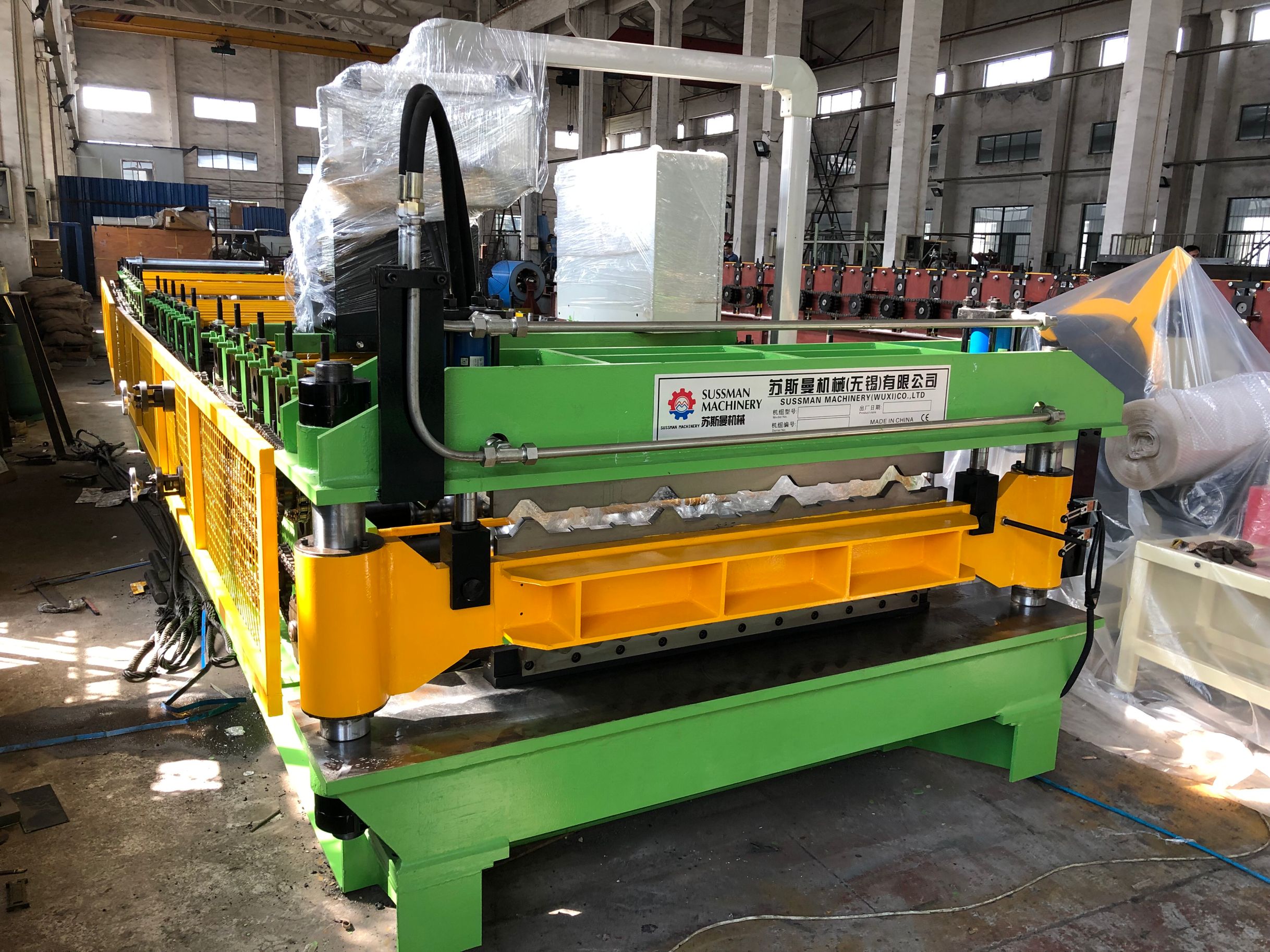

The double layer machine can be used to produce 2 different profiles , e.g.  wall &roof sheets, or 1 wall & tile or roof and corrugated sheets. Customer can choose as your requirement and local market demand.

Double layer machine can save more space and save money compared with two different seperate machines.

Double layer machine can produce one profile one time, can not work at the same time. There is one clutch as on the side of the machine,  just move it to make other roof profile, it takes about a few seconds, the operation is very easy.

1.Technical parameter

Rolling Speed: 8-15 m/min

Feeding width: 1000mm/1220mm

Steel sheet Thickness: 0.3-0.8mm galvanized sheet

Control System: PLC Siemens

Roller Stations: about 22/20 stations

Roller Material : 45# forge steel, coated with chrome

Shaft Material and DIA: ￠75mm,material is 45# forge steel, Chrome with quenching

Motor Power: 7.5kw main motor

Hydraulic power: 4kw

Hydraulic Pressure: 12Mpa

Tolerance: +1.5mm

Power supplier: According to Customer’s Requirements

Way Of Drive:Chain Driven

2.Machine List



4. Profile design





Our display screen is touch screen, not text touch screen.

Sussman roll forming system: We will make the hand wheels at the feeding device to adjust feeding width, and we also make the wheels with the numbers then you know how to adjust right and left sides, also we made the rulers on the bedding, you can adjust the profile height and width according to the rulers.

Screw with numbers is to adjust material thickness easily, also with protecting cap also add laminating film device and felt to make the board flatter and smoother without scratches.

The  machine is equipped with a detection switch device, in case of emergency, emergency alarm, stop operation.
