Hydraulic Type Gasoline Model Portable Lámina Engargolada KR-18 Roll Forming Machine

description1
Zipper closure 1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Specification

The KR-18 Crimped Sheet is a profile rolled on-site using portable equipment that uses 610mm(24") strips for its manufacture.

It can be produced on construction site, which easy to move different project.

Profile is for reference

  • Ancho efectivo: 45.7 cm (17.99”)
  • Ancho total: 54 cm (21.25”)
  • Peralte: 6.35 cm (2.5”)
  • Longitudes estándar: 2.44 m a 7.32 m
  • Longitudes especiales: 1 m a 15 m

Calibres

  • Calibre 22*: 0.0299” (0.7595 mm)
  • Calibre 24**: 0.0209” (0.5309 mm)
  • Calibre 26: 0.0179” (0.4547 mm)

Working flow

Uncoiling—Feeding with guide—Roll forming—Hydraulic cutting—Products collecting

Technical Data

Item

Description

Unit\Type

RF-RP

1

Material Thickness

mm

0.4-0.8mm for color coated steel

2

Forming Speed

m/min

0-15m/min

3

Roller stands

stand

About 9 stations

4

Material of Rollers

/

45# Steel, quenched HRC 58-62

5

Material of Shafts

/

45# Steel, quenched HRC 58-62

6

Power Device



Gasoline type

7

Material of cutting

/

Cr12Mov

8

Main machine weight

T

About 2 Tons

9

Outer specification

m

About 4.0*0.9*1.5m



Machine list

Name

Quantity

Use

5 Tons manual Uncoiler

1

To feed steel coils

Electric Seaming Machine

1

To seam the steel sheets

Super Pliers

1

To clamp the steel sheets

Chain

3m

To drive the gears

Whole Chain Link

3

Parts

Half Chain Link

5

Parts

5 tons manual decoiler

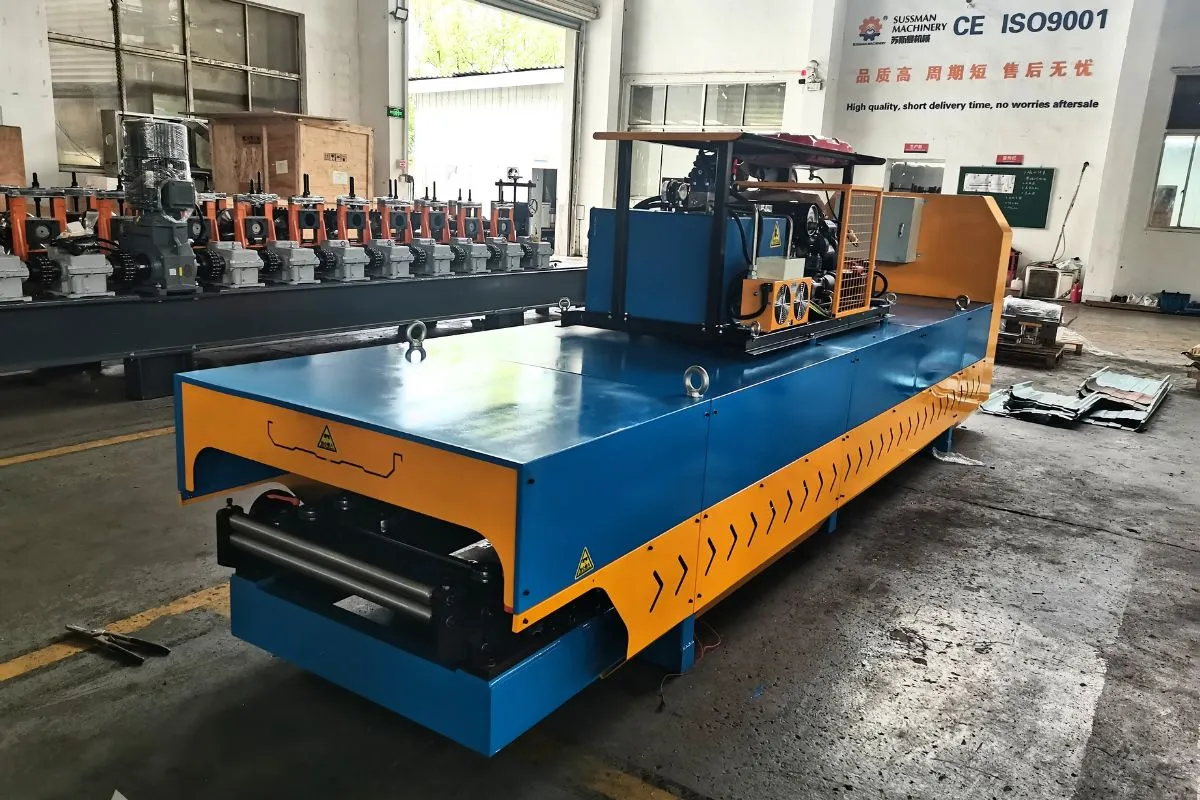

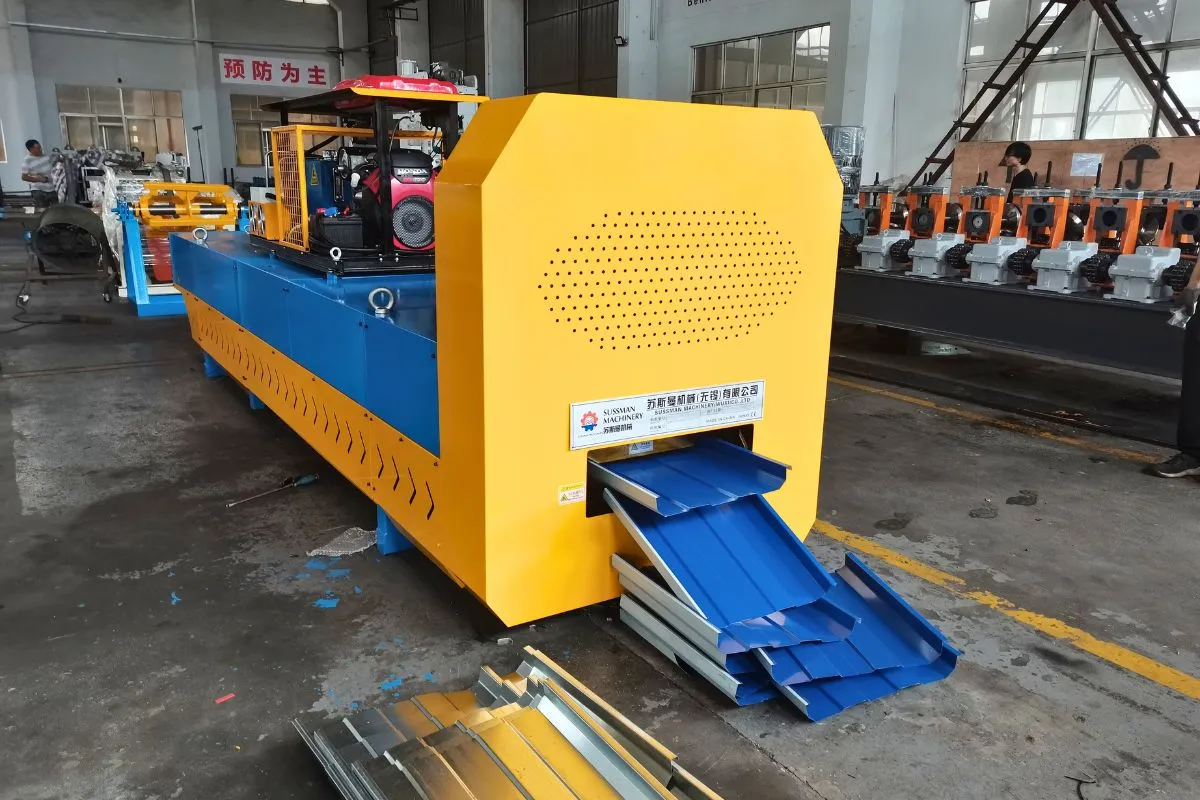

Kr18 roll forming machine

Hydraulic cutting to cut any length you want to make

Seaming and clamping

Advantages of an hydraulic KR18 Roll Former:

  • Precision control: Digital input for exact measurements.

  • Fast and consistent: Higher production rate vs. manual methods.

  • Convenient: Portable to move different projects

  • Economy:  more energy-efficient than electric models.

Application

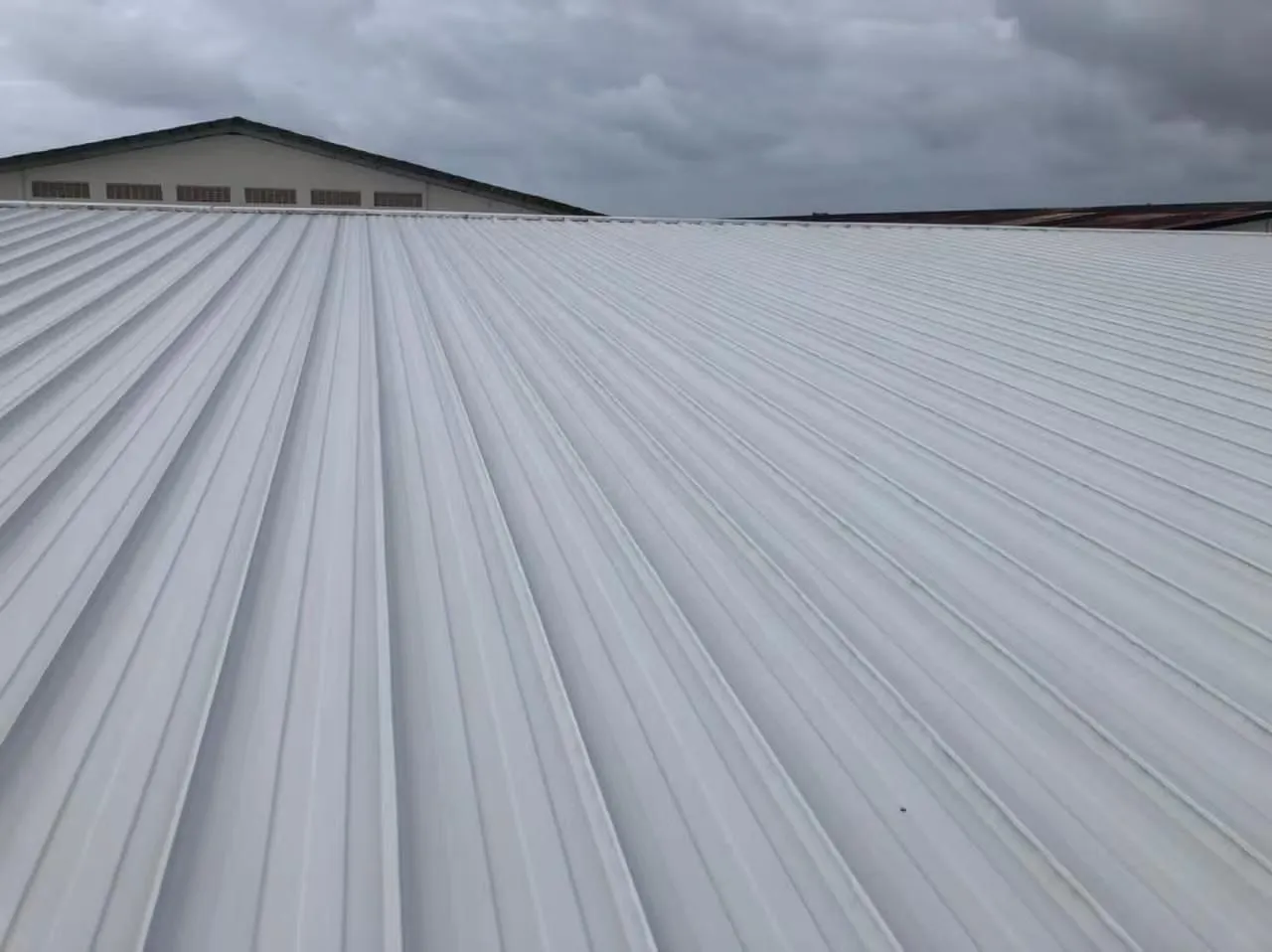

KR-18 corrugated sheeting is a concealed-fix corrugated profile designed for low-slope roofs. Thanks to its perforation-free assembly, it minimizes the risk of leaks and improves structural strength.

This type of corrugated sheeting is ideal for composite roofs, allowing slight displacement due to temperature changes without compromising stability.
