0.12mm-0.3mm Thickness Corrugated Roof Roll Forming Machine

Foreword

This 0.12mm-0.3mm thickness corrugated roof roll forming machine is made for a customer from Columbia.

Why the thin roof roll forming machine is hot sale?

Because it can produce more roof panels under the same weight of steel coil.

The speed of the machine is 10-12m/min, but it can also reach to 40m/min with servo following cutting.

Details of the10-12m/min Corrugated Roof Roll Forming Machine

Technical Date:

Item NO	Description	Offered specification
1.0	Roll forming machine
1.1	Rolling speed	12-15m/min(not include cutting time)
1.2	Rolling thickness	0.12mm-0.3m
1.3	Raw material	Color painted coils, Aluminium, Zinc, Galvanized
1.4	Main Motor	7.5KW
1.5	Dimension	About 1000×1600×1200(mm)
1.6	Effective width	800mm
1.7	Feeding Coil width	1220mm
1.8	Roller stations	About 20 stations
1.9	Roller material	45#forge steel, coated with chrome
1.10	Shaft diameter	Φ76mm
1.11	Transmission	By chain 1.2 inch
1.12	Material of chain	45# forged steel with frequency quenching, 12A
1.13	Material of cutting	Cr12Mov with quench HRC58-62°
1.14	Tolerance	10m+-1.5mm
1.15	Hydraulic station	4kw

Technological Process

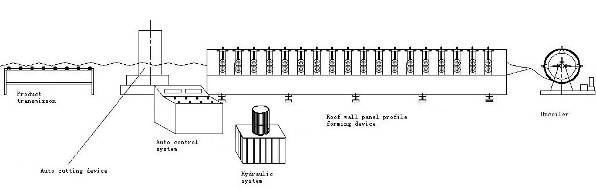

Uncoiling—Feedingwithguide—Roll forming—cutting—Products collecting

Machine List

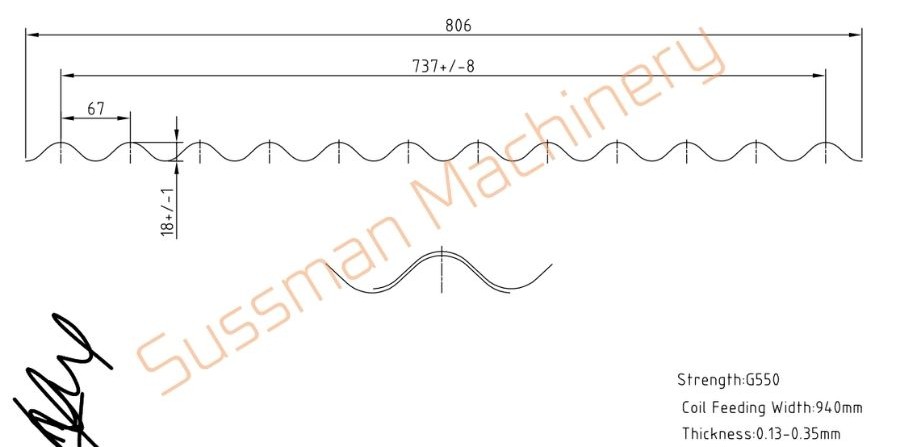

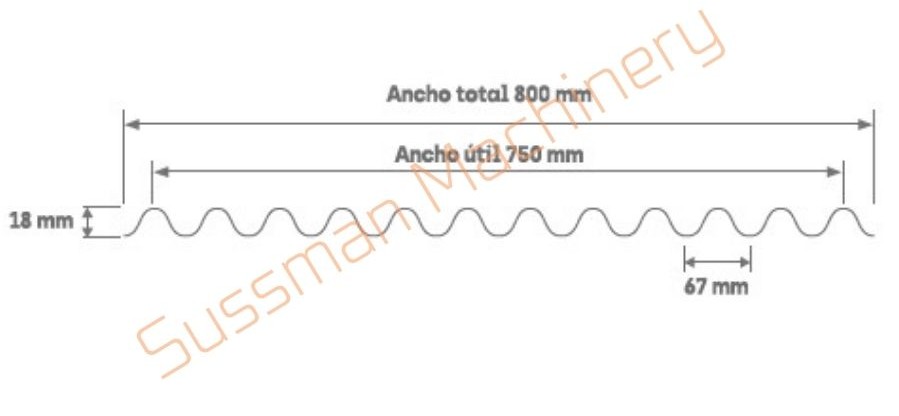

Profile drawing:

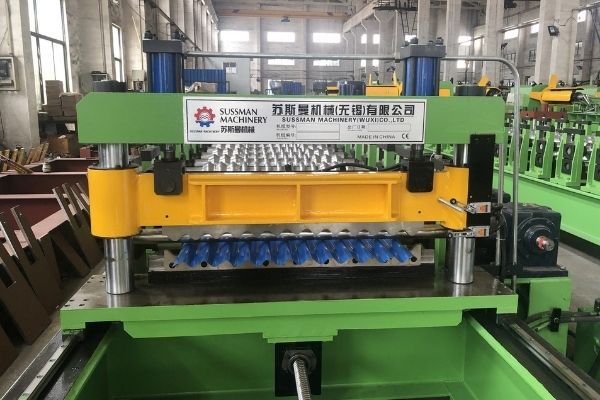

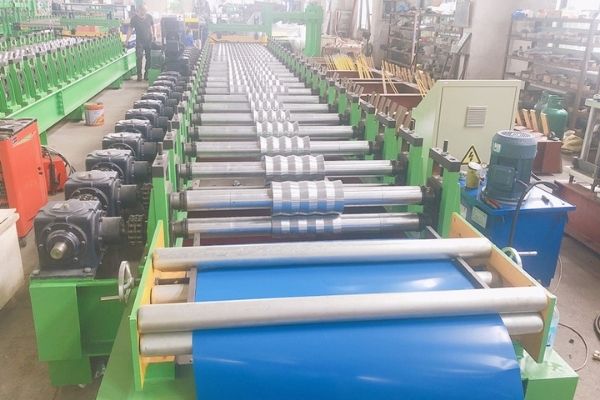

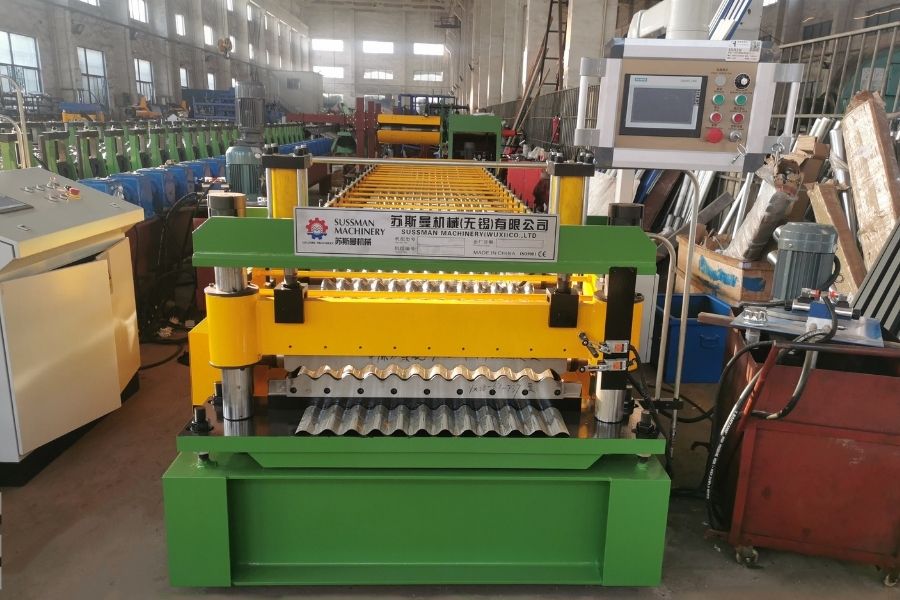

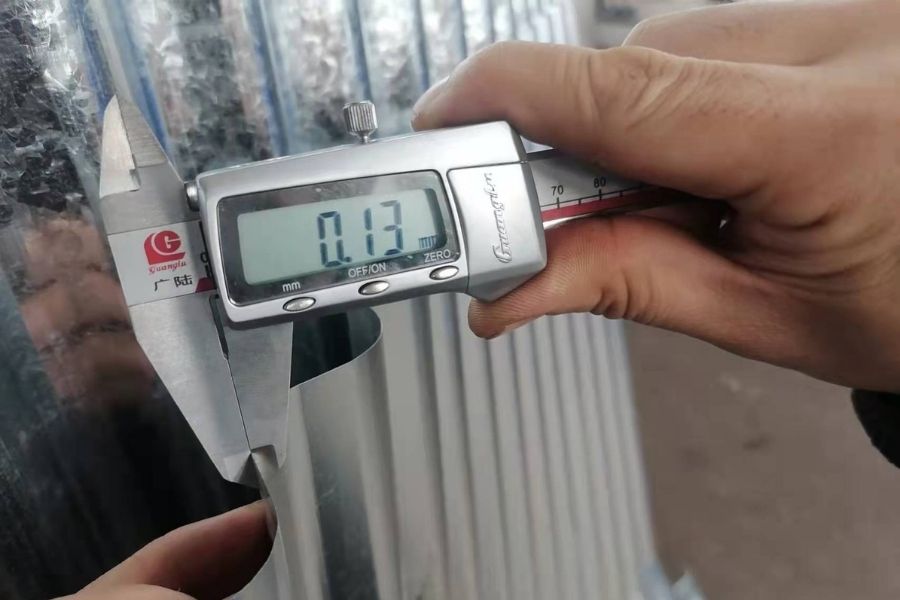

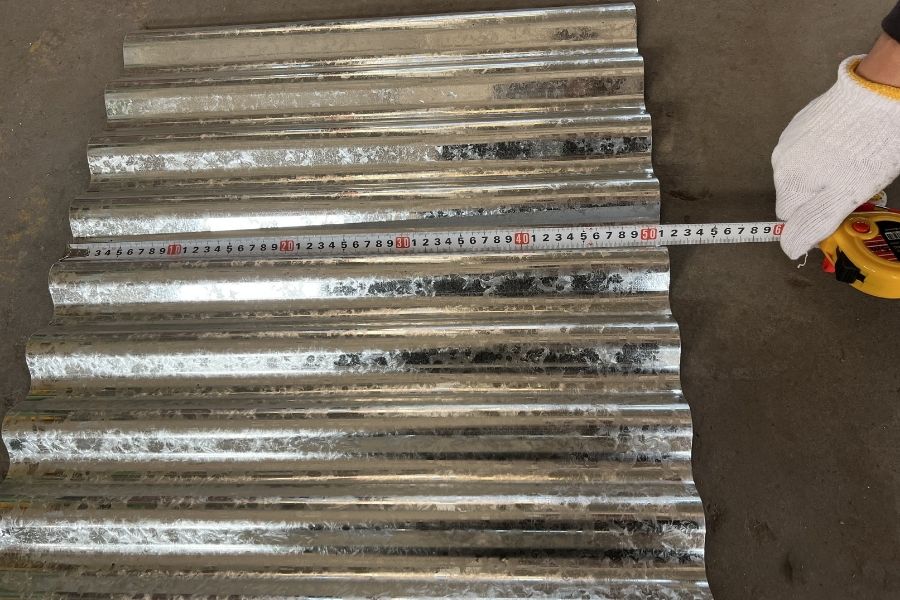

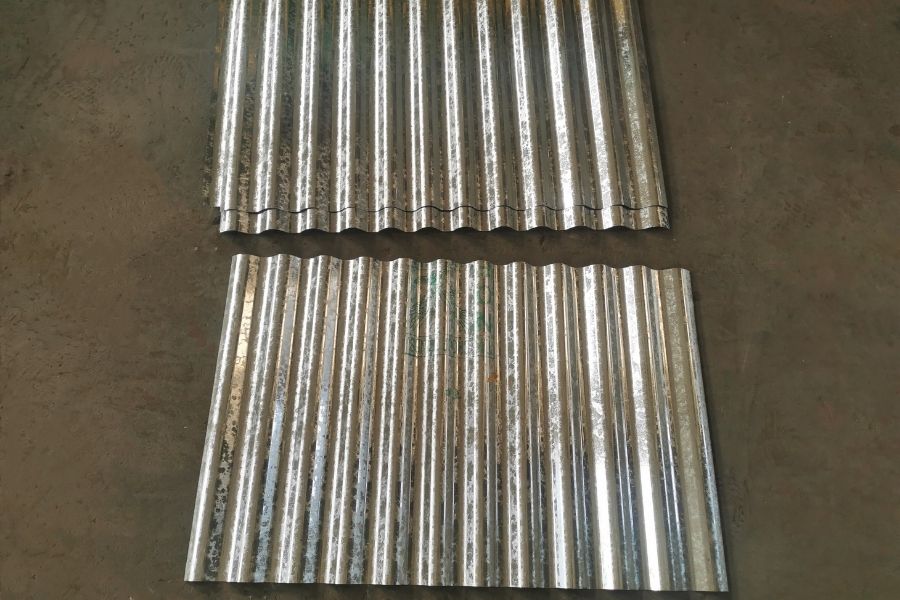

Machine Test Photos:

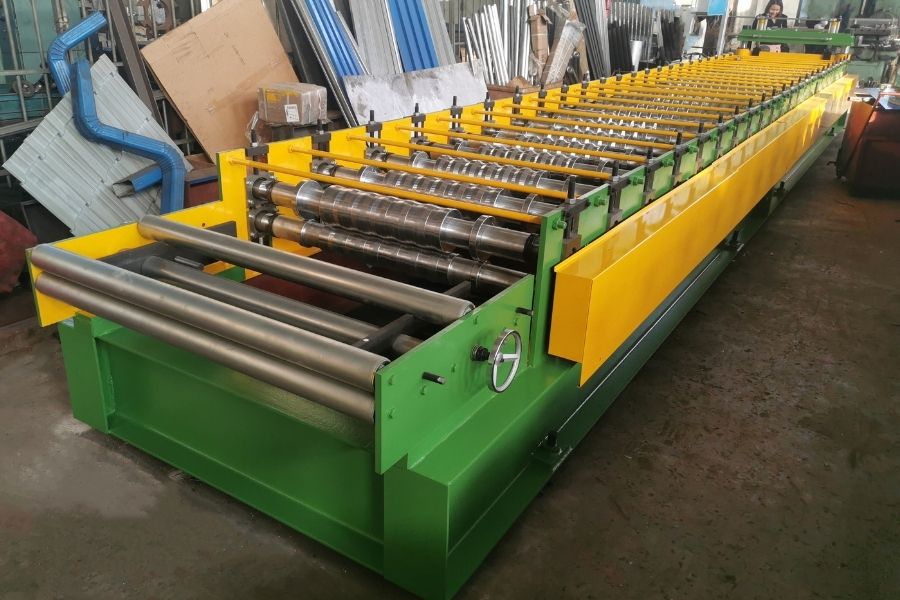

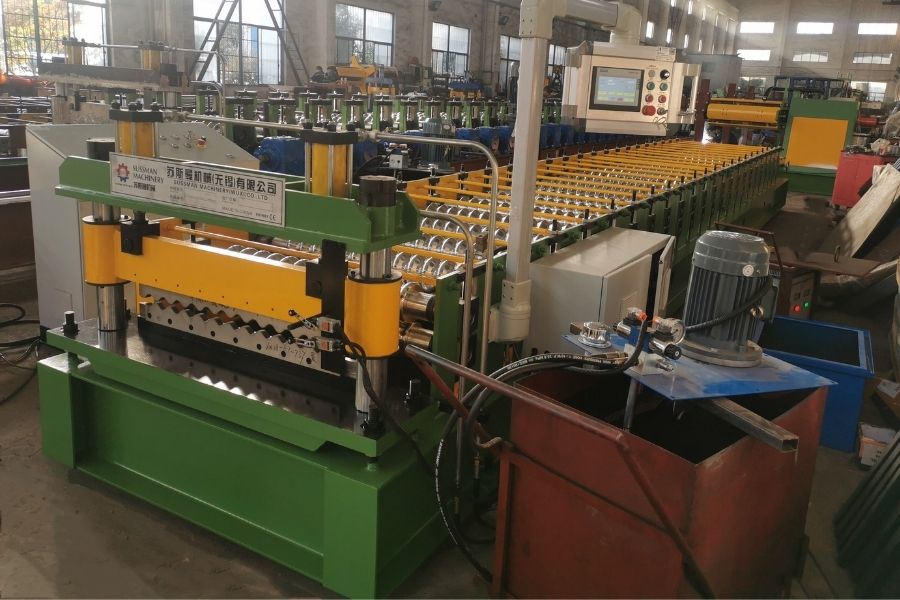

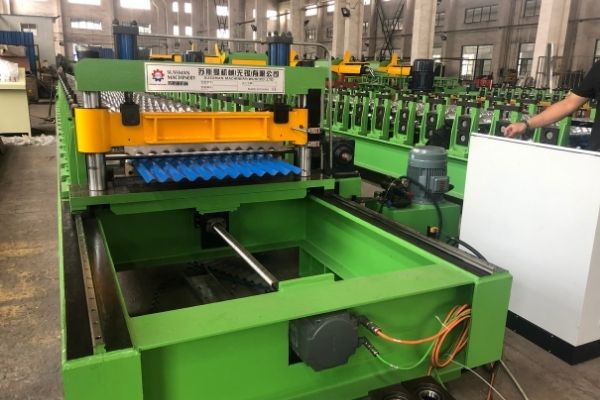

Machine Shows:

Details of the 40m/min Corrugated Roof Roll Forming Machine

Technical parameter

Rolling Speed: 0-40m/min

Feeding width: 1250mm

Steel sheet Thickness: 0.12-0.3 mm galvanized sheet, color painted coils Grade 37-40

Control System: PLC Siemens

Roller Stations: about 20 stations

Roller Material : 45# forge steel, coated with chrome

Shaft Material and DIA: ￠75mm,material is 45# forge steel, Chrome with quenching

Motor Power: 11kw main motor+3KW servo motor

Hydraulic power: 5.5kw

Hydraulic Pressure: 12Mpa

Tolerance: +1.5mm

Power supplier: 380V, 50HZ,3 phase

Way Of Drive: Gear Box

The size of the forming machine: 10500*1500*1200mm

Machine weight: about 12 tons

3. Technical process

Decoiler → feeding with guide →roll forming →servo following cutting →Conveying platform → auto stacker
